10
INTRODUCTION
IMPORT
ANT
PRECAUTIONS
ASSEMBL
Y
BEFORE
YOU
BEGIN
TREADMILL OPERA
TION
LIMITED
W
ARRANTY
TROUBLESHOOTING
&
MAINTENANCE
CONDITIONING
GUIDELINES

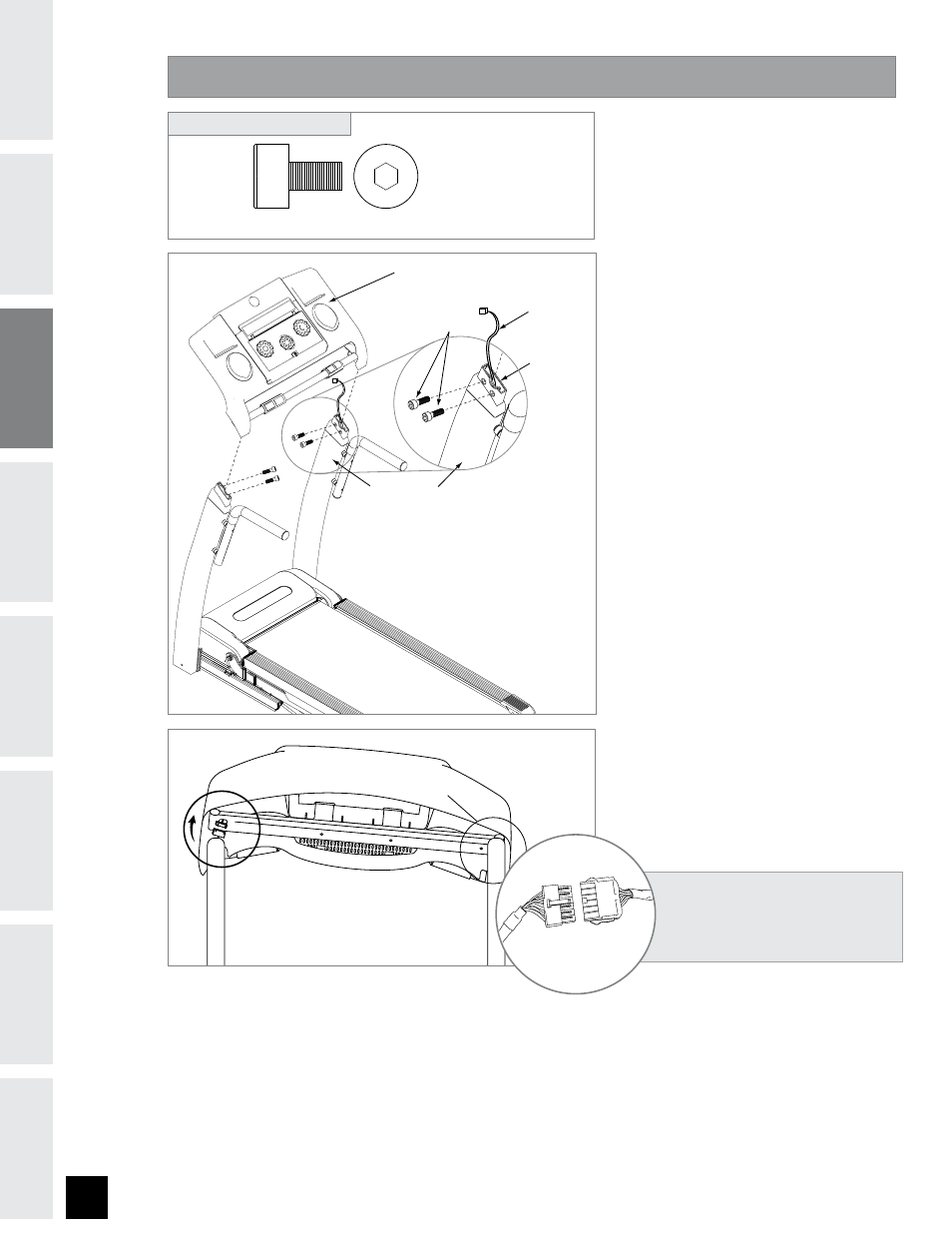

* NOTE: Be careful not to pinch any
wires while assembling the masts.
A) Open HARDWARE BAG .
B) Place the CONSOLE on
CONSOLE MASTS. Slide the
brackets that are underneath
the CONSOLE onto the brackets
in the top of the CONSOLE
MASTS. The CONSOLE brackets
fit inside the CONSOLE MAST
brackets.
C) Place 2 BOLTS (D) into side of
left CONSOLE MAST and lightly
tighten.
D) Gently lift right side of the
CONSOLE to connect the
CONSOLE CABLE. Carefully tuck
wires in mast to avoid damage.
*NOTE: Do not pinch console
cable. Be sure the console cable
prongs are aligned and the ends
are tightly seated into each
other.
E) Repeat step D above to secure
the console to the RIGHT
CONSOLE MAST.
F) Tighten all bolts completely.*
ASSEMBLY STEP
BOLT (D)
Qty: 4
top view
HARDWARE BAG CONTENTS :
BOLT (D)
CONSOLE MAST
MAST INSERT
CONSOLE
CONSOLE CABLE
ASSEMBLED IN STEP 4-D
