Husqvarna 265 ACX - Manual (Page 2)

35 cm / 14” 40 cm / 15”
10 cm / 4”
0 cm / 0”
2
2
3
1
2
3
4
5
6 7
Main menu
Commands
Timer Garden Settings

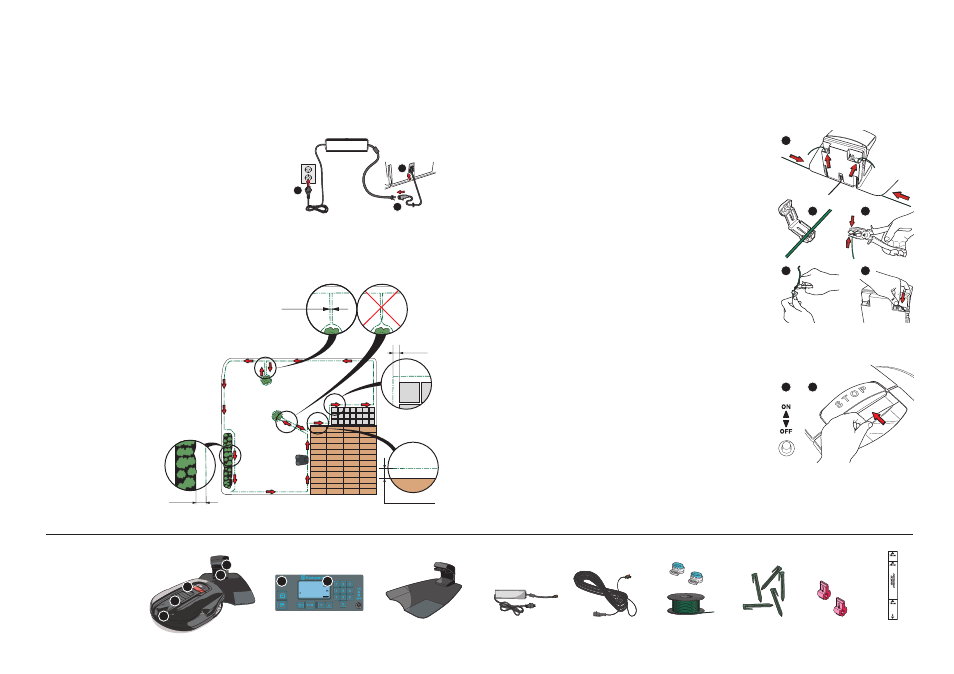

GETTING STARTED WITH
HUSQVARNA AUTOMOWER ®
3
1. Lift off the cover on the charging station and push in the
ends of the boundary wire in the lower holes of the
charging station and catch them in the upper holes:
• Right wire end in right hole.
• Left cable end in left hole.
2. Open the connector and run the wire ends in the recesses
on each connector.
3. Press the connector together using a pair of pliers.
4. Cut off any surplus boundary wire.
Cut 1-2 cm / 0.5” above the connector.
5. Press the connector onto the contact pin,
marked A, on the charging station.
Refit the cover on the charging station.
1
2
4
STARTING AND STOPPING AUTOMOWER ®
See chapters 3.7, 4.4 and 4.5 in the Operator’s Manual.
PLACEMENT AND CONNECTING THE CHARGING STATION
See chapter 3.2 in the Operator’s Manual
CHARGING THE BATTERY AND PLACING THE
BOUNDARY WIRE
See chapters 3.3 and 3.4 in the Operator’s Manual.
1. Place the charging station centrally in the work area,
leaving a lot of free space in front of the charging station
and on a relatively horizontal surface.
2. Connect the low voltage cable to the charging station and
transformer.
3. Connect the transformer’s power cord to a mains wall
socket. The 120V transformer (USA) is for indoor use only.
1. Place Automower ® in the charging station to
charge the battery while you are laying the
boundary wire. Set the main switch to
the OFF position.
2. Run the boundary wire ensuring it
forms a loop around the work area.
STARTING
1. Open the control panel cover by pressing the STOP button.
2. Set the main switch to ON position. When you do this for
the first time, a start up sequence starts where you select a
four digit PIN code among other things. The mower must
be in the charging station when you select a PIN code.
3. Close the cover.
STOPPING
Press the STOP button.
Charging station Transformer Low voltage cablel Boundary wire *
and coupler
Clinchers * Connector Measurement gauge
CONNECTING THE BOUNDARY WIRE
See chapter 3.5 in the Operator’s Manual
1
4 5
3 2
3 2
1. Charging strip
2. Catch button to open the cutting
height adjustment cover
3. STOP button
4. LED for performance inspection
of boundary wire
5. Contact strips
6. Keypad
7. Display
* Not included in package
