OM-944 Page 16 Return To Table Of Contents

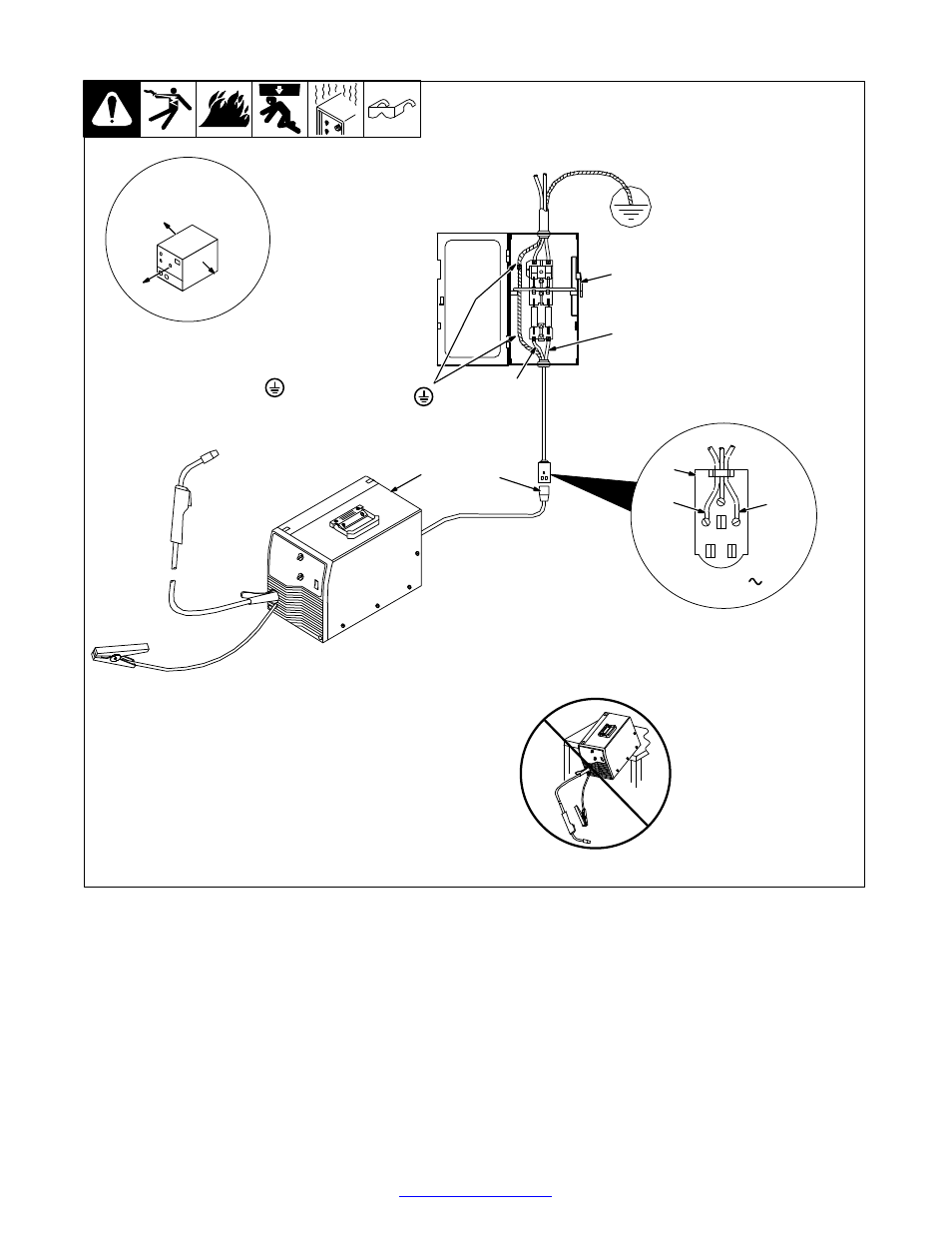

4-7. Selecting A Location And Connecting Input Power For 230 VAC Model
1 Rating Label
Supply correct input power.
2
Plug (NEMA 6-50P)
3 Receptacle (NEMA 6-50R)
Connect plug to receptacle.
4
Line Disconnect Device
See Section 4-8.
Y Special installation may be
required where gasoline or
volatile liquids are present −
see NEC Article 511 or CEC
Section 20.
ssb2.2* 1/94 − 802 443-A / Ref. 802 085
18 in (457 mm) of
space for airflow
L1 L2
2
230 VAC, 1
Y Always connect
grounding
conductor first.
= GND/PE
3
Y Do not move or operate unit
where it could tip.
L1
L2
4
1
