OM-944 Page 12 Return To Table Of Contents
SECTION 4 − INSTALLATION

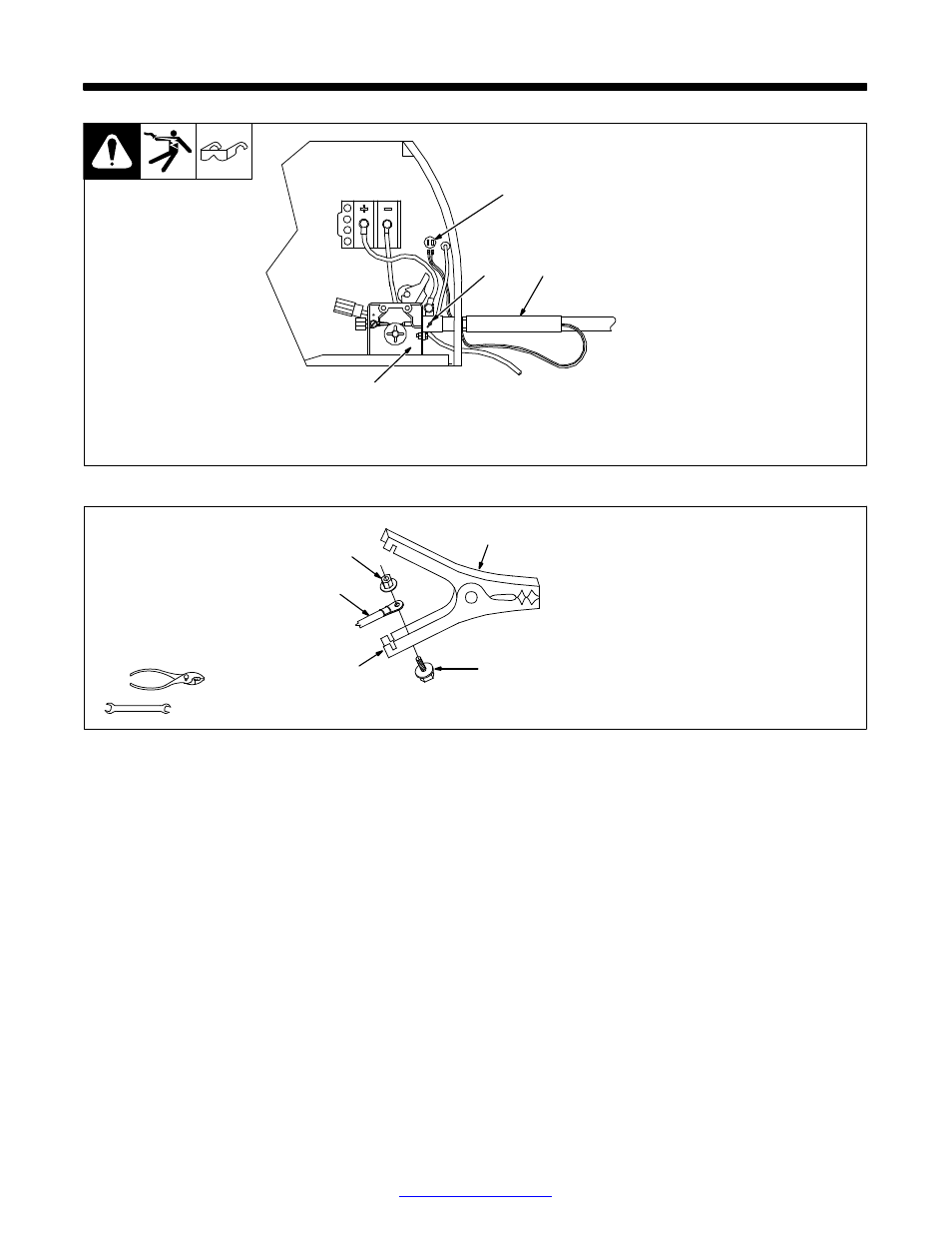

4-1. Installing Welding Gun
Ref. 802 440-A
1 Drive Assembly
2 Gun Securing Thumbscrew
3 Gun End
Loosen thumbscrew. Insert gun
end through opening until it bottoms
against drive assembly. Tighten
thumbscrew.
4
Gun Trigger Leads
Insert leads, one at a time, through
gun opening on front panel.
Connect female friction terminals to
matching male terminals in unit.
Polarity is not important.
Close door.
4
1
2 3
4-2. Installing Work Clamp
1 Nut
2 Work Cable From Unit
3 Work Clamp
4 Screw
5 Work Clamp Tabs
Bend tabs around work cable.
802 456
1
2
3
4 5
Tools Needed:
3/8, 7/16 in
