Hunter Fan 23489 - Manual

Hardware
(Drawn to Scale)
Fan Parts
(Not Drawn to Scale)

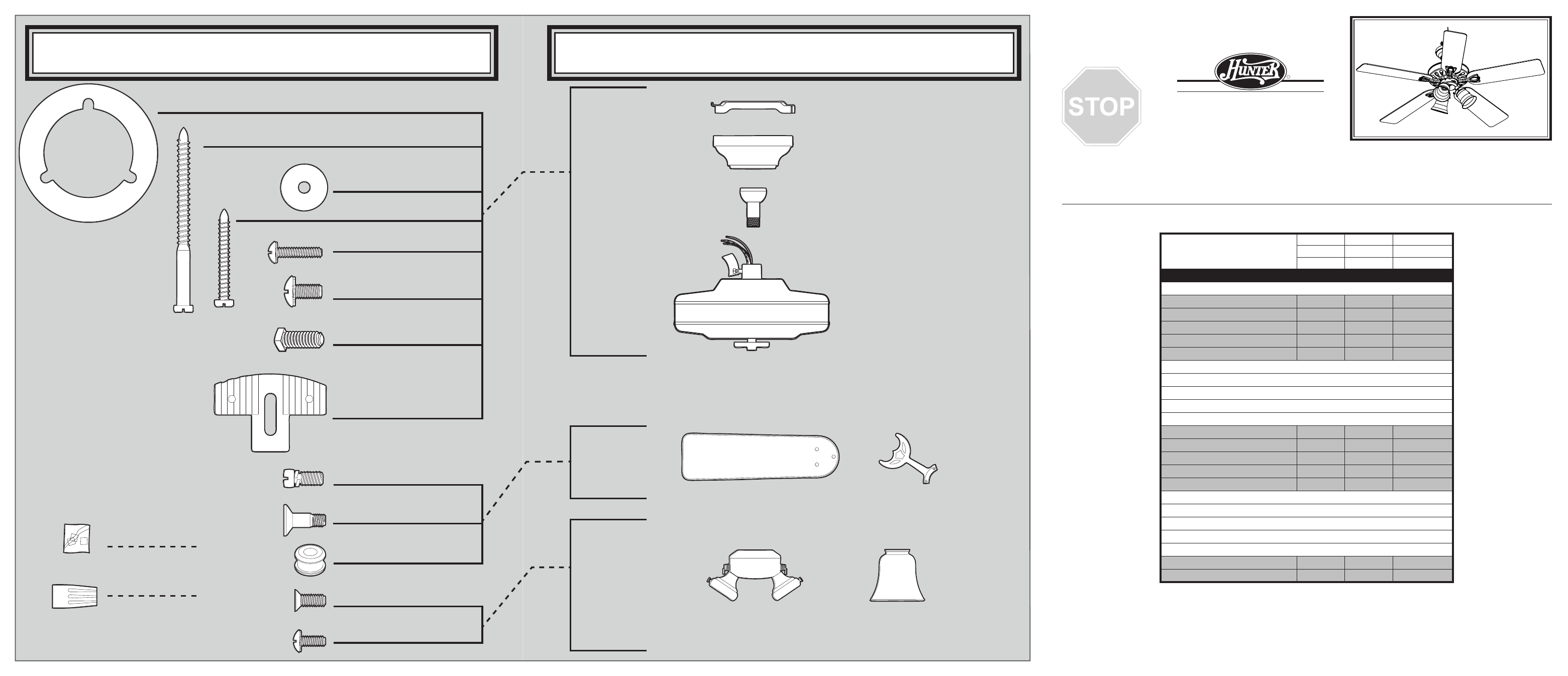

PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
R
SINCE 1886
Hunter Fan Company • 2500 Frisco Avenue • Memphis, TN 38114 • www.hunterfan.com • 98000-01-799 05-08-2008 •
©
2008
Parts List
Model # 23488 23489
Asm. Dwg. # 97696-01 97696-02
Finish New Bronze Antique Pewter
Item Name Qnty Part # Part #
* Hanging System Kit
Hanger Bracket Assembly 1 74090-02 74090-02
Hanger Ball / Downrod Assembly 1 74229-03 74229-03
Canopy 1 92697-01 92697-01
Low Profile Washer 1 73788-01 73788-01
Mounting Isolator 2 74135-01 74135-01
Setscrew
Canopy Screw
Wood Screw
Flat Washer
* Locking Screw
Switch/Housing Assembly 1 96946-30 96946-14
Blade Iron Set 1 93451-05 93451-05
Blade Set 1 75539-81 75539-64
Screw, Blade Iron Armature 11 63755-05 63755-05
Hardware Kit 1 97696-00-860 97696-00-861
Blade Grommet
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Screw, Switch Housing Assembly
Balancing Kit 1 07570-01 07570-01
Globe/Shade 3 84884-12 84884-07
Hanger
Bracket
Assembly
Blade
Assembly
Switch
Housing
Assembly
Locking Screw
Set Screw
Canopy Screw
Flat Washer
3” Wood Screw
Low Profile
Washer
Balancing
Kit
1.5” Wood Screw
Blade
Grommet
Screw, Blade
Assembly
Screw, Blade
Iron Armature
Screw,
Machine, 6-32
Screw, Switch
Housing Assembly
Wire
Connector
x 1
x 2
x 4
x 2
x 3
x 3
x 1
x 1
x 4
Mounting
Isolator
x 2
x 16
x 16
x 11
x 3
x 3
