OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set up
or use of this product.
Inspect tool before use, looking
for damaged, loose, and missing
parts. If any problems are found,
do not use tool until repaired.
Tool Set Up
TO PREVENT
SERIOUS INJURY:
Do not adjust or tamper with any
control or component in a way
not specifically explained within
this manual. Improper
adjustment can result in tool
failure or other serious hazards.
Work Piece and Work Area Set Up
1. Designate a work area that is clean and
well-lit. The work area must not allow
access by children or pets to prevent
distraction and injury.
2. Route the air hose along a safe route to
reach the work area without creating a
tripping hazard or exposing the air hose
to possible damage. The air hose must
be long enough to reach the work area
with enough extra length to allow free
movement while working.
General Assembly and Operating
Instructions
1. Set tool on a dry, flat, level surface.
2. To prevent accidents, turn the On/Off
Switch (25) to the “OFF” position.
3. Attach the quick coupler of coiled Air
Hose (59) to male connector at the end
of Rubber Hose (53).
4.

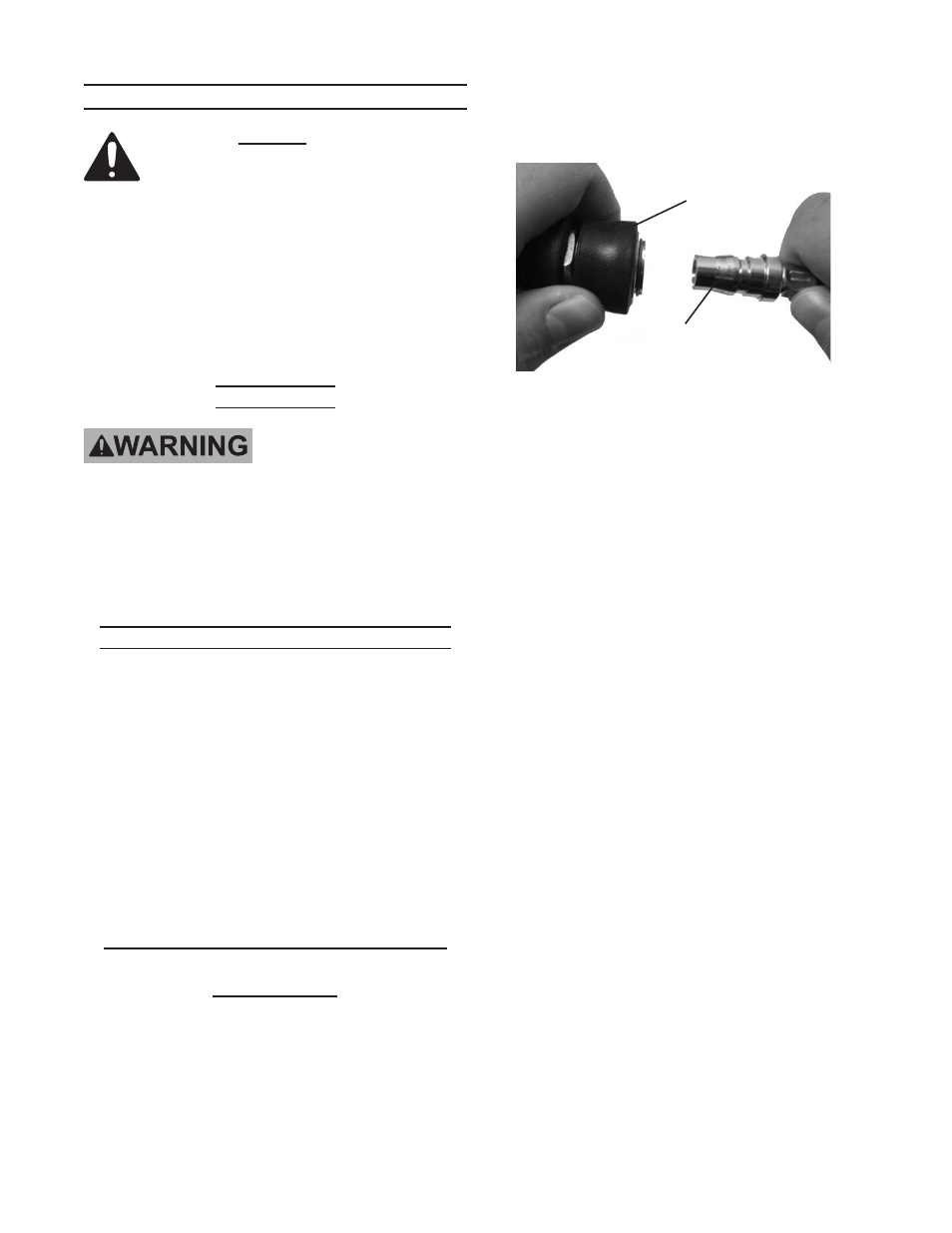

Fig. 1
Air House (59)
Coupler Collar
Male
Connector
Pull back on collar of Air Hose’s coupler.
Then firmly insert connector into coupler.
(See Figure 1.) Release collar, which
will snap connector in place. Pull lightly
on both hoses to ensure proper locking
in the coupler.
5. Attach the clamps on the Power Cord
(27) onto the 12V automotive battery (not
included) power source.
a. Connect RED clamp of the Compressor
to the positive (+) terminal of the battery.
b. Connect BLACK terminal of the Com-
pressor to a good ground source on the
engine block.
WARNING! Do NOT connect it to the
other battery terminal.
c. Note: The power source must not ex-
ceed 12V.
6. WARNING! Failure to follow the fol-
lowing steps can lead to a blown fuse.
7. Be sure the valve stem is clean and free
of dirt.
