12

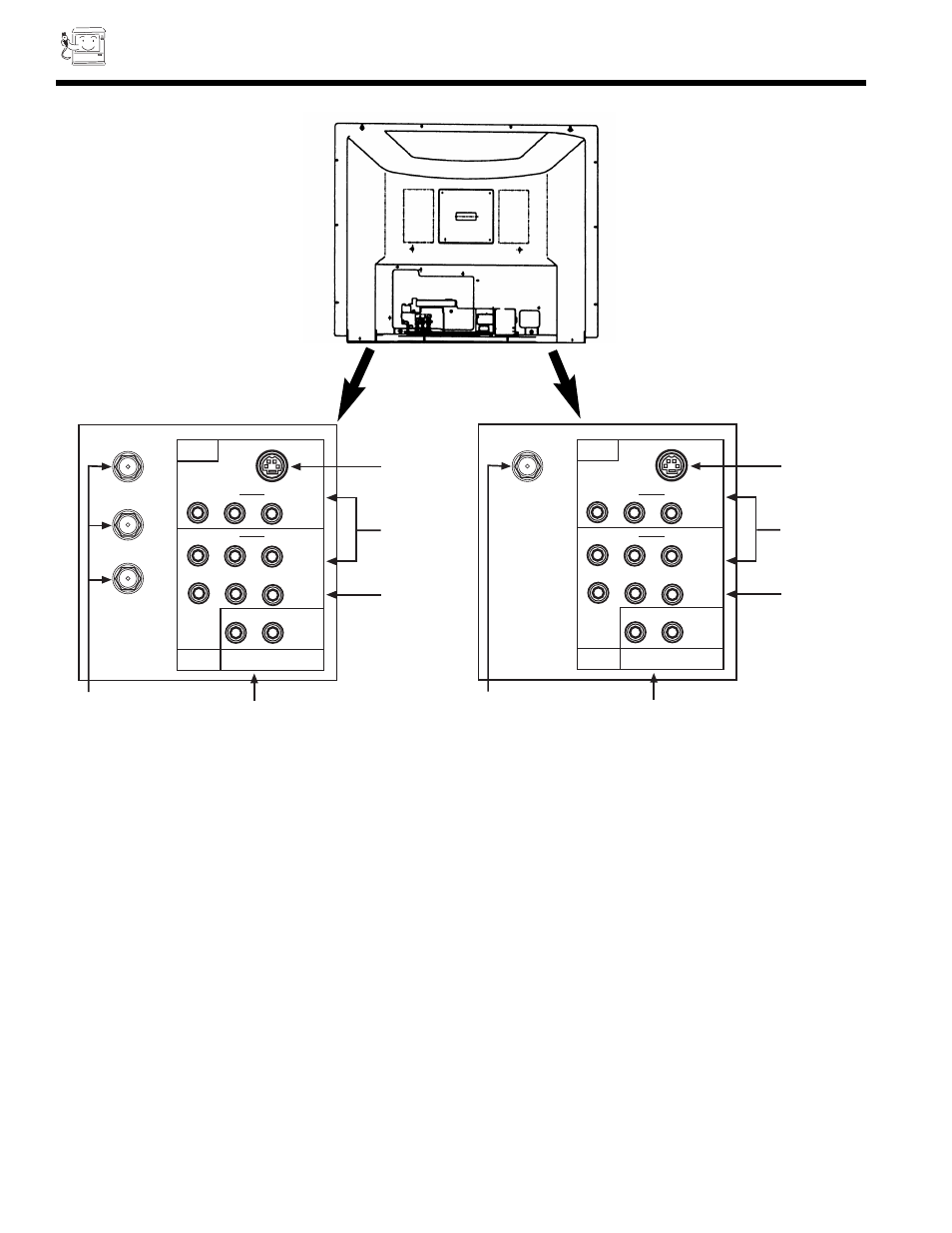

REAR PANEL JACKS
ᕄ
ᕅ
ᕆ
ᕇ
ᕃ
B R
ANT A
TO CONVERTER
ANT B
AUDIO
(MONO) L / R VIDEO
S-VIDEO
COMPO-
NENT
VIDEO
Y P P
AUDIO
(MONO) L / R VIDEO
L R
INPUT 1
AUDIO TO HI-FI INPUT 2
VHF/UHF
ANTENNA TERMINALS
AUDIO TO HI-FI
OUTPUT TERMINALS
Y-P
B
-P
R
INPUTS
INPUT
TERMINALS
S-VIDEO
INPUT
ᕄ
ᕅ
ᕆ
ᕇ
ᕃ
B R
VHF/UHF
ANTENNA TERMINAL
AUDIO TO HI-FI
OUTPUT TERMINALS
Y-P
B
-P
R
INPUTS
INPUT
TERMINALS
S-VIDEO
INPUT
VHF/UHF
AUDIO
(MONO) L / R VIDEO
S-VIDEO
COMPO-
NENT
VIDEO
Y P P
AUDIO
(MONO) L / R VIDEO
L R
INPUT 1
AUDIO TO HI-FI INPUT 2
ቢ
Antenna Inputs
32GX01B and 36GX01B models
The VHF/UHF terminal can be used for Normal TV, Cable TV (CATV), video games, etc.
32UX01S and 36UX01S models
The remote control allows you to switch between two separate 75-Ohm RF antenna inputs, ANT A and ANT B. ANT A input
can be displayed as a main picture or sub-picture. ANT B can only be displayed as a main picture. (ANT B cannot be displayed
as a sub-picture.) The antenna output labeled TO CONVERTER allows the ANT A connection to pass directly to a different
source such as a cable box.
ባ
Audio/Video Inputs 1, 2
The INPUT button will step through each video source and antenna source input each time it is pressed. Use the audio and
video inputs to connect external devices, such as VCRs, camcorders, laserdisc players, etc. (If you have mono sound, insert
the audio cable into the left channel jack.)
ቤ
Y-PBPR Input
This input provides Y-PBPR jacks for connecting equipment with this capability, such as a DVD Player. This input can
receive 480i signal only.
ብ
Audio to HI-FI
These jacks provide variable audio output to a separate stereo amplifier. With this connection, the audio to the stereo can be
controlled by the television s main volume. Use these jacks for the SURROUND Left and Right channels. (See page 19)
ቦ
S-Video
Inputs 1 provide S-Video (Super Video) jacks for connecting equipment with S-Video output capability.
REAR PANEL OF TELEVISION
32/36UX01S 32/36GX01B
