FRONT PANEL JACKS AND CONNECTIONS

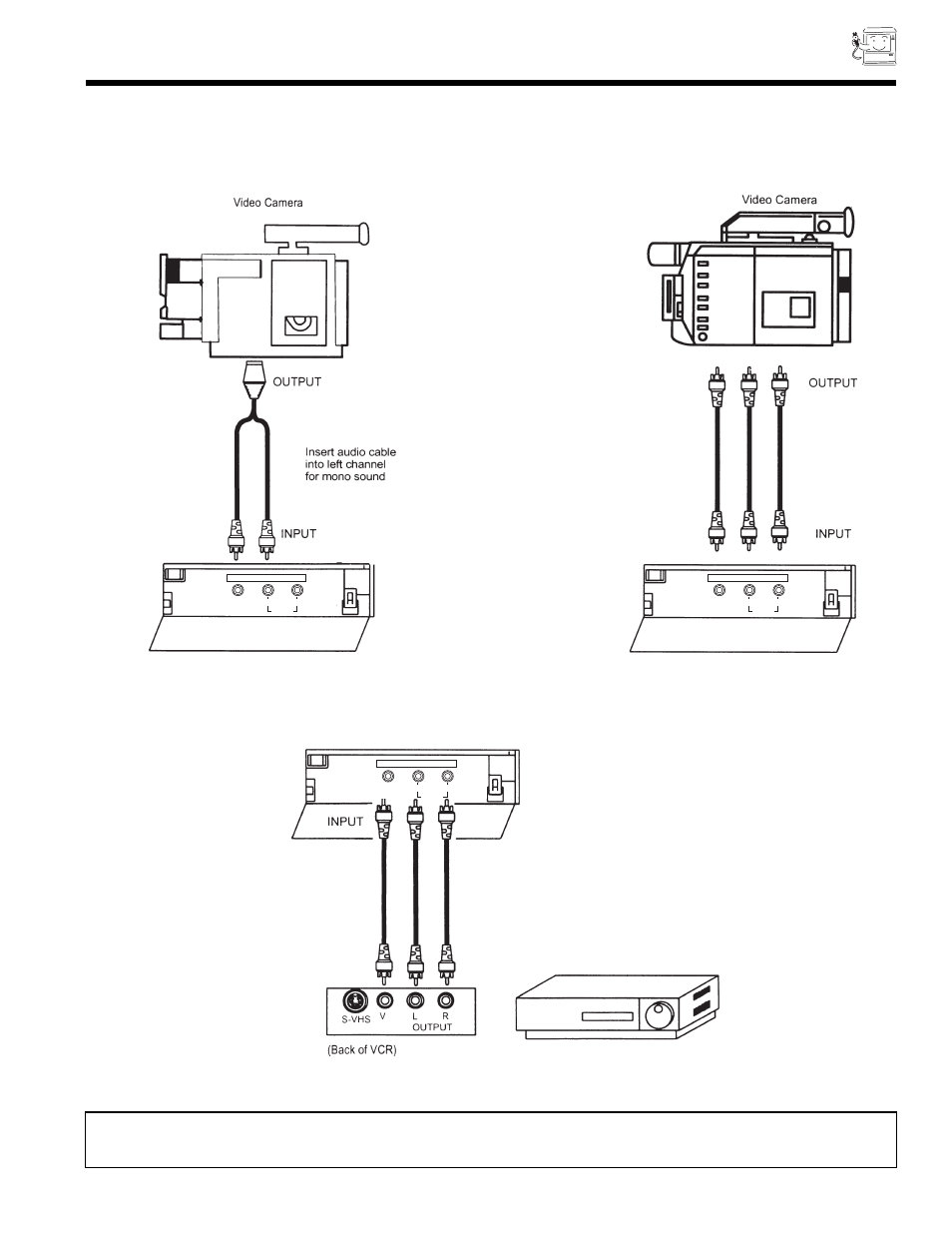

The front panel jacks are provided as a convenience to allow you to easily connect a camcorder or VCR as shown in the following
examples:
NOTE:
Completely insert connection cord plugs when connecting to front panel jacks. If you do not, the picture that is
played back may be abnormal.
