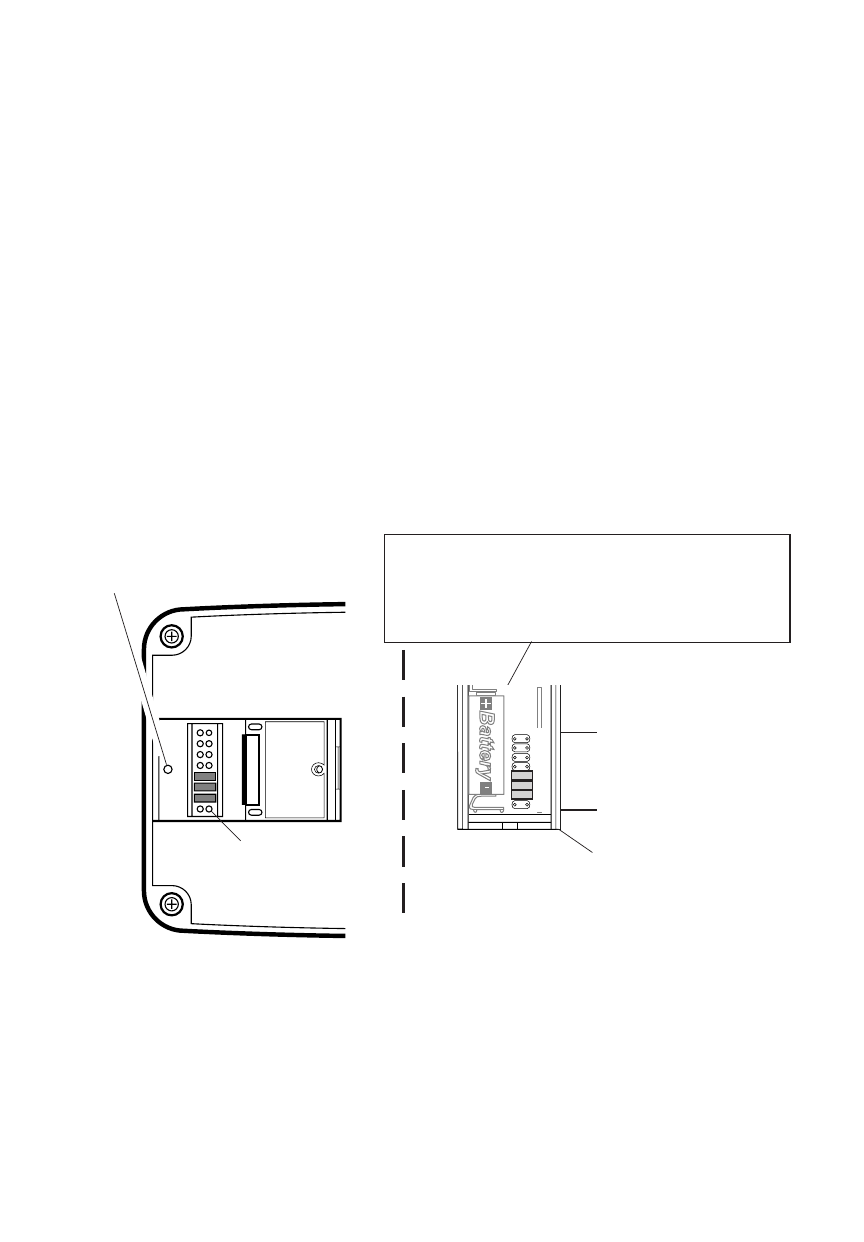

Transmitter Battery Replacement
Install an alkaline type A23 12 Volt bat-
tery. See diagram inside push button for
correct battery orientation.
* Code Settings 1-7
Must Match Both
Transmitter and
Chime
Remove screw to
open access door
Back of
Chime
Tune Setting Tune Setting
(Not used on
all models)
Note: Some models might re-
quire the use of tweezers to re-
move and replace the jumpers.
Tune Settings
Your Heath ® /Zenith wireless chime has different selectable tunes: Ding (one
note), Ding-Dong (two note), or Westminster (eight note) (Available on se-
lected Heath
® /Zenith chimes). The factory setting is for the Ding-Dong tune
(or Westminster, when available). This tune can be changed by following the
instructions below.
•
Ding (one note tune)
Transmitter: Add a jumper to location 8.
• Ding-Dong (two note tune)
Transmitter: Remove jumper from location 8.
Chime: Remove jumper from location 8.
• Westminster (Eight note tune) (Available on selected Heath ® /Zenith
chimes)
Transmitter: Remove jumper from location 8.
Chime: Add a jumper to location 8.
Note: All models have both front and back door tune capabilities. You may
purchase any Heath
® /Zenith wireless push button for a second entrance.
