External Equipment Connections
The TV has a special signal output capability which allows you to
hook up a second TV or monitor.

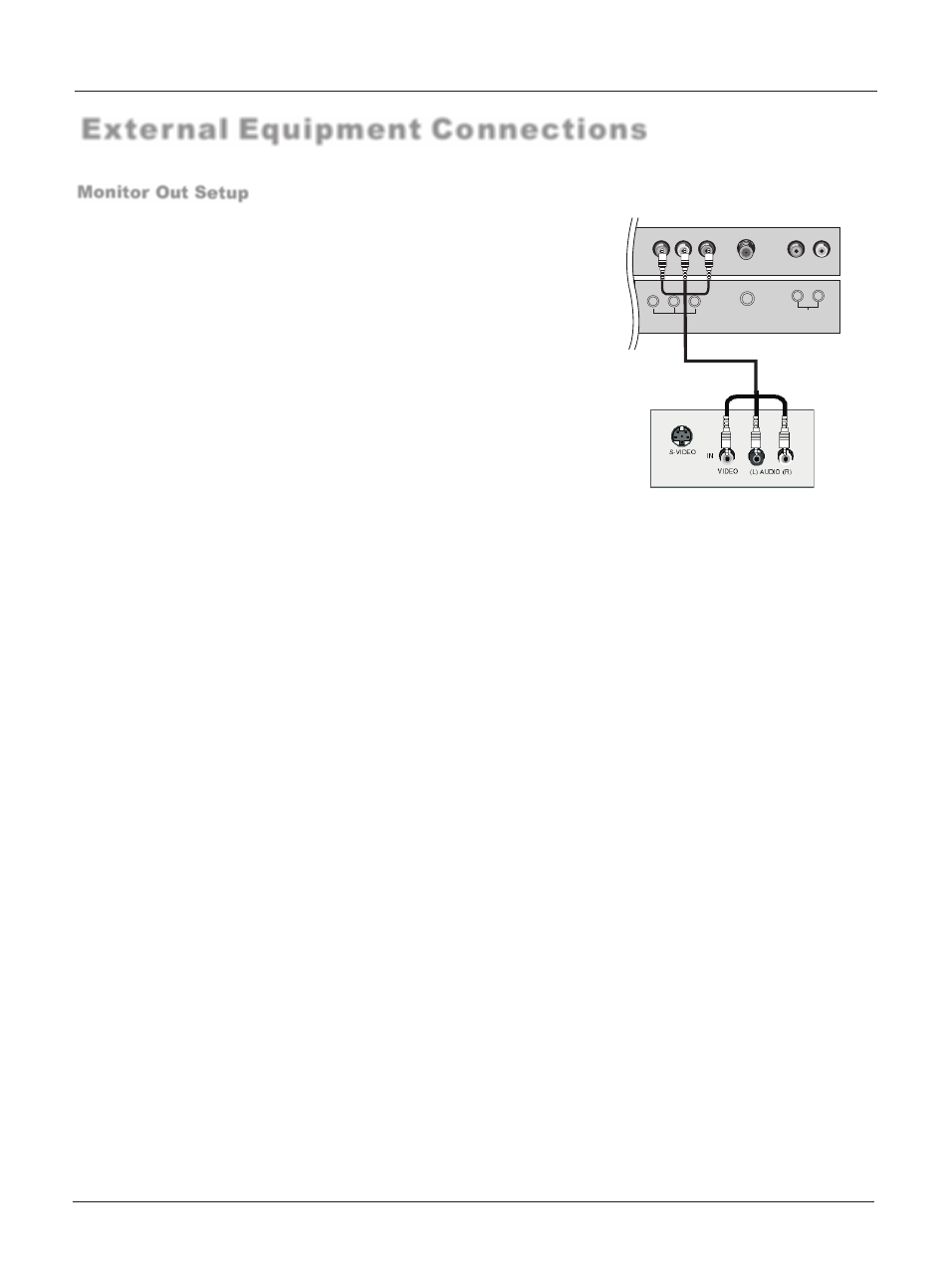

Connect the second TV or monitor to the TV`s AV
.
See the Operating Manual of the second TV or monitor for further
details regarding that device`s input settings.
Notes:
YPbPr, VGA, HDMI,DTV input sources
cannot be used for Monitor out.
When connecting with external audio equipments, such as amplifers
or speakers, please turn the TV speakers off.
We recommend to use the video and audio output jacks for VCR
recording.
OUT
Monitor Out Setup
AUDIO OUT
L
R
R
L
V
AV OUT
R INPUT
F
Installation
14 TFT-LCD TV
