VCR connection
NOTE: All cables shown are not included with the TV.
There are several ways to connect your television, depending on the components you want to connect
and the quality of the signal you want to achieve. The following are examples of some ways to connect
your TV. Choose the connection which is best for you.
External Equipment Connections
Choose Your Connection
Note:
Do not connect to both Video and
S-Video at the same time.
- To avoid picture noise (interference), leave an adequate distance between the VCR and TV

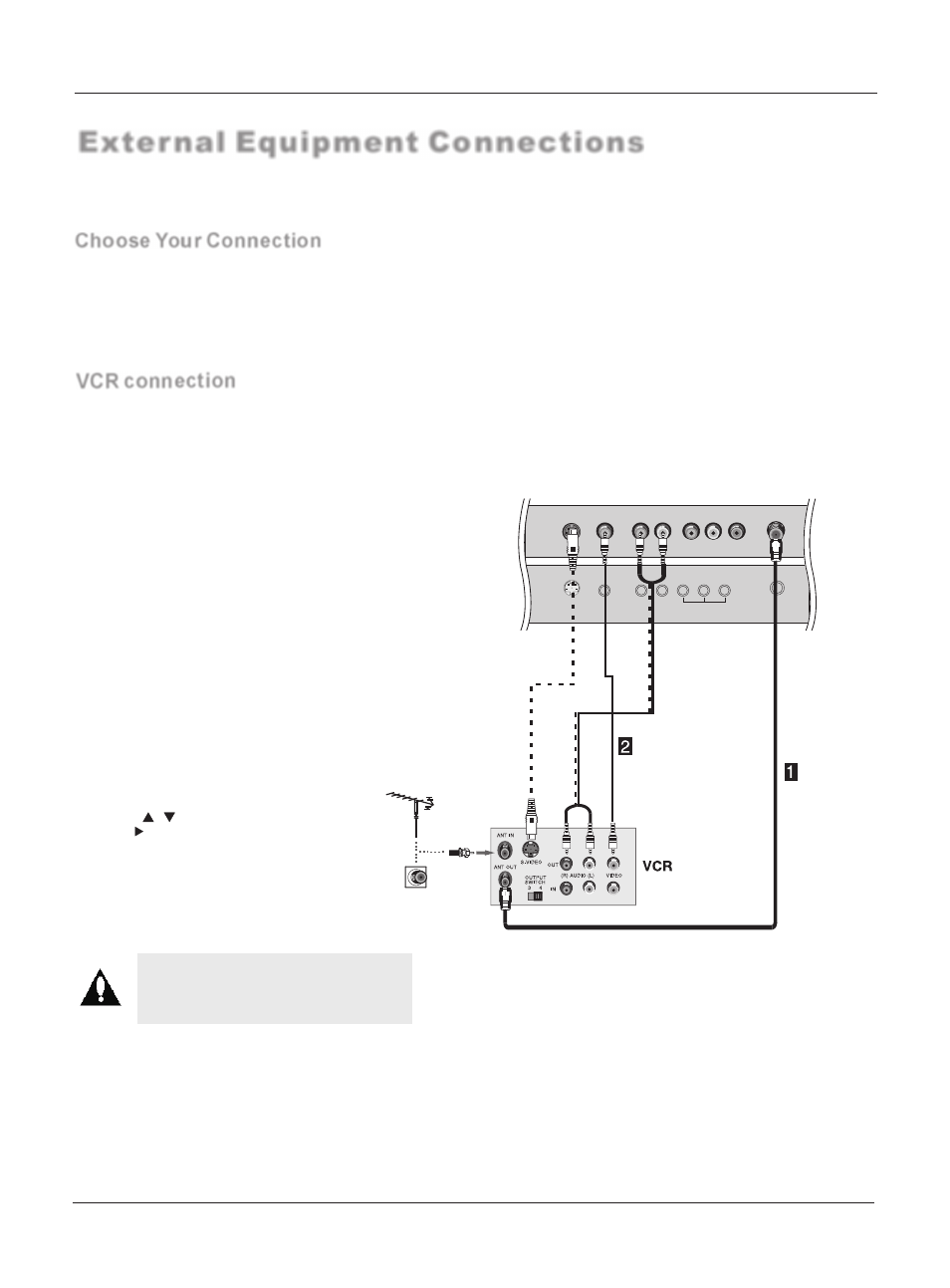

Connection Option 1
Set VCR output switch to channel 3 or 4 and
then tune the TV to the same channel number.
Connection Option 2
1 . Connect the audio and video cables from the
VCR's output jacks to the TV input jacks, as
shown in the figure.
When connecting the TV to VCR, match the
jack colors (Video = yellow, Audio Left = white,
and Audio Right = red).
If you connect an S-VIDEO output from VCR to
the S-VIDEO input, the picture quality is
improved; compared to connecting a regular
VCR to the Video input.
2 . Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner`s
manual.)
3 . Select the input source with using the
INPUT button on the remote control, and
then press / button to select the source,
press the button to confirm.
S-Video
CVBS
S-Video/CVBS
Audio In
L R R L V
AV OUT
R INPUT F
