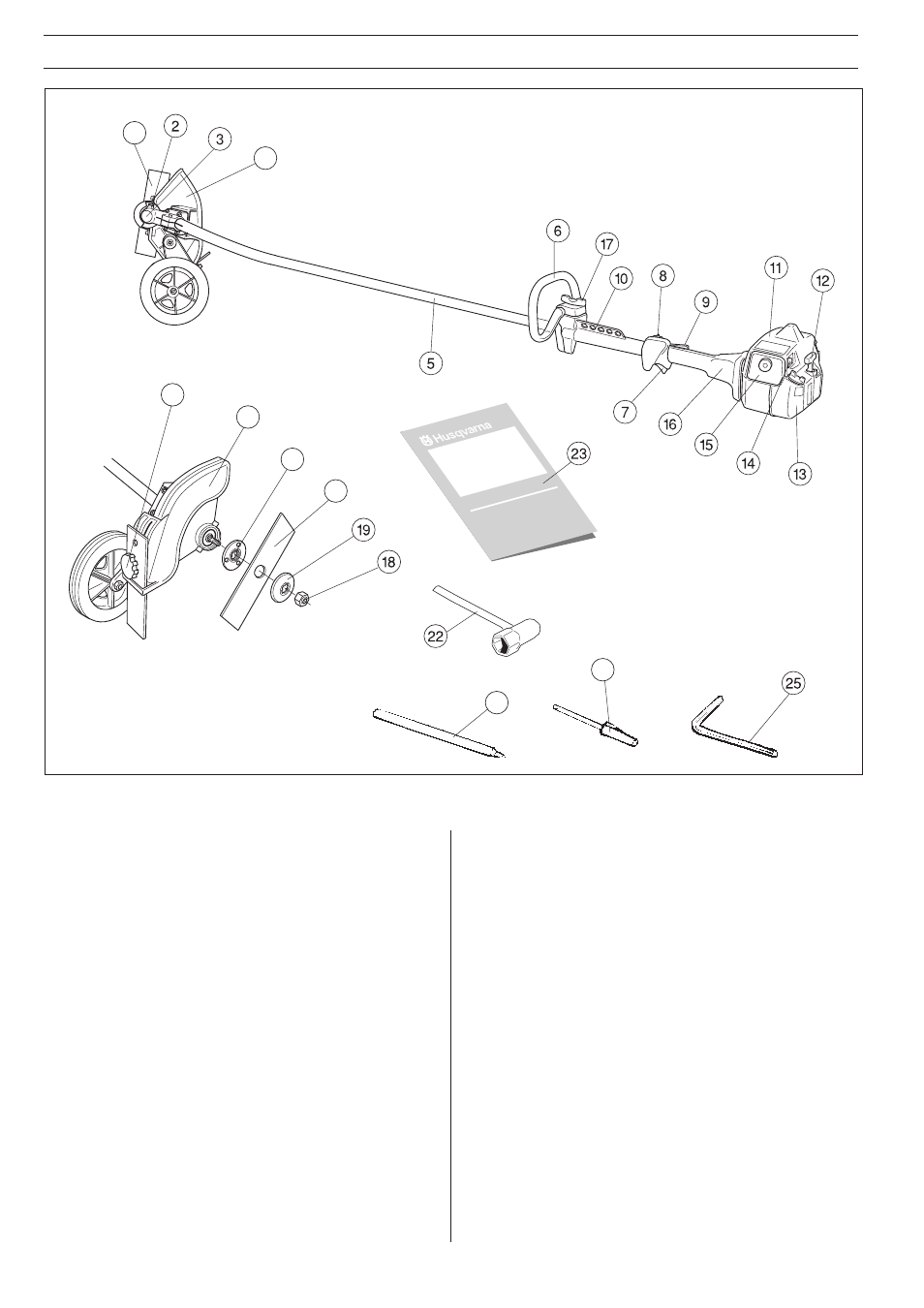

What is what on the edger?
1. Blade
2. Grease filler cap
3. Angle gear
4. Blade guard
5. Shaft
6. Loop handlebar
7. Throttle
8. Stop switch
9. Throttle trigger lock
10. Suspension for harness
11. Cylinder cover
12. Starter handle
13. Fuel tank
14. Choke
15. Air filter cover
16. Clutch cover
17. Handlebar adjustment
18. Locking nut
19. Support flange
20. Drive disc
21 Locking handle
22. Socket spanner
23. Operator‘s Manual
24. Locking pin
25. Allen key
26. Carburetor screwdriver
