For technical questions, please call 1-800-444-3353.

SKU 68240

Operating Instructions

Read the ENTIRE IMPORTANT SAFETY

INFORMATION section at the beginning

of this manual including all text

under subheadings therein before

set up or use of this product.

Tool Set Up

TO PREVENT SERIOUS INJURY FROM

ACCIDENTAL OPERATION:

Unlock and release the Trigger and disconnect Battery

Pack before adjusting tool or installing accessories.

Charging

1. Place the Battery Pack on a dry fireproof surface in

a room where the temperature is from 50–104° F.

Note: If recharging a newly spent Battery Pack, allow it to

cool completely before charging.

Make sure the Battery Pack is undamaged; do

not charge a cracked or leaking battery pack.

2. Disconnect the Cord from the Battery Charger. Attach

the Adapter plug to a grounded, 120 V~, 60 Hz outlet.

3. Plug the Charger into the power supply and

the

green charging light will activate, showing

that power is supplied to the Charger.

4. Slide the Battery Pack onto the Charger’s base.

The

red charging indicator light will activate

to show that charging is taking place.

Note: The Battery Pack’s capacity will increase

somewhat during the first few charging cycles. A fully

discharged battery will take about 3 to 5 hours to fully

charge.

CAUTION! Recharging the Battery Pack for

more than 5 hours can damage the battery cells.

5. While charging, the Battery Pack and Charger,

and Adapter may become warm to the touch. This

is normal, and does not indicate a problem.

6. Unplug the Charger and disconnect it from

the Battery Pack when finished.

7. Allow the Battery Pack to cool

completely before using it.

8. Press the Battery Button to release Battery Pack from

the Charger (or when removing it from the Saw).

9. Store the Charger and Battery Pack indoors, out

of reach of children.

WARNING! Do NOT use a

different Charger or Battery to power this Saw.

General Operating Instructions

TO PREVENT SERIOUS INJURY FROM

ACCIDENTAL OPERATION:

Always make sure the Trigger Switch of the Cordless

Reciprocating Saw is in its “OFF” position, the Battery

Pack is disconnected prior to making any adjustments

to the tool.

DO NOT install the Battery Pack until

AFTER you complete the following

steps to set up the Saw for use.

• Refer to page 6 for the location of the parts

of the Saw for the following steps.

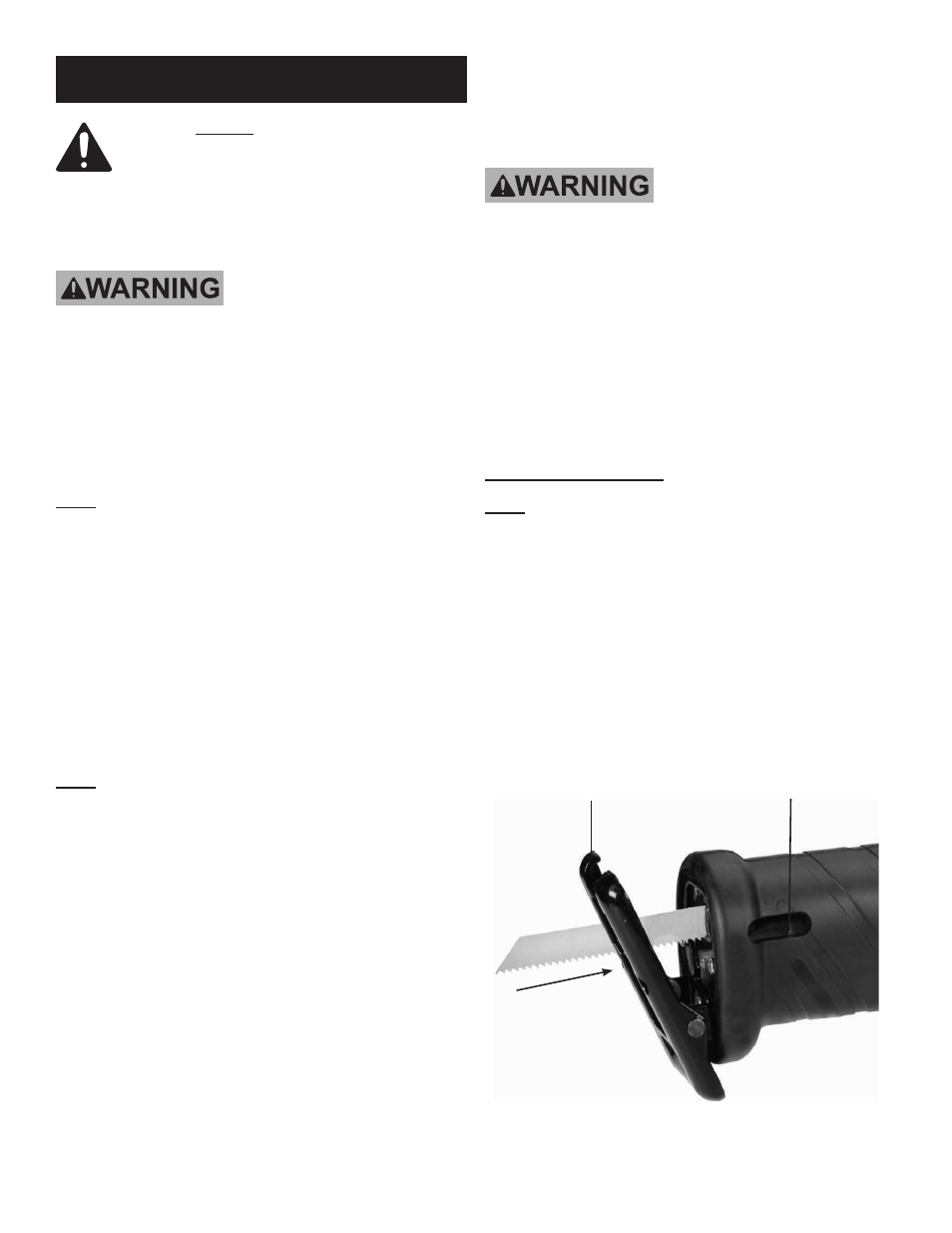

Installing the Saw Blade

Note: Use only proper blades, otherwise the

blade will not lock into the blade holder.

1. Choose the correct Saw Blade (Wood or

Metal) for the material being cut.

2. Use the included Hex Wrench to loosen the Blade

Clamp Screw located on the side of the Blade Holder.

3. Slide the Blade’s mounting edge into the Blade Plate

and into the Blade Holder until it slides all the way in.

4. Use the Hex Screw to tighten the Blade Clamp Screw

until blade is fastened securely into place.

Blade Cover

Blade Set

Screw

Blade Clamp

Screw

Blade Plate
