8
Important: The relative spacing between the oil tank, the Dripmaster, and the line-shaft inlet should be
according to Figure 2. In order to maintain minimal oil pressure on the needle valve
(especially when the oil tank is almost empty), the oil inlet should be in the range of 10 to 14
inches below the oil tank.
10 to 14 inches
(25.4 to 35.6 cm)
1/4-inch
(0.635 cm)
copper pipe
Oil filter
Oil tank
1/4-inch flexible
copper tubing
Lineshaft

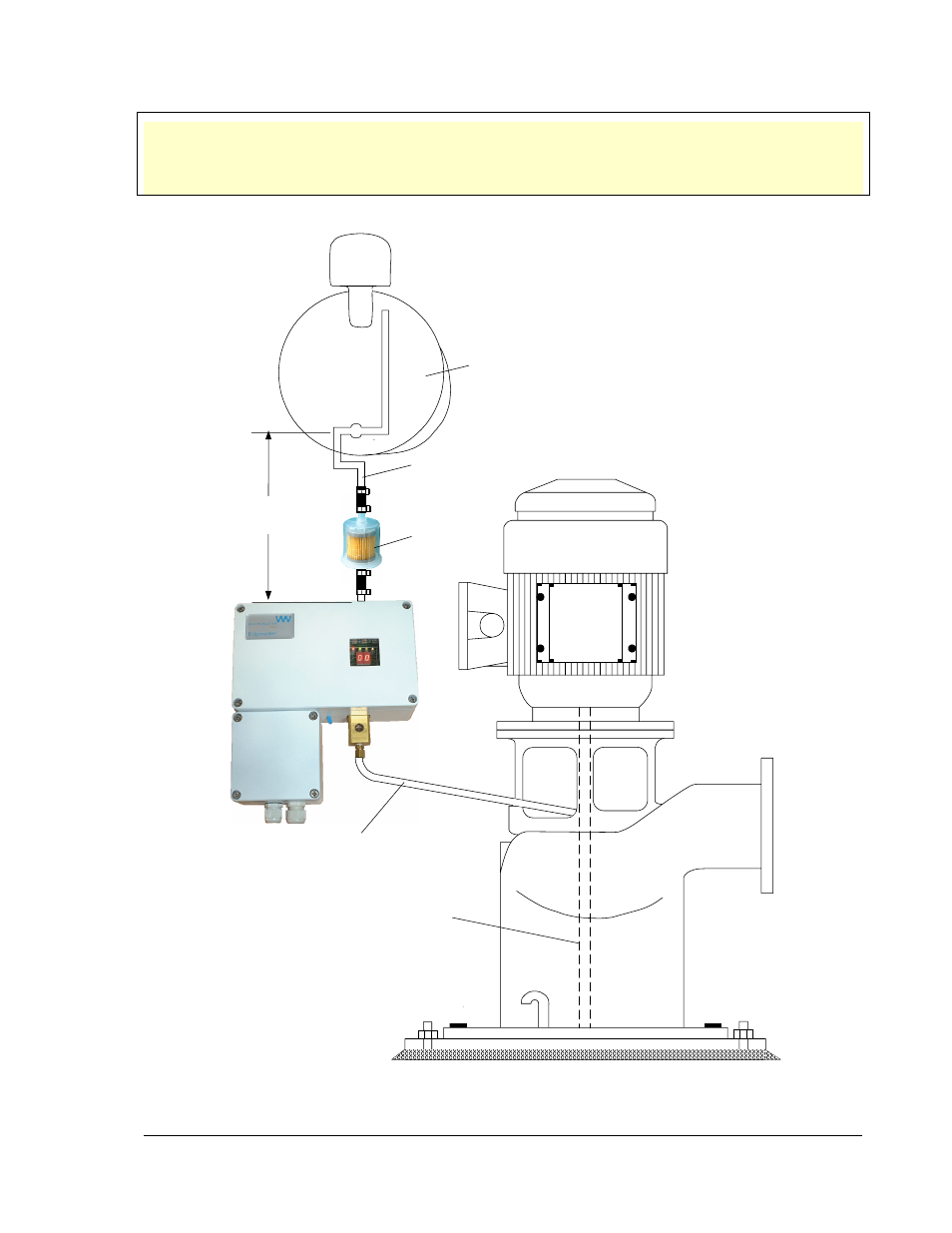

Figure 2: Installation requirements
