MODEL CODE 533A
Engine Briggs & Stratton IC
Engine Type 12G 802 2610 B1
Engine / Cutterblade Speed 3000 rpm
Fuel Type Unleaded Petrol
Fuel Capacity 1.5 litres
Oil Type SAE 30 engine oil
Oil Sump Capacity 0.6 litres
Spark Plug 802592E
Spark Plug Gap 0.76mm
Width of Cut 560mm
Height of Cut 28 - 90mm
Overall Dimensions 1100 x 585 x 1410mm
Dry Weight 45 Kg

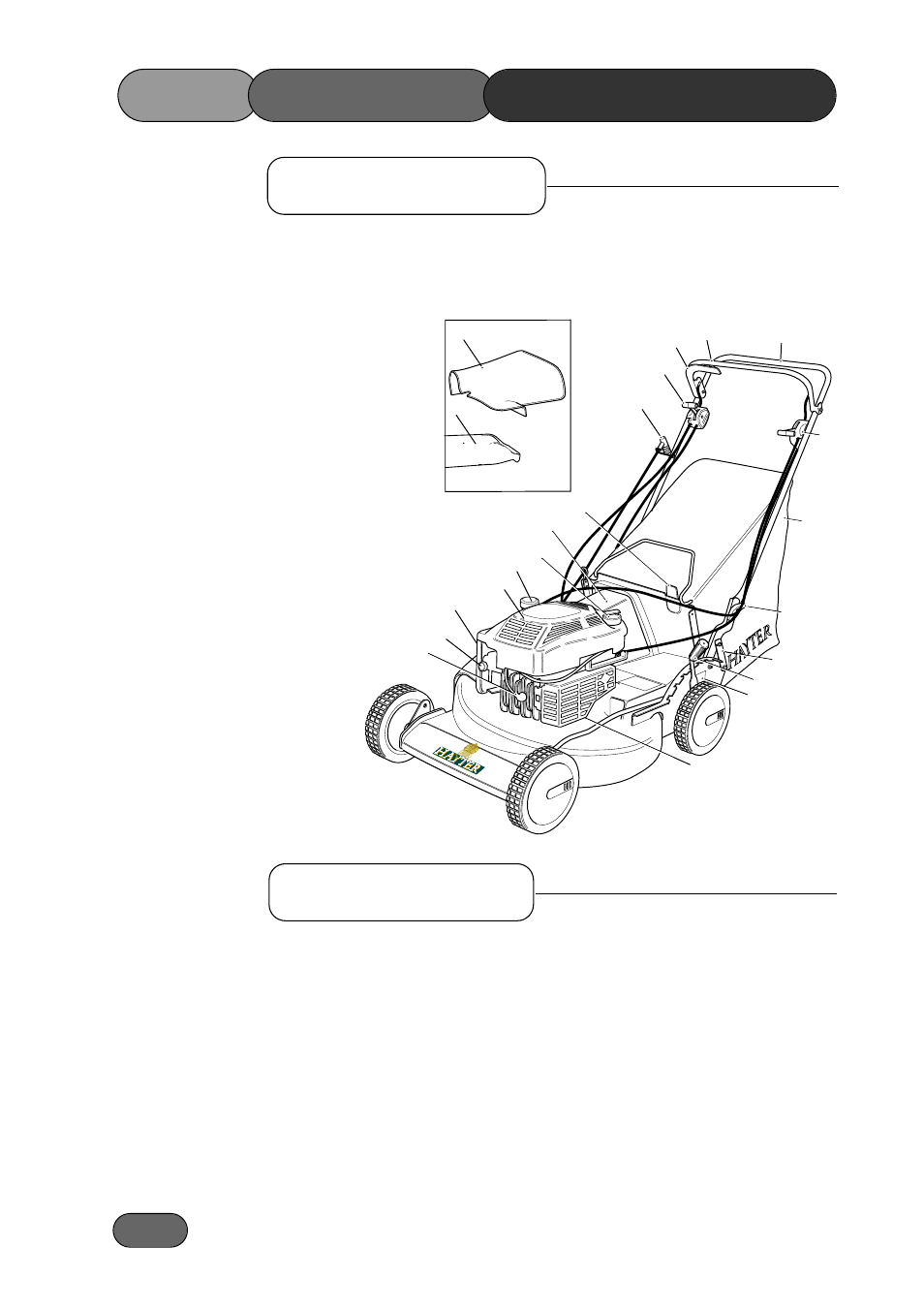

1. Spark Plug Lead
2. Primer Button
3. Air Cleaner Cover
4. Engine Cover
5. Fuel Cap
6. Oil Filler Cap & Dipstick
7. Rear Dicharge - Chute
8. Rear Door Handle
9. Engine Start Grip
10. Ground Speed Lever
11. Ground Drive Clutch Lever
12. Engine Brake Lever
13. Handlebar
14. Throttle Control
15. Grassbag Assembly
16. Handlebar Securing Knobs
17. Handlebar Height Adjust Strap
18. Height of Cut Lever
19. Serial Number Label
20. Exhaust Guard
21. Plug - Mulcher
22. Side Discharge - Chute
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
16
17
18
19
20
21
22
1.1
Main Features
Specifications
MAIN FEATURES /SPECIFICATIONS
