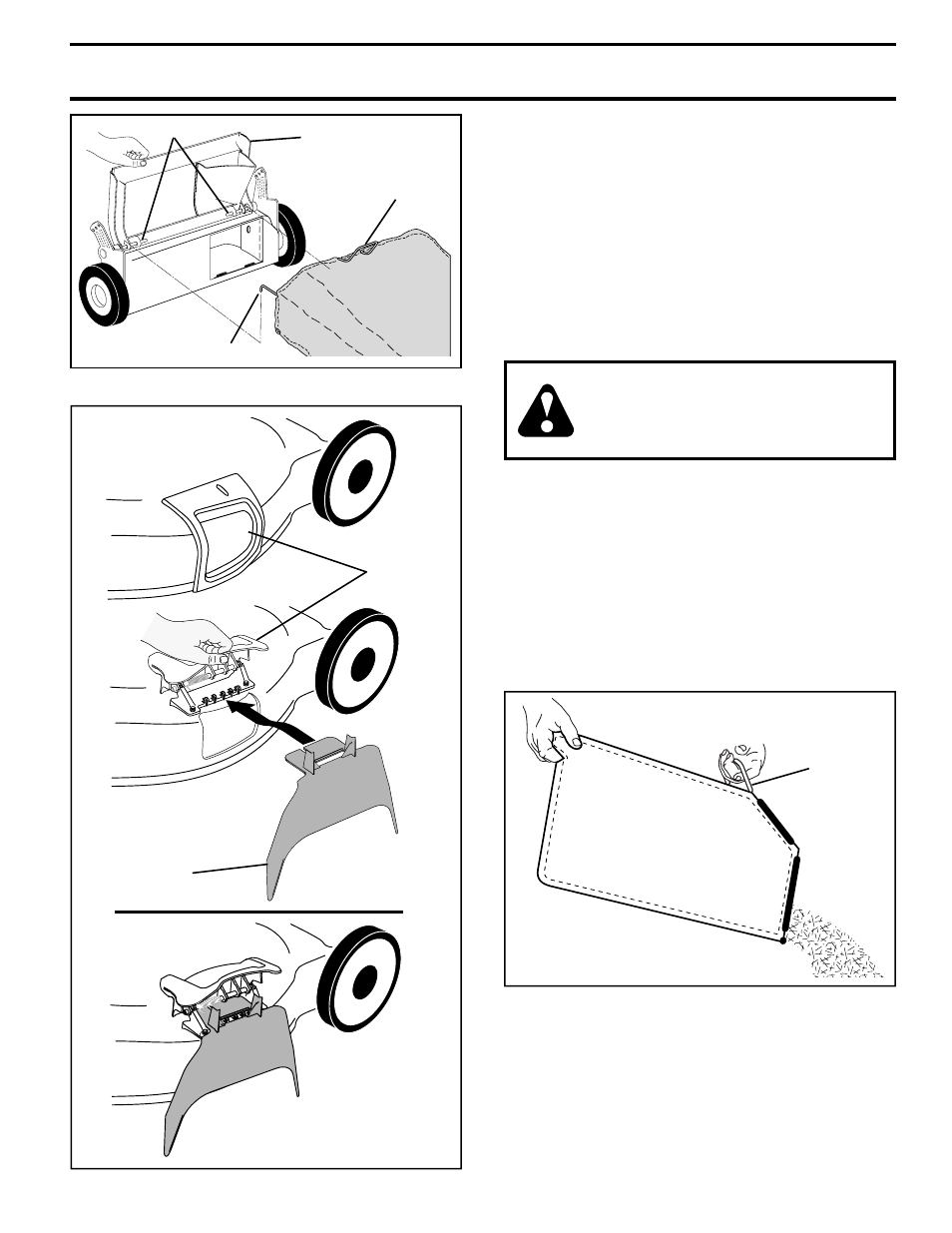

7

OPERATION

TO EMPTY GRASS CATCHER (See Fig. 7)

1. Lift up on grass catcher using the frame han dle.

2. Remove grass catcher with clippings from under lawn

mower han dle.

3. Empty clippings from bag using both frame handle and

bag handle.

NOTE: Do not drag the bag when emptying; it will cause
unnecessary wear.

FIG. 5

PIVOT PINS

REAR
DOOR

GRASS

CATCHER

HANDLE

CATCH ER FRAME HOOK

SIMPLE STEPS TO REMEMBER

WHEN CONVERTING YOUR LAWN MOWER

FOR MULCHING -
1. Rear door closed.

2. Mulcher door closed.

FOR REAR BAGGING -
1. Grass catcher installed.

2. Mulcher door closed.

FOR SIDE DISCHARGING -
1. Rear door closed.

2. Discharge defl ector installed.

CAUTION: Do not run your lawn mower
with out rear door closed or ap proved
grass catcher in place. Never at tempt
to op er ate the lawn mow er with the rear
door re moved or propped open.

OPEN

MULCHER

DOOR

FIG. 6

DISCHARGE
DEFLECTOR

FIG. 7

FRAME

HANDLE
