L4 Model

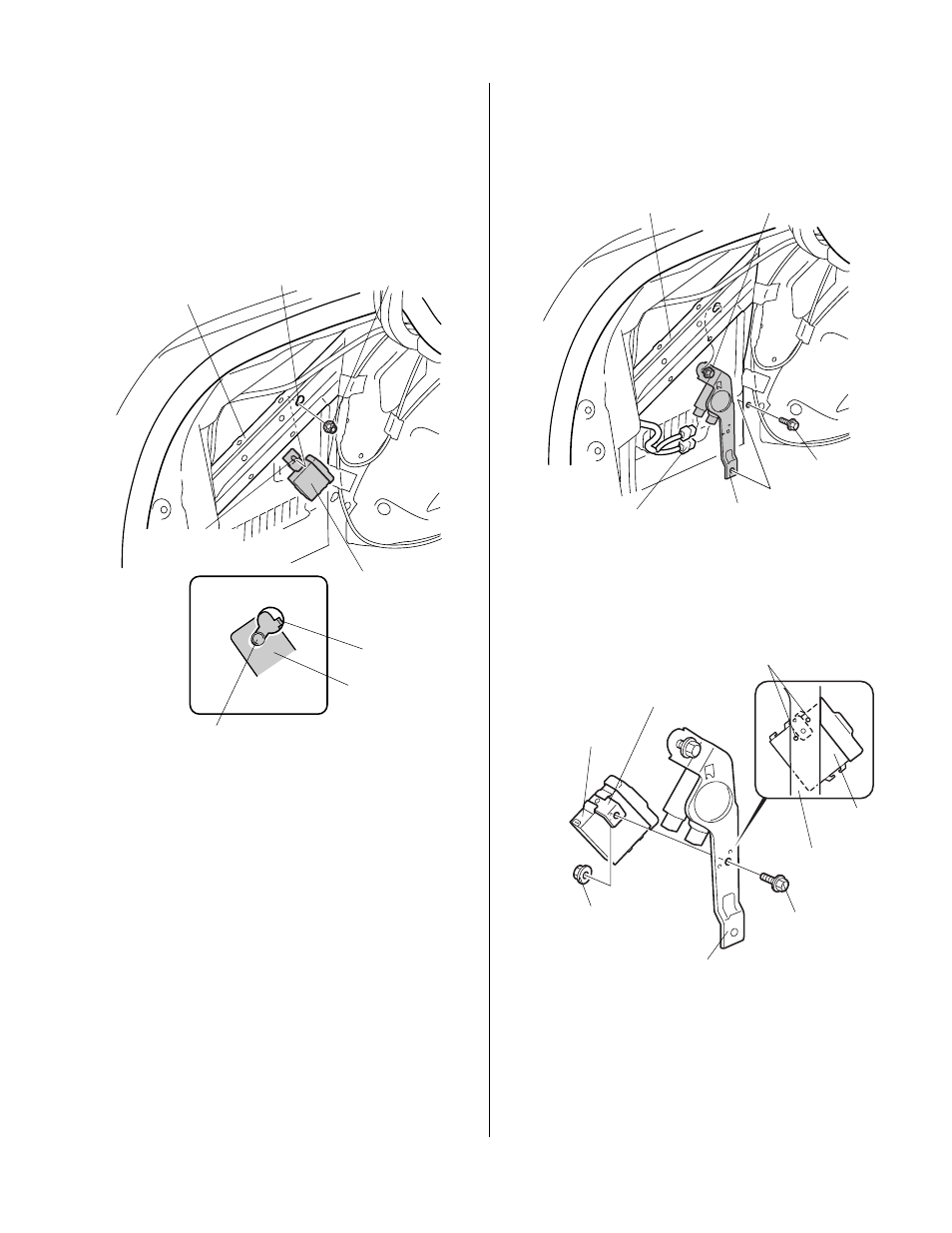

12. Install the control unit to the vehicle panel:
• Partially thread the 6 mm flange nut onto the
control unit bracket stud. Insert the control unit
bracket stud into the hole in the vehicle panel.
Tighten the 6 mm flange nut to secure the
bracket to the vehicle panel.
742311CE
VEHICLE
PANEL
CONTROL
UNIT
CONTROL UNIT
BRACKET STUD
BOLT
HOLE
6 mm
FLANGE NUT
HOOK
CONTROL
UNIT
BRACKET
STUD BOLT
V6 MODEL
• Loosen the upper bolt from the relay support.
Remove the relay support (one bolt and
disconnect the vehicle connectors).
• Install the control unit bracket to the relay support
using the 6 x 12 mm flange bolt and the 6 mm
flange nut.
• Reinstall the relay support.
771101AB
VEHICLE PANEL
RELAY
SUPPORT
BOLT
(Loosen.)
BOLT
(Remove.)
VEHICLE CONNECTORS
771102BB
6 x 12 mm
FLANGE BOLT
RELAY
SUPPORT
STOPPER
CONTROL
UNIT
RELAY
SUPPORT
6 mm
FLANGE NUT
CONTROL UNIT
BRACKET
CONTROL
UNIT
