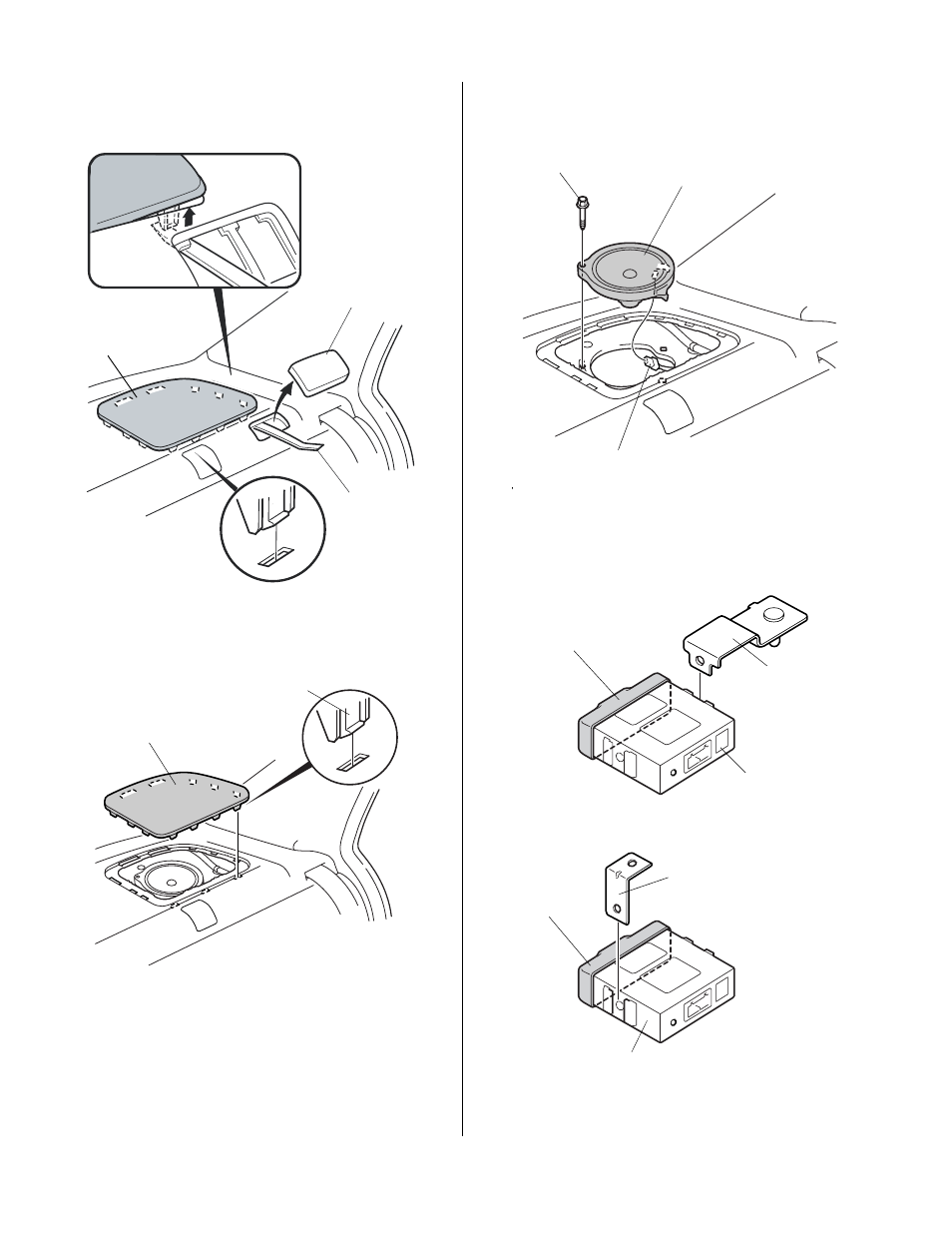

Using the trim tool, remove the rear shelf access
panel, then release the front rear speaker retaining
tab.
9.
Remove the left rear speaker cover (nine retaining
tabs).
REAR SHELF
ACCESS PANEL
LEFT REAR
SPEAKER COVER
TRIM TOOL
(TN SILRIMTL10)
742418AE
LEFT REAR
SPEAKER
COVER
9 RETAINING
TABS
10. Remove the left rear speaker (one bolt and
disconnect the vehicle connector).
11. Wrap urethane tape around the control unit at the
area shown. Then, attach the control unit bracket
into the control unit.
7115040E
LEFT REAR
SPEAKER
BOLT
VEHICLE
CONNECTOR
761205CE
CONTROL
UNIT
CONTROL UNIT
BRACKET
CONTROL
UNIT
CONTROL UNIT
BRACKET
L4 MODEL
V6 MODEL
URETHANE
TAPE
URETHANE
TAPE
