Face the PDP screen upside down on a clean blanket or a bracket and pay attention not to indent the

casing. Lay the two speaker aside of the PDP.

. Fix 4 ST4X16 screws to the speaker. (position

and

in Figure )

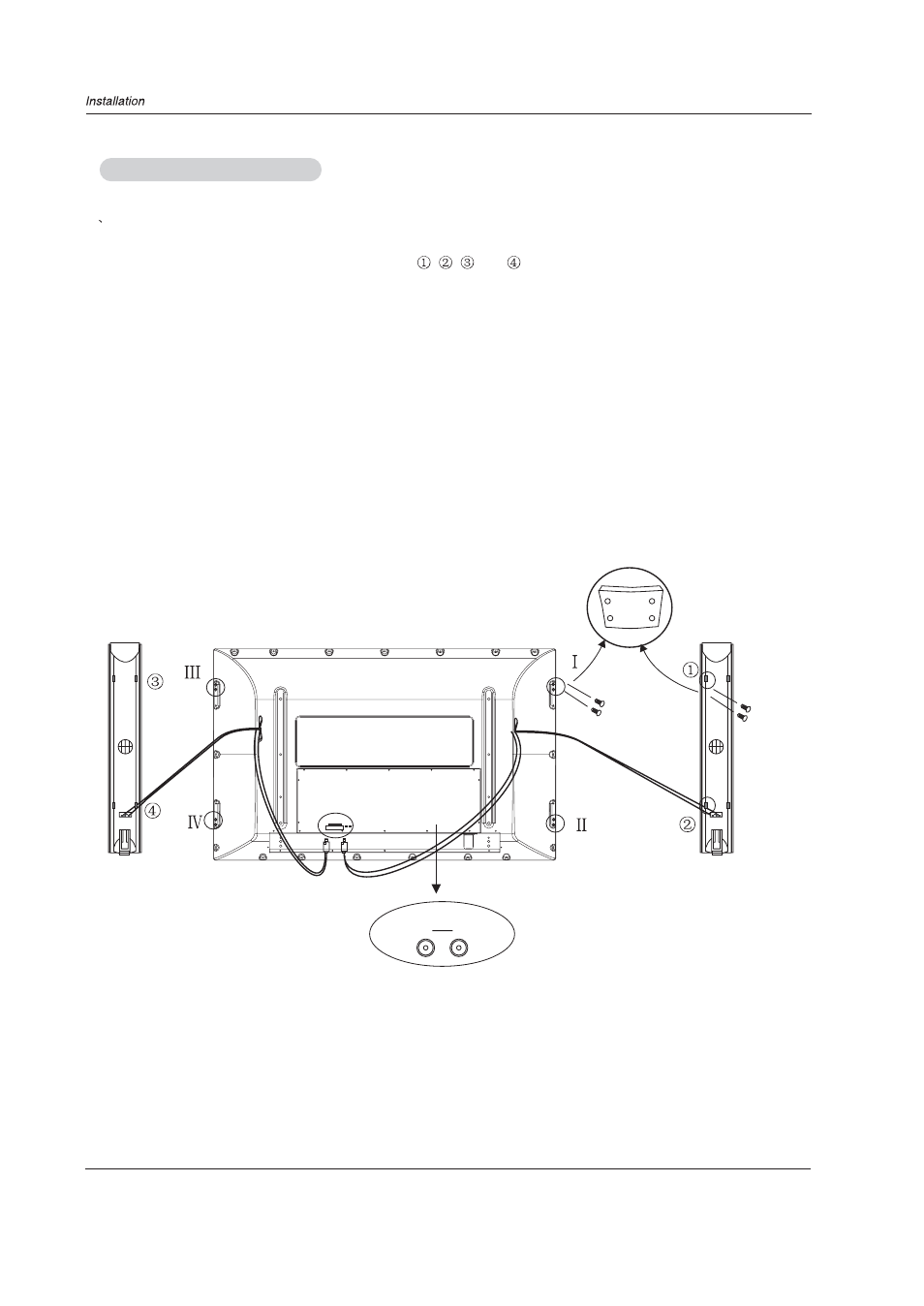

. Lean the speaker against the plasma screen, ensuring that the screw holes on the connecting block in

line with the screw holes on the plasma screen, and hold the speaker. (position I, II, III and IV in Figure )

. Fix the speaker to the plasma screen with ST4X16 screws.

. Connect the speaker to the speaker terminal of plasma screen: Nip the speaker terminal and insert the

connecting cable into the terminal slot. Release the speaker terminal and ensure that the white

connecting cable is inserted in the terminal slot marked red and black connecting cable is inserted in the

black terminal slot, and that anode and cathode poles are correctly connected.

(See Figure )

Install the Speakers

14 Plasma TV

ST4X16 screw

EXT SPEAKER

ST4X16 screw
