wATEr COIl OPTION
water Coil Installation
Use a hole saw and the template sup-
plied with the coil to make two holes
through the side wall of the stove. Keep
the coil holes above the firebrick, and
away from the loading door. Place one
of the supplied nuts on each leg of the
coil. Place the coil through the holes in
the stove, and adjust the nuts so that the
pipes stick out about 1¼” to 1½” from
the sidewall of the stove. Put flat wash-
ers and nuts on the outside, and tighten
within ¼ inch. Place fiberglass gasket
around each pipe at the washers and
tighten securely. You are now ready to
run pipes according to one of the follow-
ing examples.

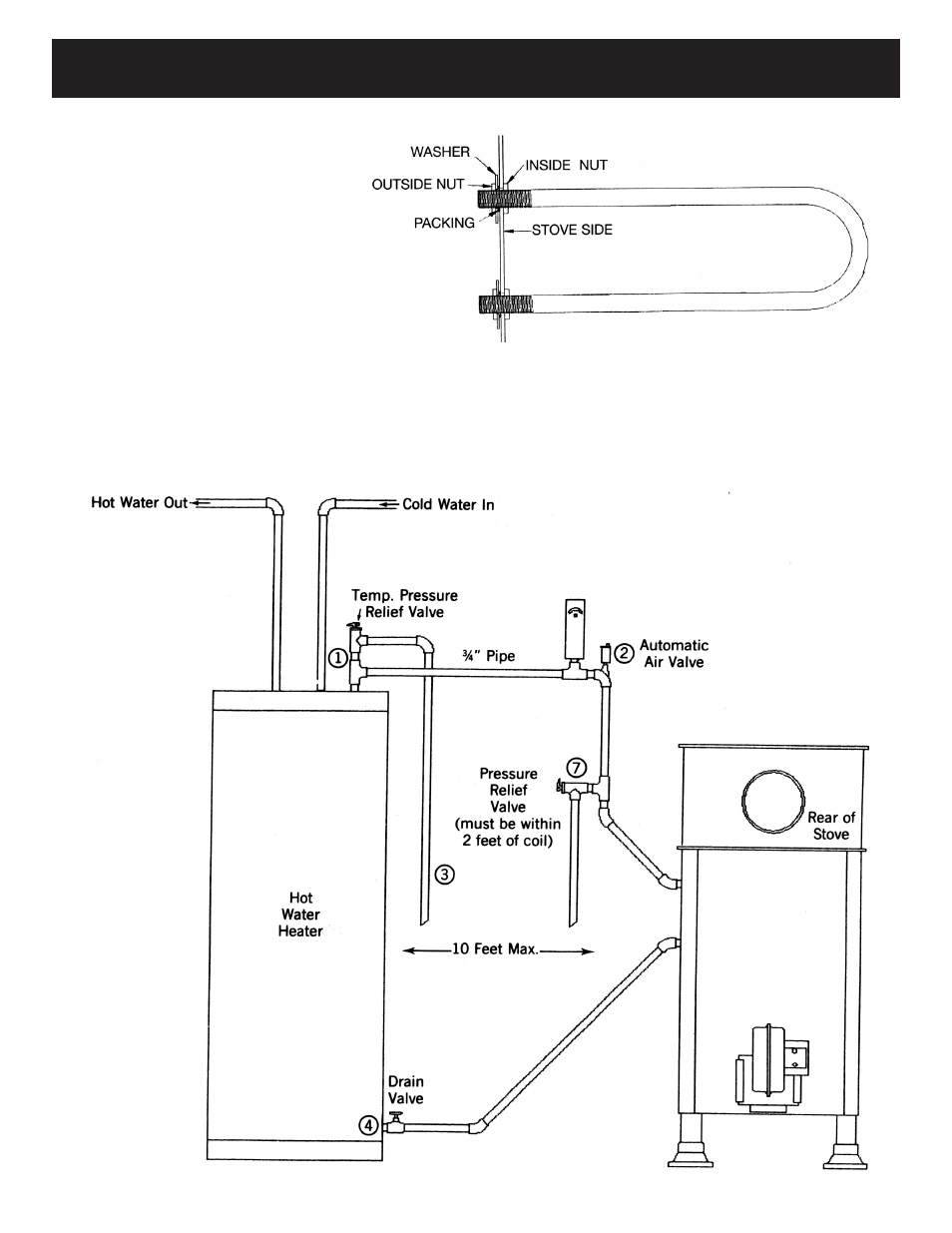

EXAmPlE 1: Thermo-siphon
method. (less than 10 feet.)
