13
PLUMBING
The drain outlet is located in the center
of the case just below the fan plenum. The
drain outlet is molded out of ABS material and
the “P” trap is constructed of schedule 40
PVC pipe. Care should be given to assure
that all connections are water tight and sealed
with the appropriate PVC cement, ABS
cement, or pipe dope.
The lower front panel and kickplate are
shipped loose with the case. If the kickplate has
already been installed, access to the drain area
can be easily obtained by removing it. See the

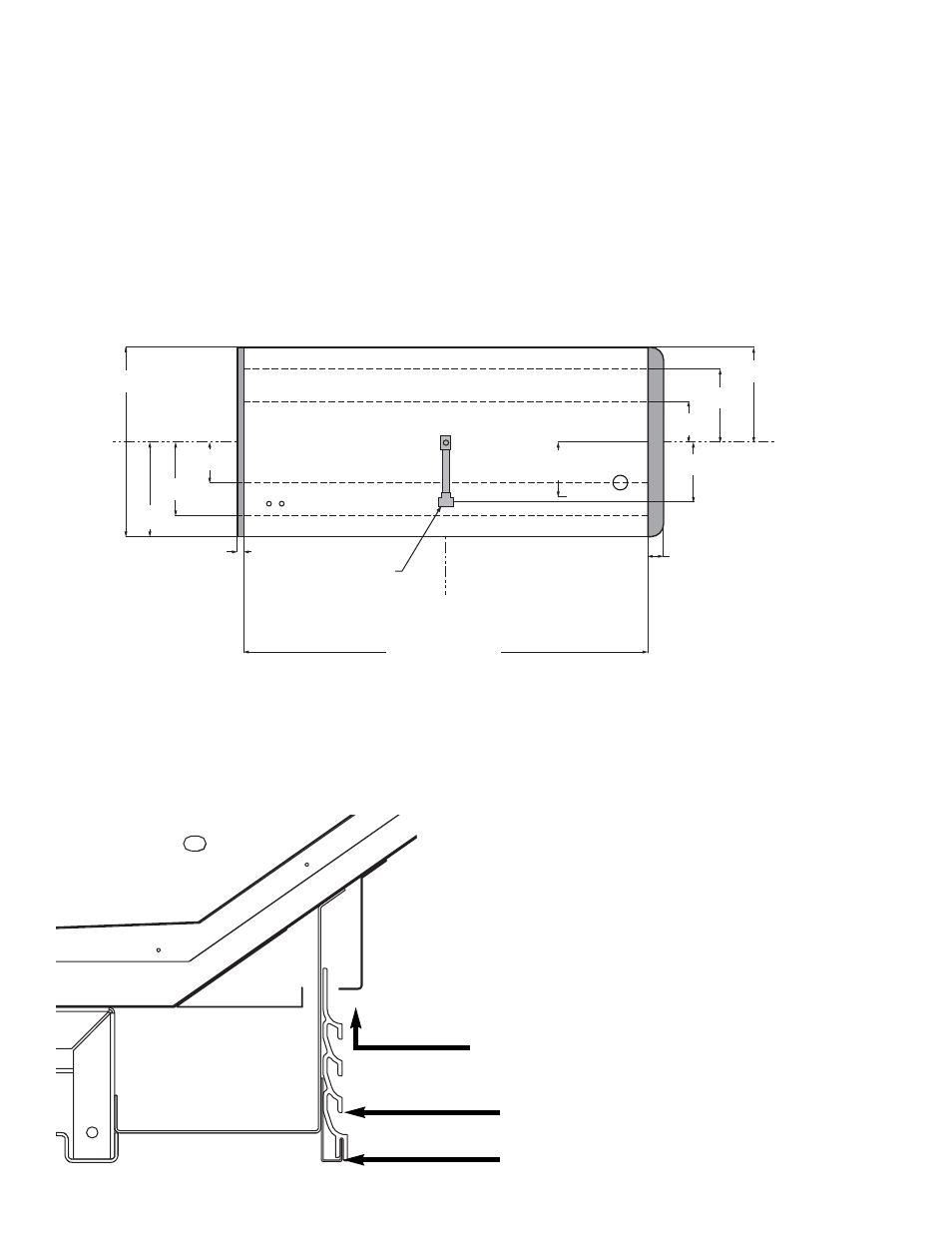

diagram below and the Trim Out section of this
manual on page 11.
HOW TO REMOVE KICKPLATE
C
L
C
L
C
L
45 in
[114.2 cm]
22 1/2 in
[57.1 cm]
17 3/8 in
[44.1 cm]
9 11/16 in
[24.6 cm]
1 1/2 in [3.8 cm]
{FLAT END} 1 1/2" PVC DRAIN
CONNECTION
FRONT OF CASE
12 15/16 in
[32.9 cm]
**
22 1/2 in
[57.1 cm]
17 3/8 in
[44.1 cm]
9 11/16 in
[24.6 cm]
14 1/4 in
[36.1 cm]
3 11/16 in [9.4 cm]
{WRAP END}
NOTES:
** RECOMMENDED STUB-UP CENTERLINE FOR ELECTRICAL AND HUB DRAINS
72 in [182.9 cm] {6' case}
96 in [243.8 cm] {8' case}
120 in [304.8 cm] {10' case}
144 in [365.8 cm] {12' case}
“J” RAIL
LIFT FROM “J” RAIL AND PULL OUT
KICKPLATE
MODEL
ONIZ
