Heat & Glo • 6000GCF-IPI, 6000GCF-IPILP • 2110-900 Rev. H • 11/08 53
16 16
Reference Materials

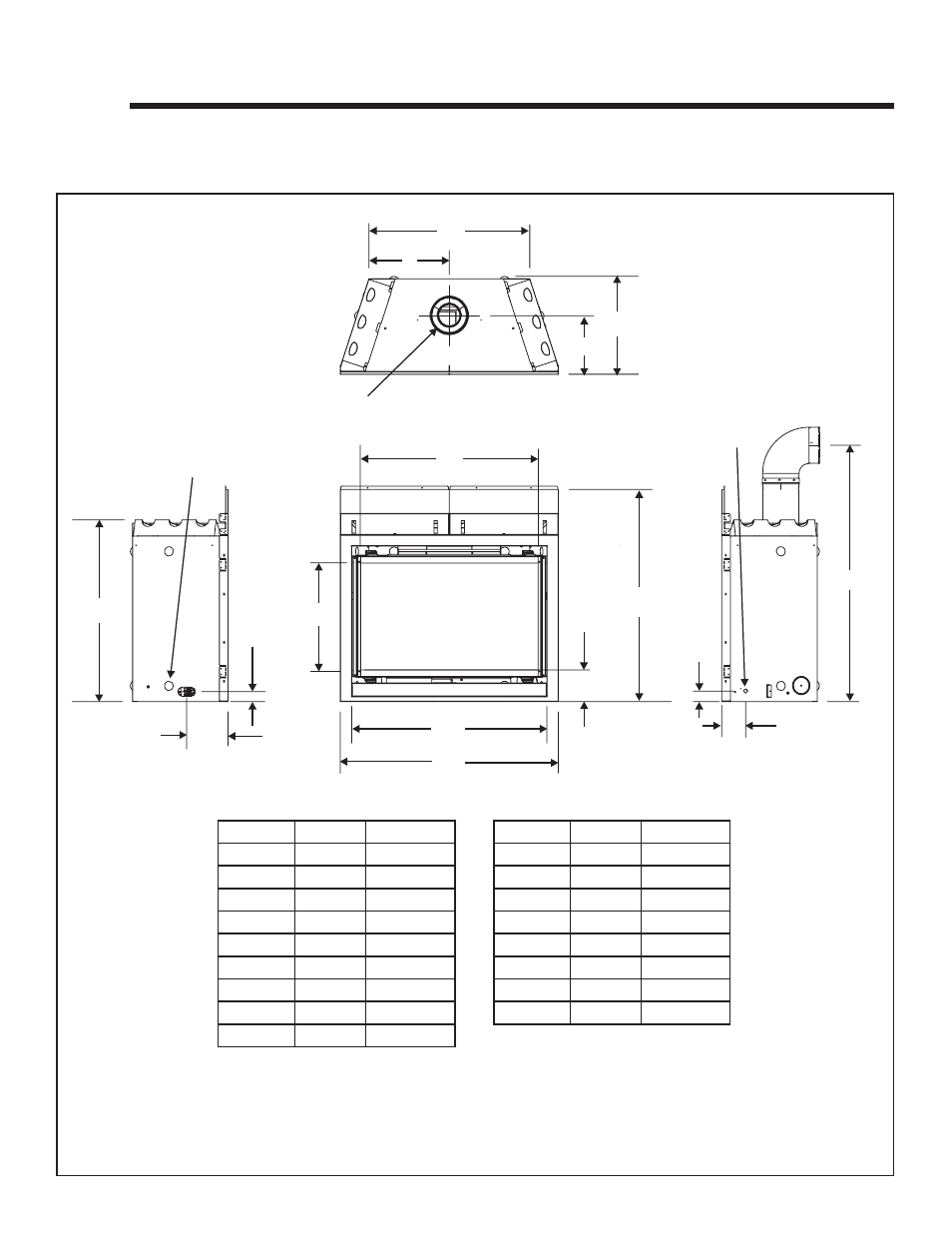

A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 5.
Figure 16.1 Appliance Dimensions
A
B
C
D
E
F
G
I
J
K
L
M
N
P
Q
GAS LINE
ACCESS
ELECTRICAL
ACCESS
H
O
Location Inches Millimeters
J 32-1/4 819
K 36-1/8 918
L 41-1/8 1045
M 7 178
N 44-3/4 1137
O 2-1/4 57
P 5 127
Q 48-1/2 1232
Location Inches Millimeters
A 28-1/2 724
B 14-1/4 362
C 21-1/2 546
D 12-7/8 327
E 8 203
F 38 965
G 6-7/8 175
H 2-1/8 54
I 21-1/2 546
