REPAIR PARTS
TILLER - - MODEL NUMBER DRT 900 (96093000801), PRODUCT NUMBER 960 93 00-08

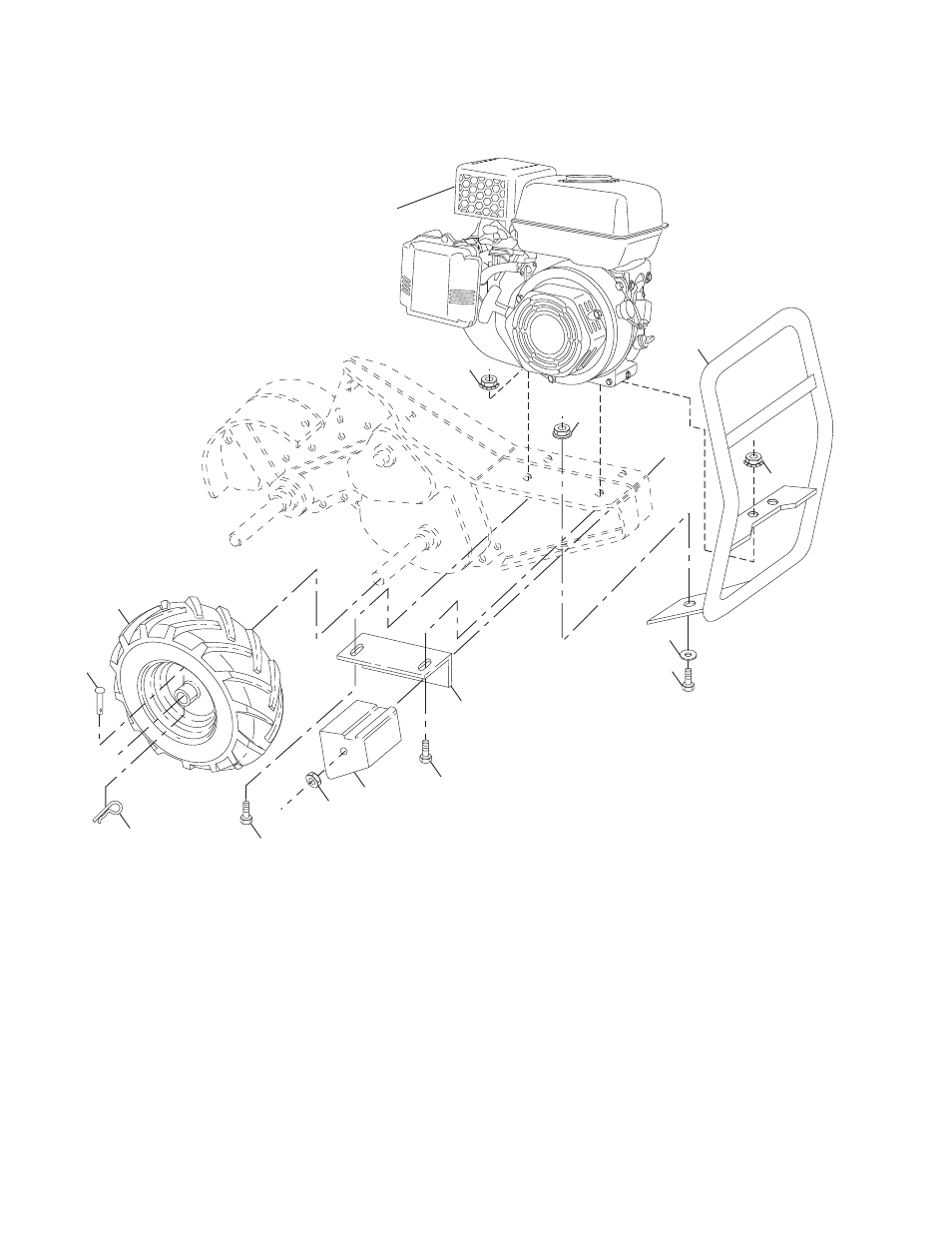

MAINFRAME, RIGHT SIDE
1 532 18 51-90 Bumper Asm.
2 873 97 05-00 Locknut, Hex, Flange 5/16-18
3 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.
4 874 76 05-12 Bolt 5/16-18 x 3/4
5 532 10 23-32 Bracket, Reinforcement R.H.
7 532 10 21-73 Counter Weight, R.H.
10 874 76 05-24 Bolt, Hex 5/16-18 x 1-1/2
11 532 12 47-88 Clip, Hairpin
12 532 12 68-75 Rivet, Drilled
13 532 10 21-90 Tire
532 15 07-40 Rim
532 12 47-18 Tire Valve
15 - - - - - - - - Engine, LCT Model No. PLMH-
K14600124P- (Order parts from
Engine Manufacturer)
22 874 76 05-28 Bolt 5/16-18 x 1-3/4
44 873 51 06-00 Nut Keps Hex 3/8-16 unc
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
