English – 5

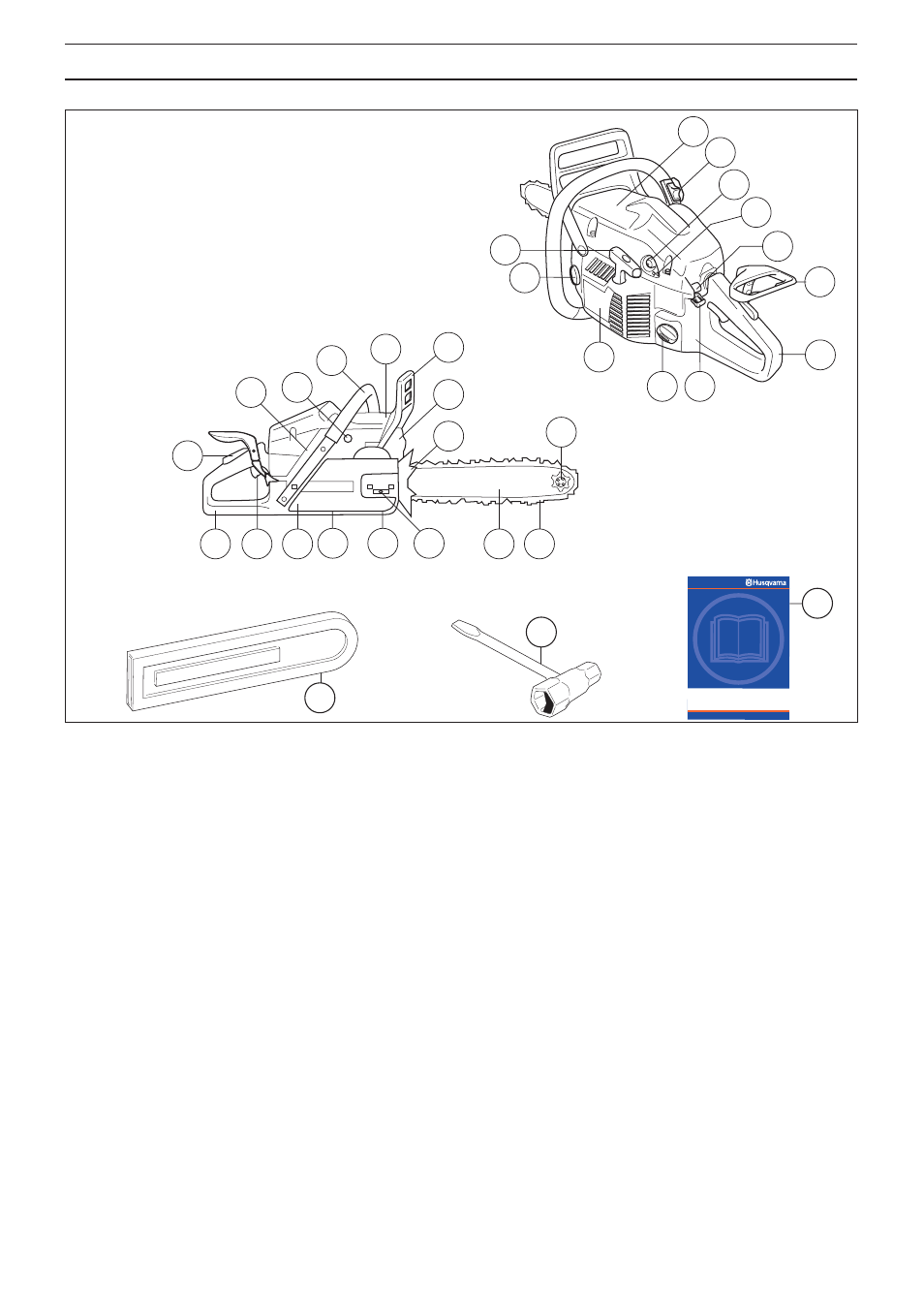

WHA T IS WHA T?
What is what on the c hain saw?
29
28
17 16 14 12 10
2
5 6
4
3
9
15 13 11
30
7
8
18
19
21 22
23
24
26
20
1
27
25
31
32
1 Product and serial number plate
2 Throttle lockout
3 Decompression valve (345e, 353)
4 Front handle
5 Cylinder cover
6 Front hand guard
7 Muffler
8 Bumper spike
9 Bar tip sprocket
10 Rear handle with right hand guard
11 Throttle control
12 Clutch cover
13 Oil pump adjustment screw
14 Chain catcher
15 Chain tensioning screw
16 Bar
17 Chain
18 Starter handle
19 Chain oil tank
20 Starter
21 Fuel tank
22 Choke control/Start throttle lock
23 Rear handle
24 Stop switch (Ignition on/off switch.)
25 Adjuster screws carburetor
26 Air purge (345e)
27 Information and warning decal
28 Bar guard
29 Combination spanner
30 Operator’s manual (EPA)
31 Right-hand brake trigger
32 Switch for heated handle (346XPG, 353G)
