WHAT IS WHAT?

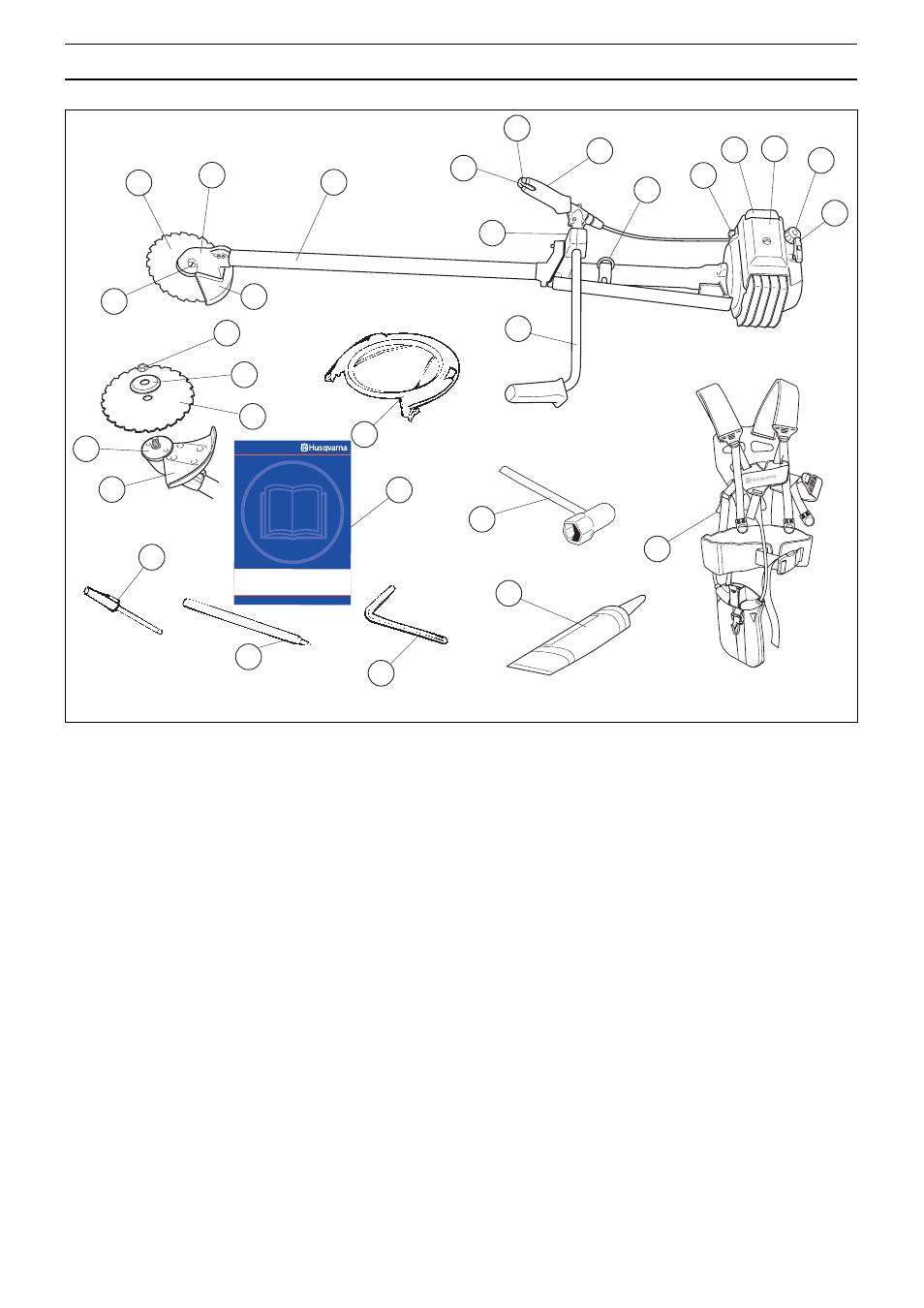

What is what on the clearing saw? (265RX)
24
25
23
27
20
21 4
19
17
18
1
22
12
13
11 15
14
10
9
8
5
3
1
2
6
16
7
26
4
1 Blade
2 Grease filler cap
3 Bevel gear
4 Cutting attachment guard
5 Shaft
6 Handlebar
7 Throttle control
8 Stop switch
9 Throttle lock
10 Support eyes for harness
11 Cylinder cover
12 Starter handle
13 Fuel tank
14 Choke control
15 Air filter
16 Handle adjustment
17 Locking nut
18 Support flange
19 Drive disc
20 Socket spanner
21 Operator ′s manual
22 Transport guard
23 Allen key
24 Carburettor screwdriver
25 Locking pin
26 Harness
27 Gearbox grease
