18
6 6
Framing & Clearances
16 in.
(406 mm)
56 in.
(1422 mm)
12 in. (305 mm)
from opening of
fireplace
64 in.
(1626 mm)
62 in.
(1575 mm)
HEARTH
EXTENSION
(shaded)
1/2 in. min. (13 mm)
distance from fireplace to
combustible materials.
Note: In addition to these
framing dimensions,
also reference the
following sections:
• Clearances
• Mantel Projections
• Fireplace Dimensions
Note:

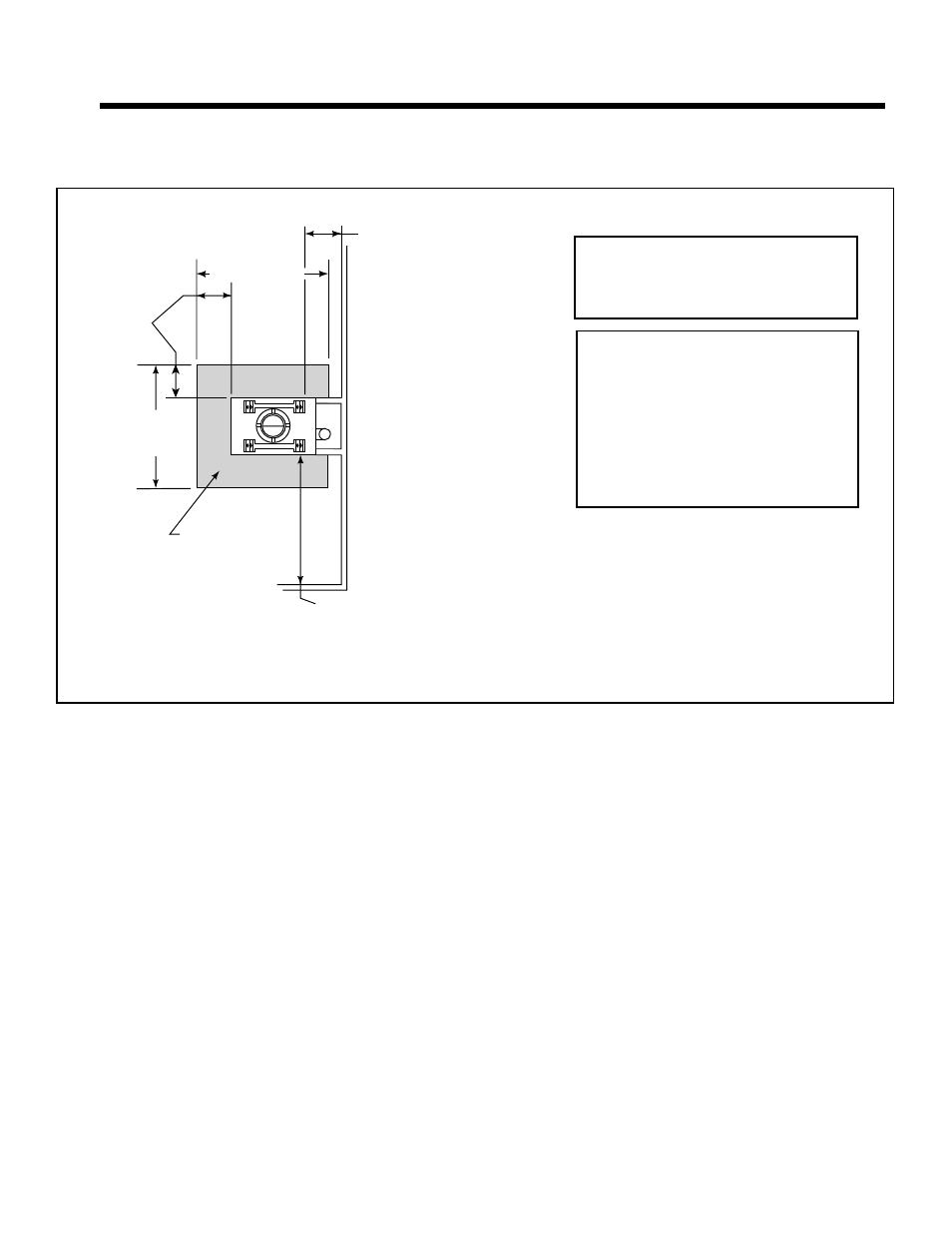

Figure 6.1 Fireplace Locations
A. Select Fireplace Location
Heatilator • Multi-Sided Woodburning Fireplace • 34955 • Rev V • 11/08
