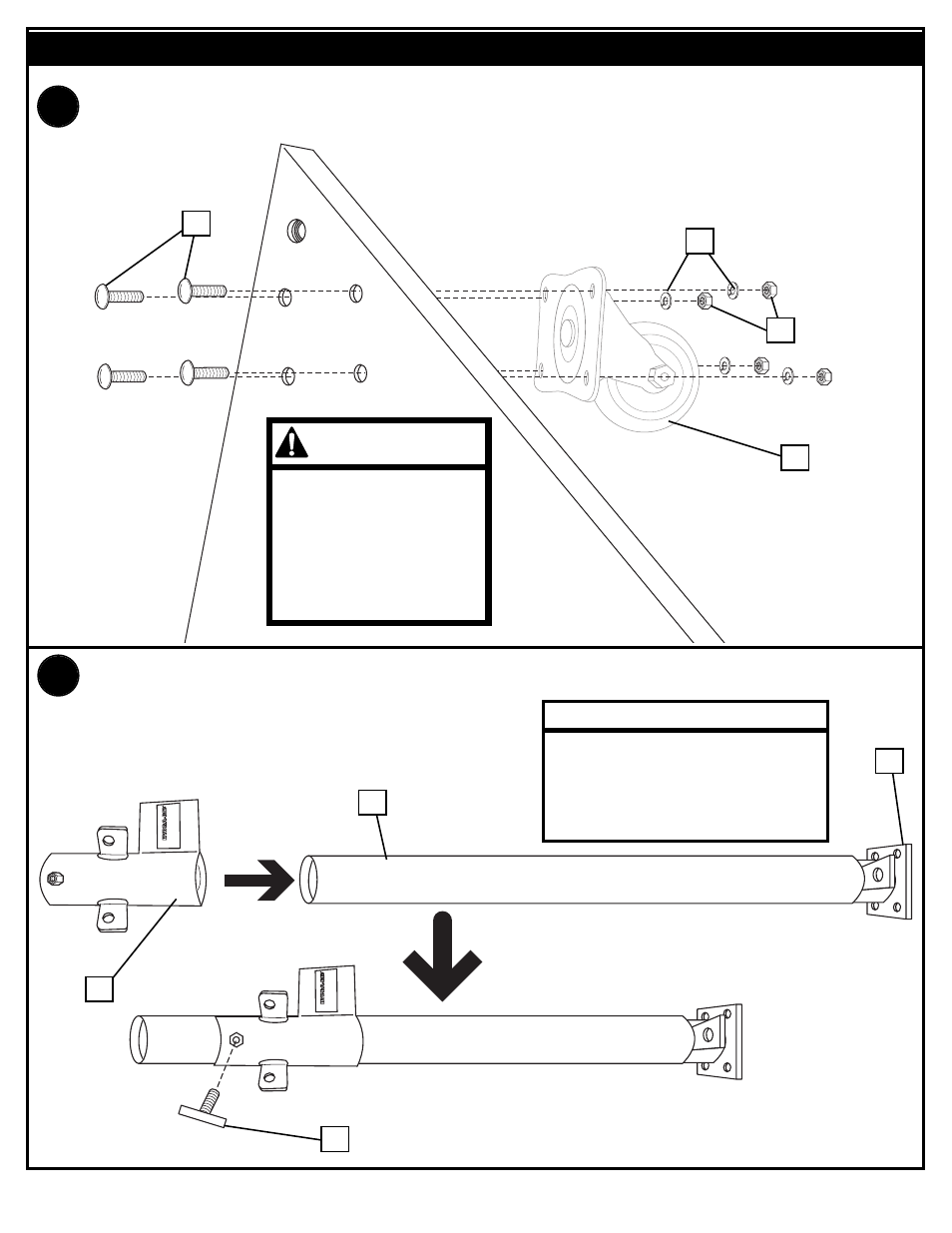

Tip base on it's side and install casters (2) to the bottom of base (1) as shown
using bolts (22), lockwashers (31) and nuts (27).
1.
22
2. Attach collar (8) to outer pole (5) as shown with T-Screw bolt (7). Tighten
completely.
7
8
2
5
NOTE:
THE T-SCREW (7) IS USED TO SECURE
COLLAR TO OUTER POLE (5) UNTIL
STRUTS ARE ATTACHED (STEP 4).
AT THAT POINT THE
T-SCREW (7) CAN BE LOOSENED.
TWO PERSON MINIMUM
REQUIRED FOR THIS
PROCEDURE. NOT
FOLLOWING
RECOMMENDATION MAY
RESULT IN BODILY
INJURY.
WARNING
