12
P/N 211670 12/02

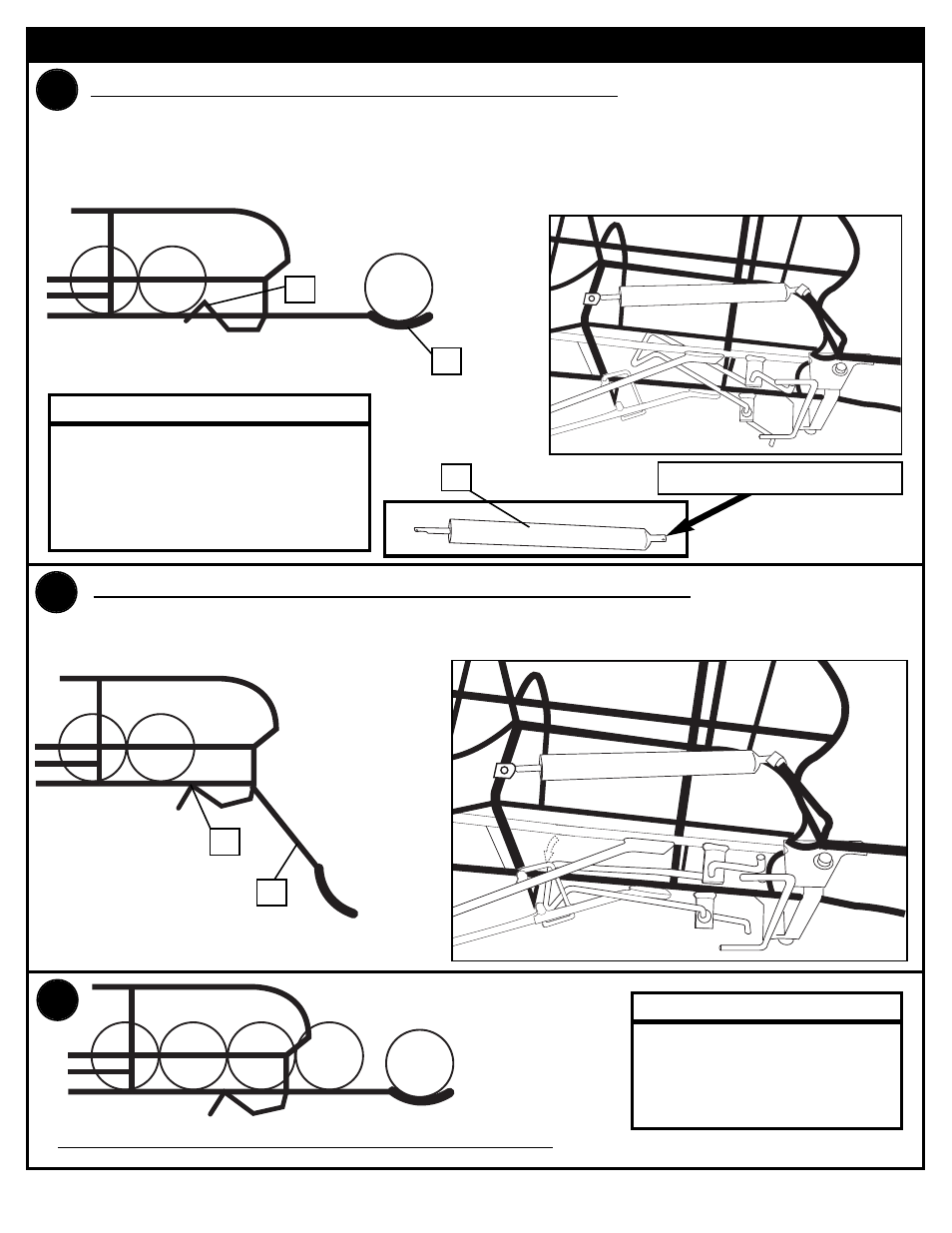

BALL-CHECK MECHANISM - STANDARD POSTION
1. Ball-Check Mechanism (17) holding ball.
2. For normal operation, pull down on Rebound Arm (16) which causes Ball-Check
Mechanism (17) to drop, allowing ball to pass to arm.
3. Ball in arm position with Ball-Check Mechanism (17) holding next ball.
1.
SECTION B : OPERATING THE McCALL'S REBOUNDER
2.
Adjustment screw location 18
17
16
DRILLS REQUIRING BALL TO PASS WITHOUT STOPPING
1. Revearse position of Ball-Check Release (17) and pull down on Rebound Arm
(16) until Ball-Check Mechanism (17) drops out of position.
16
17
BALL-CHECK MECHANISM - OUT OF POSITION
NOTE :
IF THE REBOUND ARM IS
RETURNING TOO FAST, OR IS
RETURNING TOO SLOW, THE AIR
CHECKS (18) MAY HAVE TO BE
ADJUSTED ACCORDINGLY.
NOTE :
TO RE-ENGAGE
BALL-CHECK MECHANISM,
REVERSE PROCEDURE IN
STEP 2
3.
