E. Positioning the Logs
2019-700

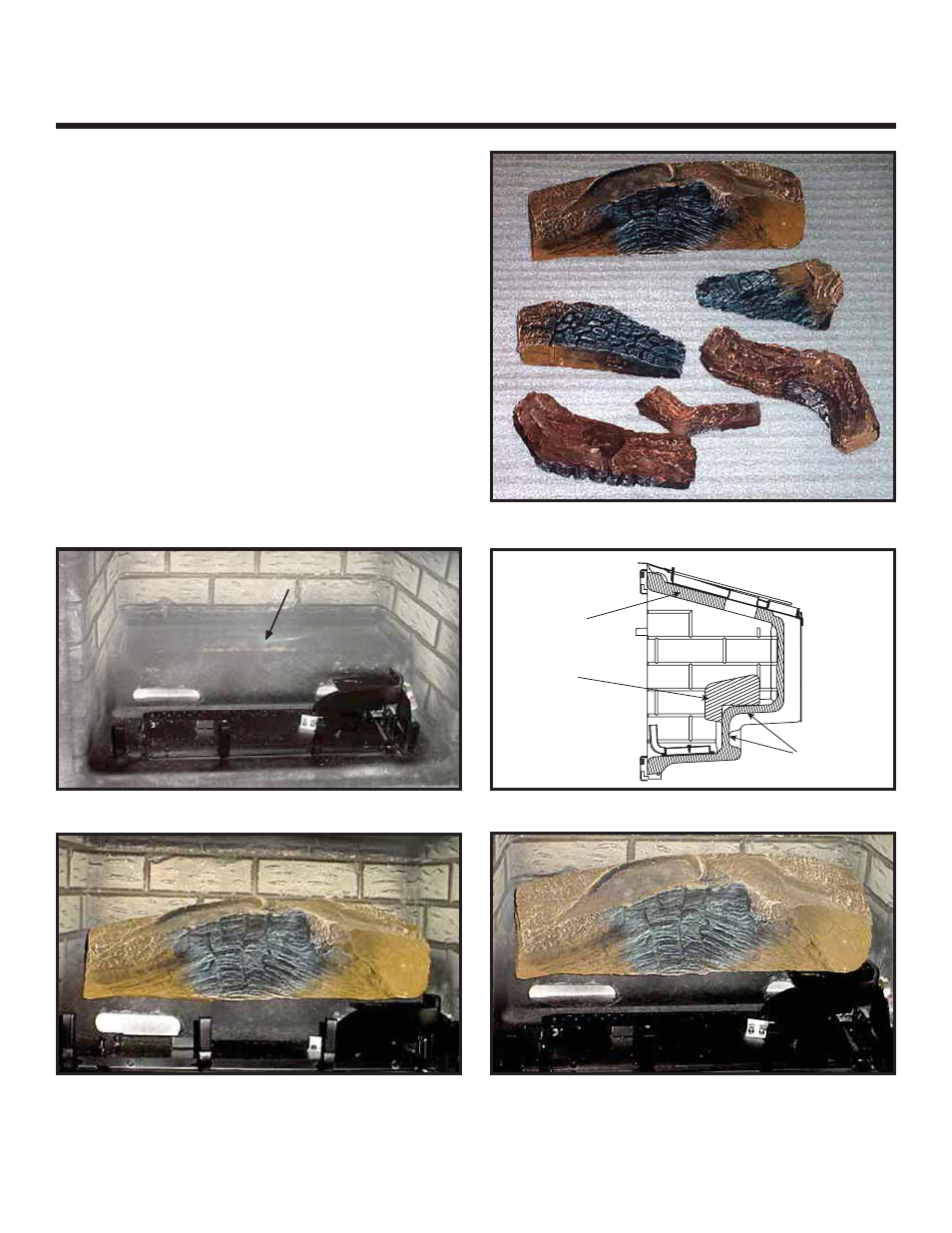

Log Set Assembly: LOGS-FB-ZC
FIREBOX LEDGE
4 4
5 5
6 6
1 1
3 3
2 2
FIREBOX
LOG #1
FIREBOX LEDGE
CAUTION: Logs are fragile! Carefully remove the logs from
the packaging.
LOG #1 (SRV2019-701):
Place log #1 on the fi rebox ledge as shown. The front portion of the log should hang
over the ledge as shown. The log should be placed all the way back and in the center of the ledge.
1 1
1 1
