Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08 15

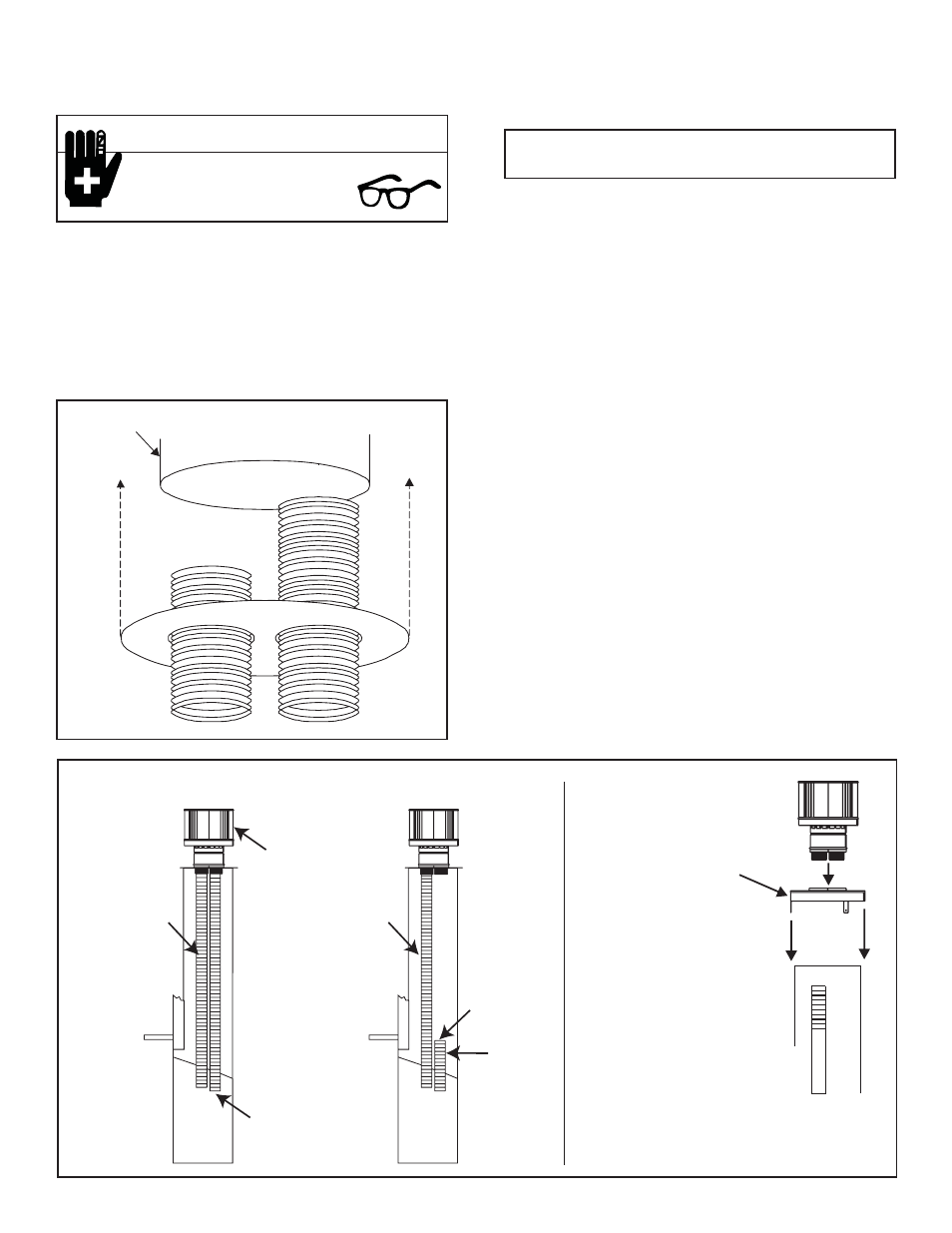

D. Installing Adaptor and Termination Cap
To install adaptor see Figure 7.3.
CLASS A PIPE
Figure 7.3
Damper Flashing Kit (Optional)
For use with LINK-DV4-30B Liner Kit.
Note: Damper may have to be removed to use this kit.
• Run fl ex liners through 3” holes in damper fl ashing.
• Attach damper fl ashing to fi rebox roof with self tapping
screws included in kit.
Figure 7.4
To help eliminate cold air drafts, it may be necessary to
place non-combustible insulation around the fl ues as they
go though the damper.
Note: The LINK-DV4-30B system REQUIRES this
insulation.
Masonry Factory Built
Wood Burning
EXHAUST
AIR
VENT PIPE
TERMINATION
CAP
LINK-DV30B
Installation
LINK-DV4-30B
Installation
INLET AIR
VENT PIPE
WARNING:
DO NOT BLOCK
THIS PIPE END!
EXHAUST
AIR
VENT PIPE
INLET AIR
VENT PIPE
Note: Untwist
the pipe while
extending it, to
achieve full 30’
length.
Remove 18 inch x 18 inch fl ashing on cap by removing
3 screws. Connect both the LINK-ZC-ADPB to Class
A Pipe and the termination cap to the LINK-ZC-ADPB
with the self tapping screws provided.
OPTIONAL LINK-ZC-ADPB
FOR USE WITH CLASS A
WOODBURNING PIPE
OR
CAUTION
Sharp Edges
• Wear protective gloves and safety
glasses during installation.
