REPAIR PARTS
TILLER - - MODEL NUMBER DRT900E (96093001401), PRODUCT NUMBER 960 93 00-14

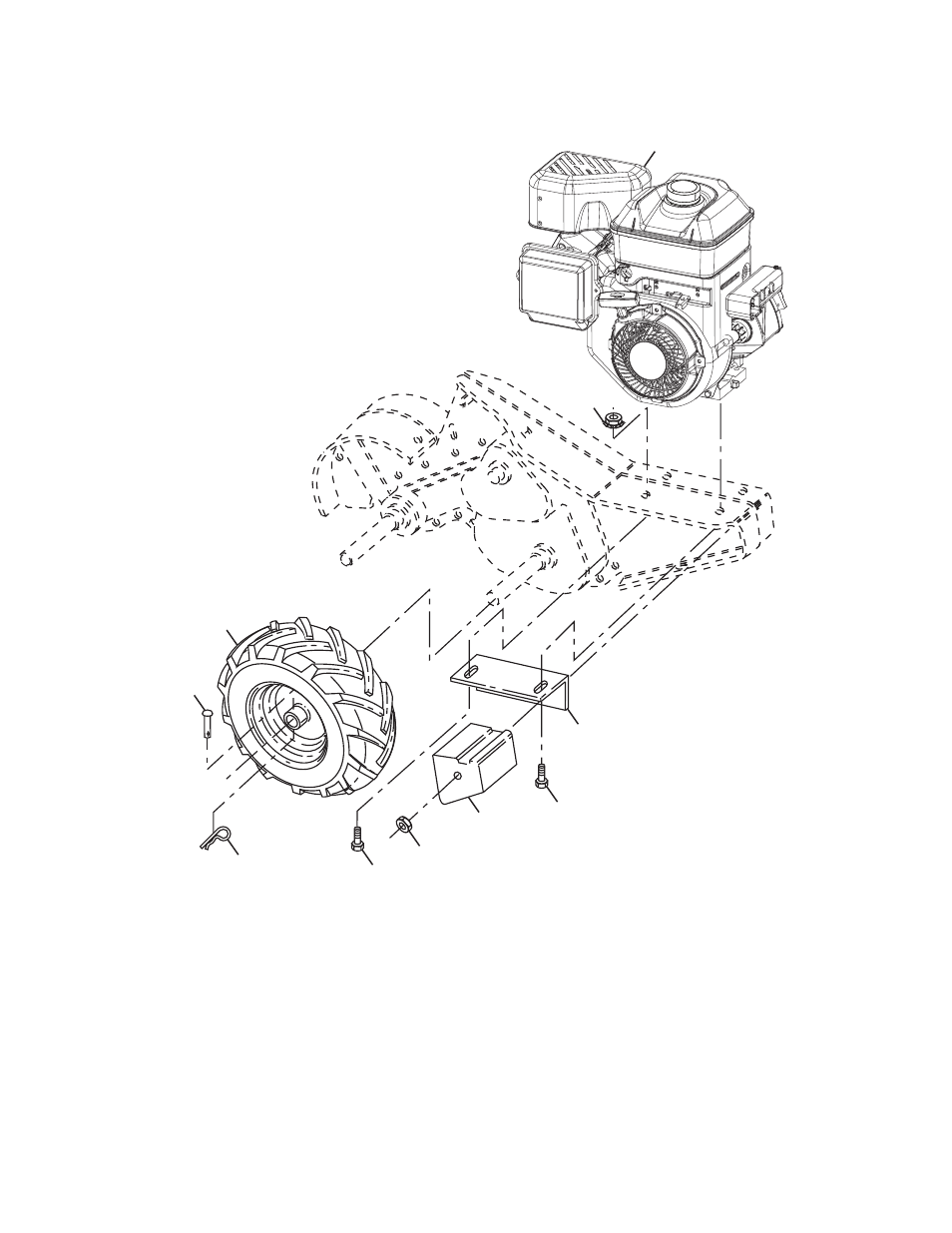

MAINFRAME, RIGHT SIDE
2 873 97 05-00 Locknut, Hex, Flange 5/16-18
5 532 10 23-32 Bracket, Reinforcement R.H.
7 532 10 21-73 Counter Weight, R.H.
10 874 76 05-24 Bolt, Hex 5/16-18 x 1-1/2
11 532 12 47-88 Clip, Hairpin
12 532 12 68-75 Rivet, Drilled
13 532 10 21-90 Tire
532 15 07-40 Rim
532 12 47-18 Tire Valve
15 - - - - - - - - Engine, Briggs & Stratton
Model No. 121003-1412-B1
44 873 51 06-00 Nut Keps Hex 3/8-16 unc
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton
1-800-233-3723
MAINFRAME?RIGHT?
