Hearth & Home Technologies • Heat-Zone-240V Air Duct Kit • 299-900D • 7/10 4

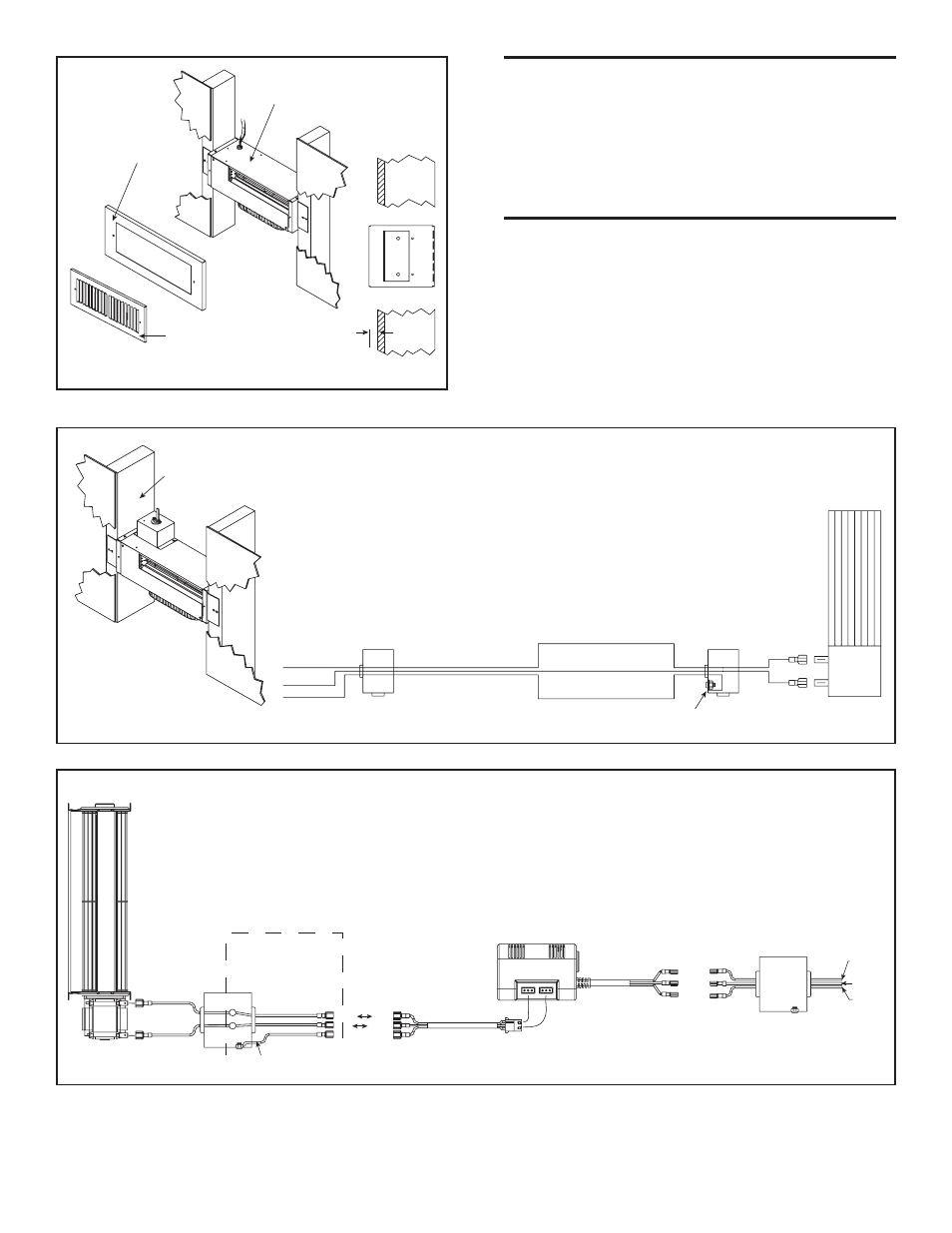

Figure 8
Figure 9
Figure 7
Operation
1. Start the heater per instructions and allow it to warm
up.
2. Turn the wall switch "ON" to start air fl ow at the air duct
register or use RC300 remote to turn on blower.
Maintenance
1. Service and maintain the gas heater per instructions.
2. Keep the air register(s) clean and free of any blockage.
3. Reference IPI Plus instructions with remote control for
fan auxiliary control.
STUD
BROWN HOT
BROWN
BLUE NEUTRAL
BLUE
YELLOW / GREEN GROUND
GROUND
SWITCH
JUNCTION BOX
FAN
JUNCTION BOX
FAN
BLUE
BROWN
AUX1= 3 FAN SPEEDS
AUX2= ON/OFF CONTROL HIGH ONLY
GREEN/
YELLOW
BROWN
BLUE
GREEN/YELLOW
BLUE WHITE
FAN
BROWN BLACK
AUX1 AUX2 FAN
JUNCTION BOX
2166-191 JUMPER
APPLIANCE
JUNCTION BOX
BLUE
BROWN
GREEN/
YELLOW
JUNCTION BOX AND
CONNECTION WIRE SUPPLIED
BY INSTALLATION
PROFESSIONAL
FAN HOUSING
ADAPTER FRAME
1/2 in.
(13 mm)
REGISTER
Isolated ON/OFF control wall switch
IPI Plus with auxiliary control
