– 24 –

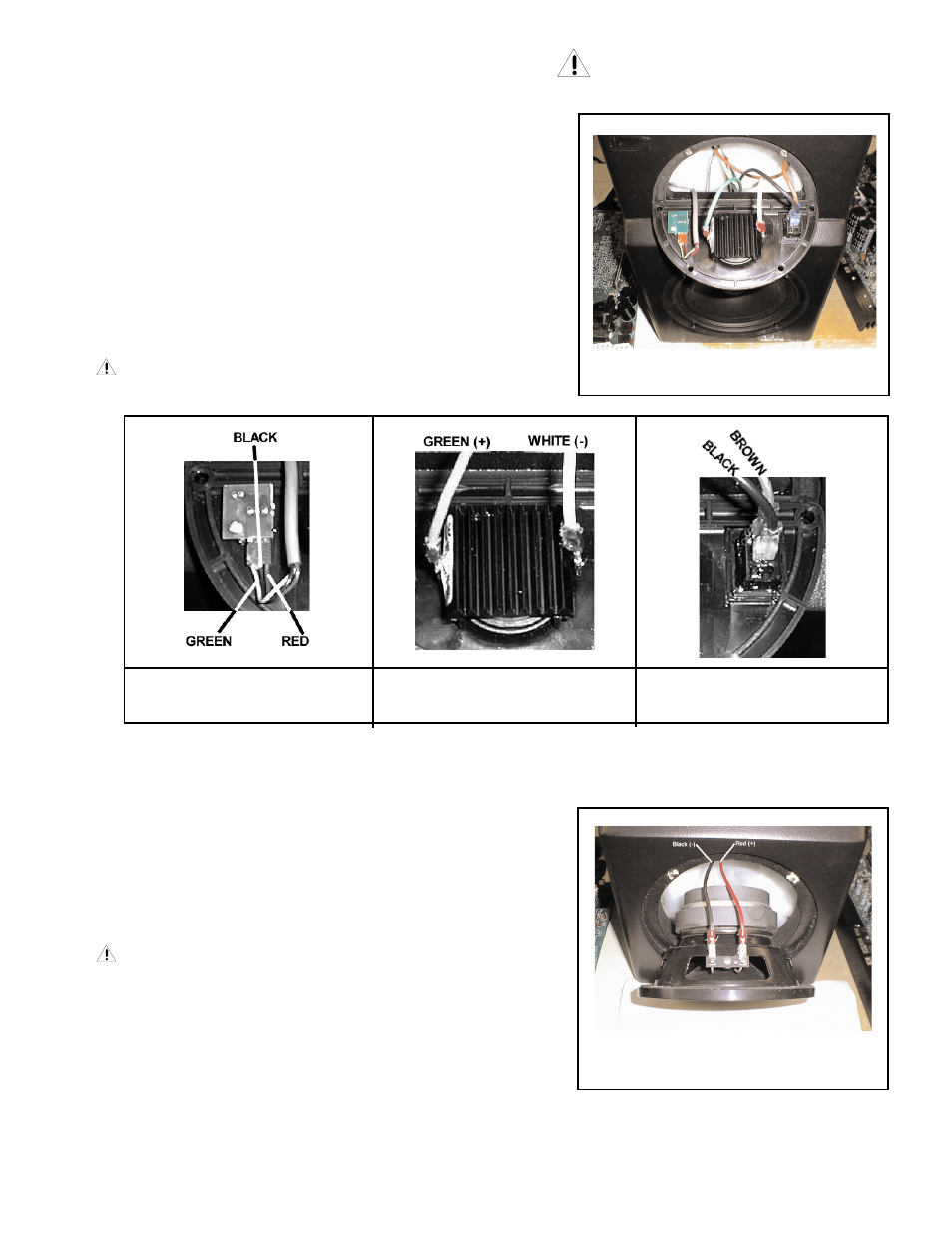

TWEETER REPLACEMENT
Qualified Service Personnel Only
1. Remove (4) screws from wave guide using a 3/32" Allen Wrench
2. Remove wave guide assembly from enclosure
3. Disconnect the LED harness (FIG. 1)
4. Disconnect the (2) speaker wires from the tweeter (FIG. 2)
5. Disconnect the (2) power switch wires (FIG. 3)
6. Unclip the tweeter from wave guide (4 catch fingers)
7. Position the replacement tweeter into wave guide
8. Snap the tweeter into wave guide
9. Follow steps 1-5 in reverse order to install wave guide assembly
CAUTION: Reconnect wires as indicated in each diagram!
Wave Guide Assembly
FIG. 1
LED Harness
FIG. 2
Tweeter Replacement #SPK10424
FIG. 3
Power Switch
WOOFER REPLACEMENT
FIG. 4
Woofer Replacement
1. Remove (4) screws from woofer using a 3/32" Allen Wrench
2. Remove woofer from enclosure
3. Disconnect (2) speaker wires (FIG. 4)
4. Follow steps 1-3 in reverse order to install new woofer
CAUTION: Reconnect wires as indicated in each diagram!
