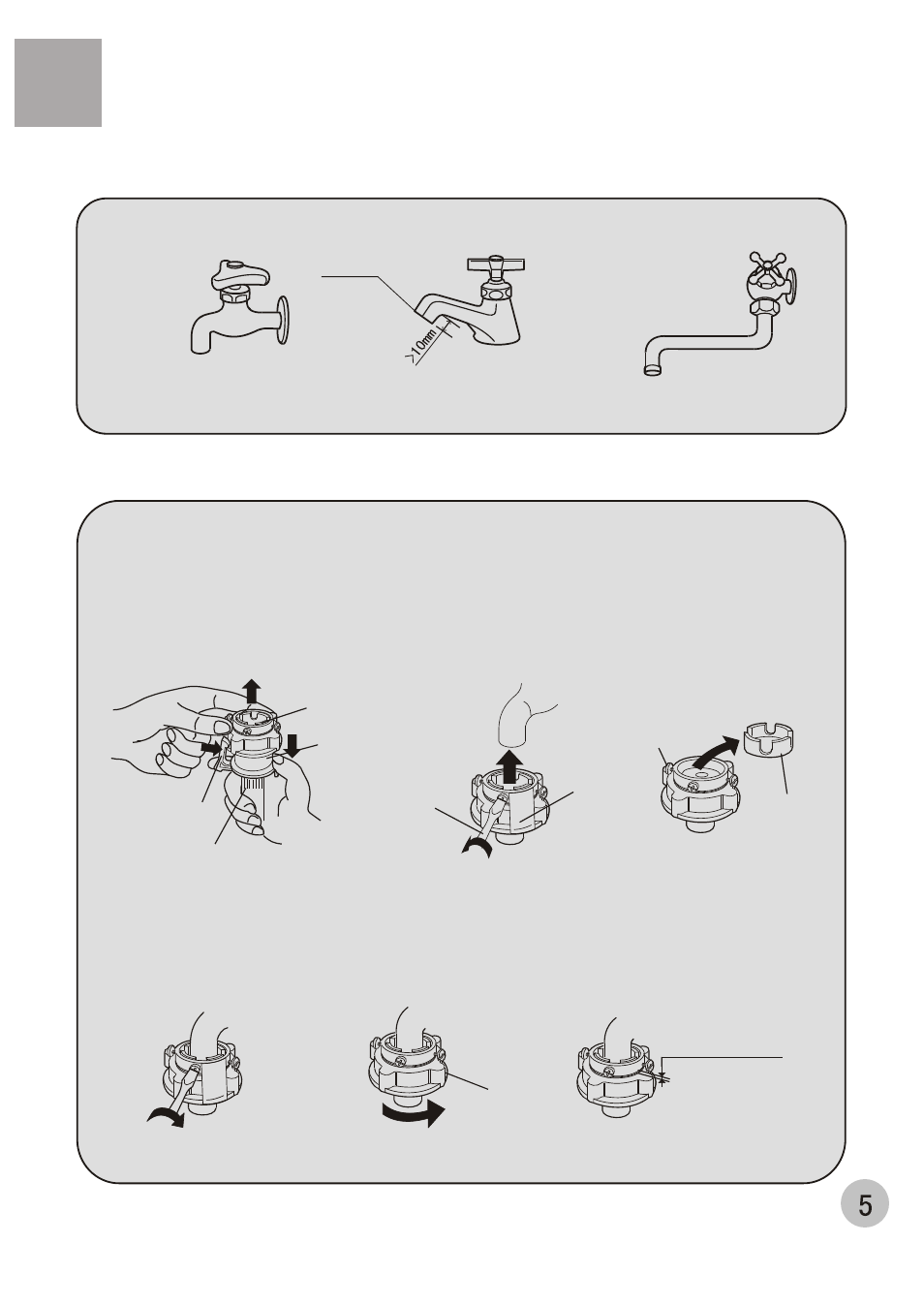

The exit end face of the faucet
Confirm the water faucet
Connection between the water inlet hose jointer and the water faucet
water faucet, suitable water faucet, not suitable
It is required that the front end shall be longer than 10mm.
The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage.
2 Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the faucet.
See to Figure 2. (If the faucet is too large and the jointer can not be set on the water faucet, please loosen
the four screws and take out the bushing in the jointer. The front end of the faucet must be smooth,
otherwise it may leak water. See to Figure 3.)
1. Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the
water inlet hose component. See to Figure 1.
3. Fasten the four screws evenly. See to Figure 4.
About 4mm before twisting
remark: Before installation, the threading is 4mm above the upper surface of the nut.
After installation, the threading is 2mm above the upper surface of the nut..(see to figure 6)
About less than 2mm after twisting
water inlet hose jointer
Screw knife
Screw
Bushing
Sign plate
Screw nut
water inlet hose
Figure 1
Figure 4
Figure 2
Figure 5
Figure 3
Figure 6
Slider
Lock lever
Before Using Before Using Install the water inlet hose
4 Take off the sign plate. Twist the fastening nut as per the indication of the figure
to seal up the exit end face of the faucet. See to Figure 5.
Use the new water inlet hose provided with the machine to connect to the water faucet.Old hose sets
should not be reused.
