The drainage shall be smooth with the drain hose.
The height of the drain hose shall be less than
10cm, or the drainage will not be smooth, and cost
such long time that the machine may stop at mid
way.
Do not step on or press the drain hose.
If extra drain hose is needed, please make separate
purchase. The inner diameter of the extra hose shall
not less than 30mm, and the length shall not exceed
1.5m.
If the extra hose is too long,cut
it either at A or at B point.
A B
<10cm
A
> 30mm
<1.5m
If the drain hose is too long, cut it at mid point. To make
smooth drainage, cut the front end of the hose slantingly.
Useage the drain hose
Before Using Before Using

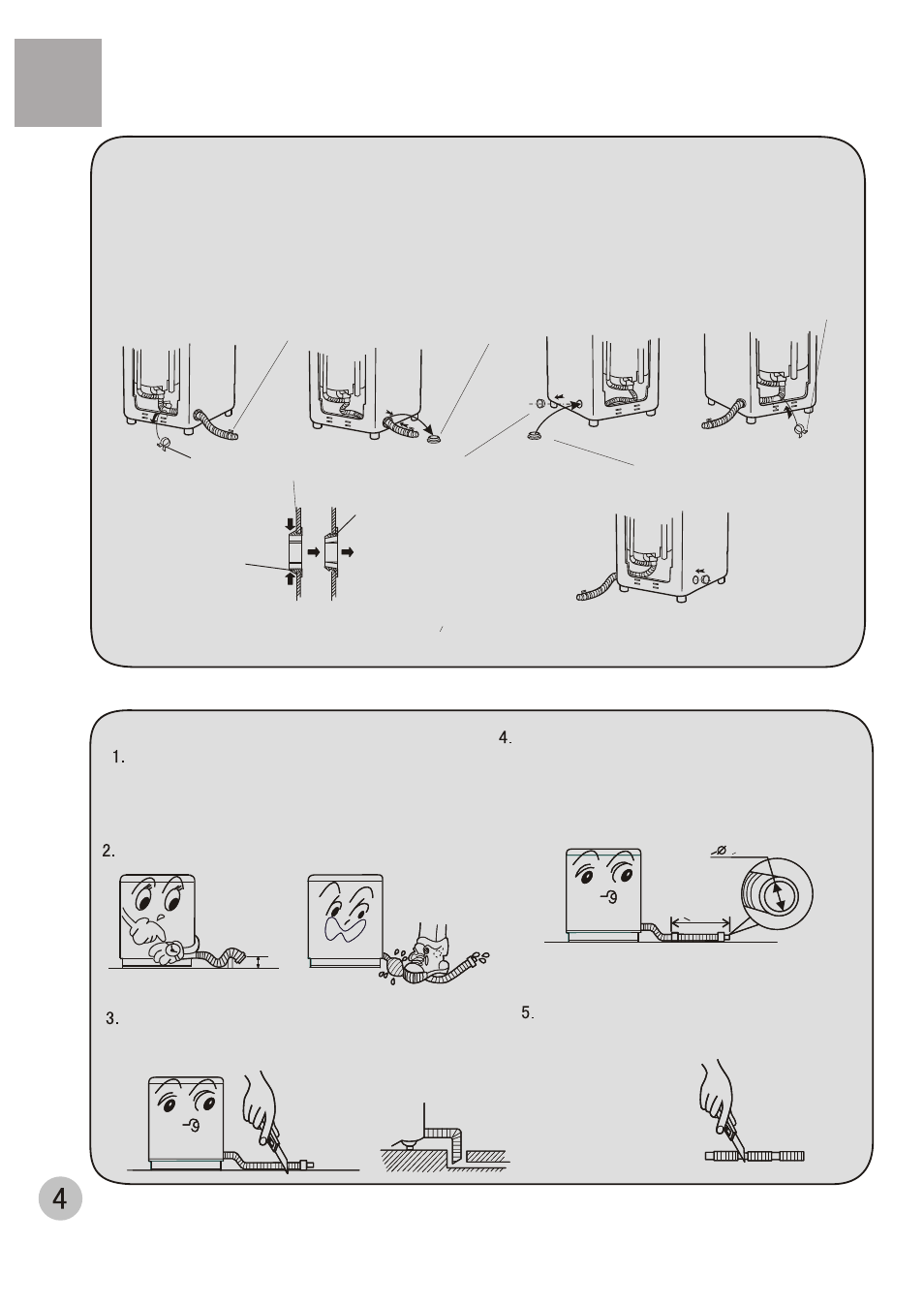

How to change the direction of the drain hose
1. Dismount the back cover of the washing machine.
2. Put down the drain hose. Take off the drain hose
frame. As indicated in Figure 1, put the drain hose
into the cabinet. Then put one hand into the cabinet
to nip the claw of the drain hose bushing to release
the claw from original position. Take off the drain
hose bushing with the other hand. (As indicated in
Figure 2 and 3). 3. Dismount the protecting cover of the drain
outlet at the other side ( method the same as
the drain hose bushing). Install the drain hose
bushing as per indicatedin Figure 4.
4. Extend the drain hose from the other side.
Fix the drain hose onto the cabinet with the
drain hose rack. (As indicatedin Figure 5)
Attention: To guarantee the proper installation, it is suggested to have the direction changing of drain
hose performed by the after-sales service technicians of our company.
drain hose frame
drain hose
Figure1
••••• •••• ••••••••••••
Fi gur e 2
hose bushing claw
cabinet
i nner
dr ai n hose bushing
t ake off
Figure 3
drain protecting cover
drain hose bushing
Fi gur e 4
Fi gur e 5
drain hose bushing
Fi gur e 6
Push
Push
