14 – English
ASSEMBLY

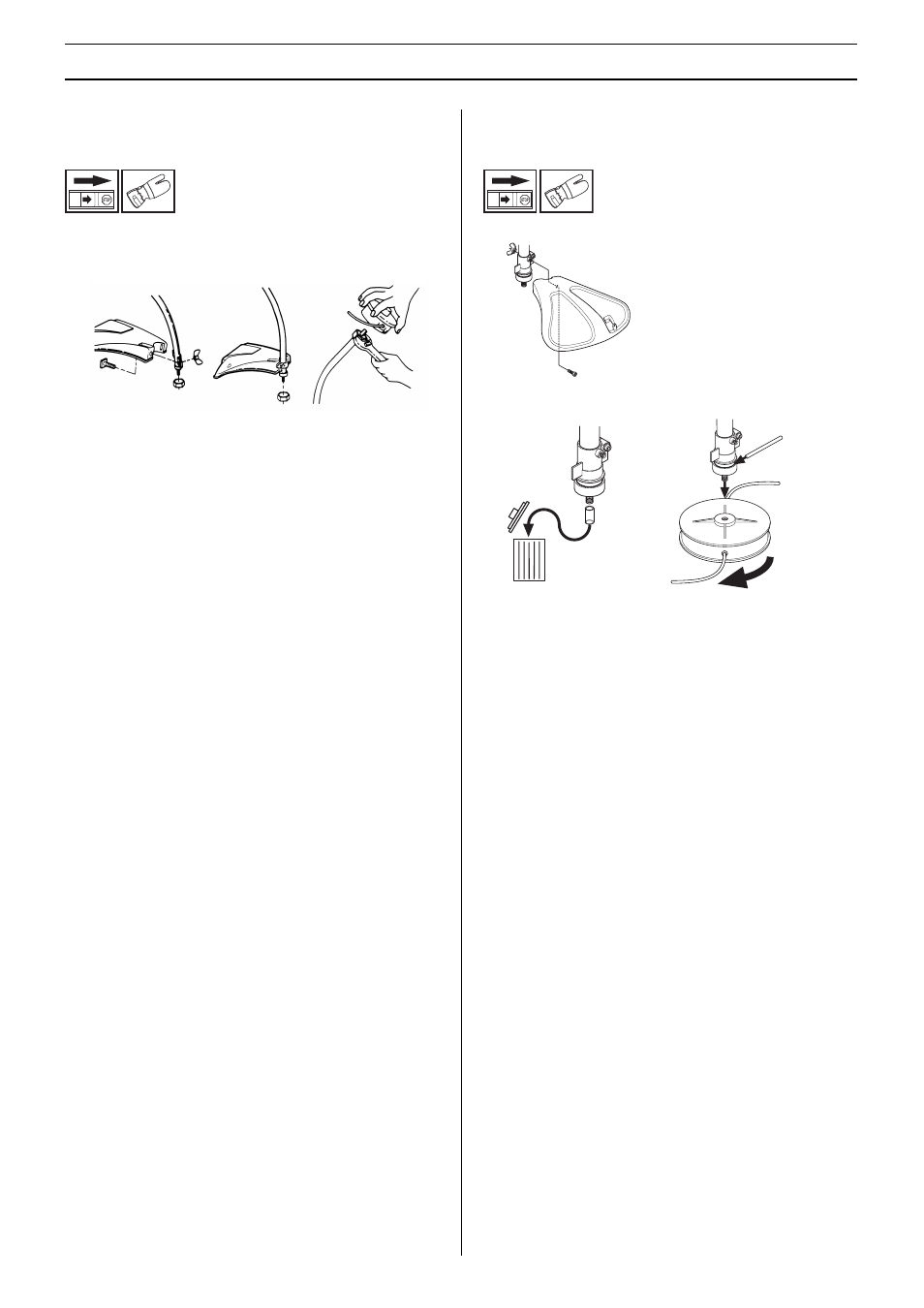

Fitting the trimmer guard and
trimmer head (323C)
Guard
• Fit the guard as shown in the diagram. Tighten securely.
Trimmer head
• Fit the dust cup on the shaft. The nut must be completely
covered by the dust cup.
• Hold the dust cup with a spanner to prevent the shaft from
rotating.
• Screw the trimmer head onto the shaft.
Fitting the trimmer guard and
trimmer head (325Cx)
• Fit the guard as shown in the diagram. Tighten securely.
• Insert the locking pin into the hole to lock the axle.
• Screw the trimmer head onto the shaft.
