-3- 595-5684-08
12345678 12345678
Inside Push
Button
Tune Settings
Your wireless chime has different selectable tunes: Ding (one note), Ding-Dong
(two note), or Westminster (eight note) (Available on selected chimes). The
factory setting is for the Ding-Dong tune (or Westminster, when available). This
tune can be changed by following the instructions below.
•
Ding (one note tune)
Push Button: Add a jumper to location 8.
•
Ding-Dong (two note tune)
Push Button: Remove jumper from location 8.
Chime: Remove jumper from location 8.
•
Westminster (Eight note tune) (Available on selected chimes)
Push Button: Remove jumper from location 8.
Chime: Add a jumper to location 8.
Note: All models have both front and back door tune capabilities. We recommend
the back door use the
Ding tune and the front door use the Ding-Dong tune
(or Westminster tune, available on selected chimes). Models that include two
push buttons will come factory set for front and back doors. Decals on the rear
of the push button will indicate its setting.
Push Button Battery Replacement
Install an alkaline type A23 12 Volt
battery. The positive terminal should be
positioned as shown.
* Code Settings 1-7
Must Match Both
Push Button and
Chime

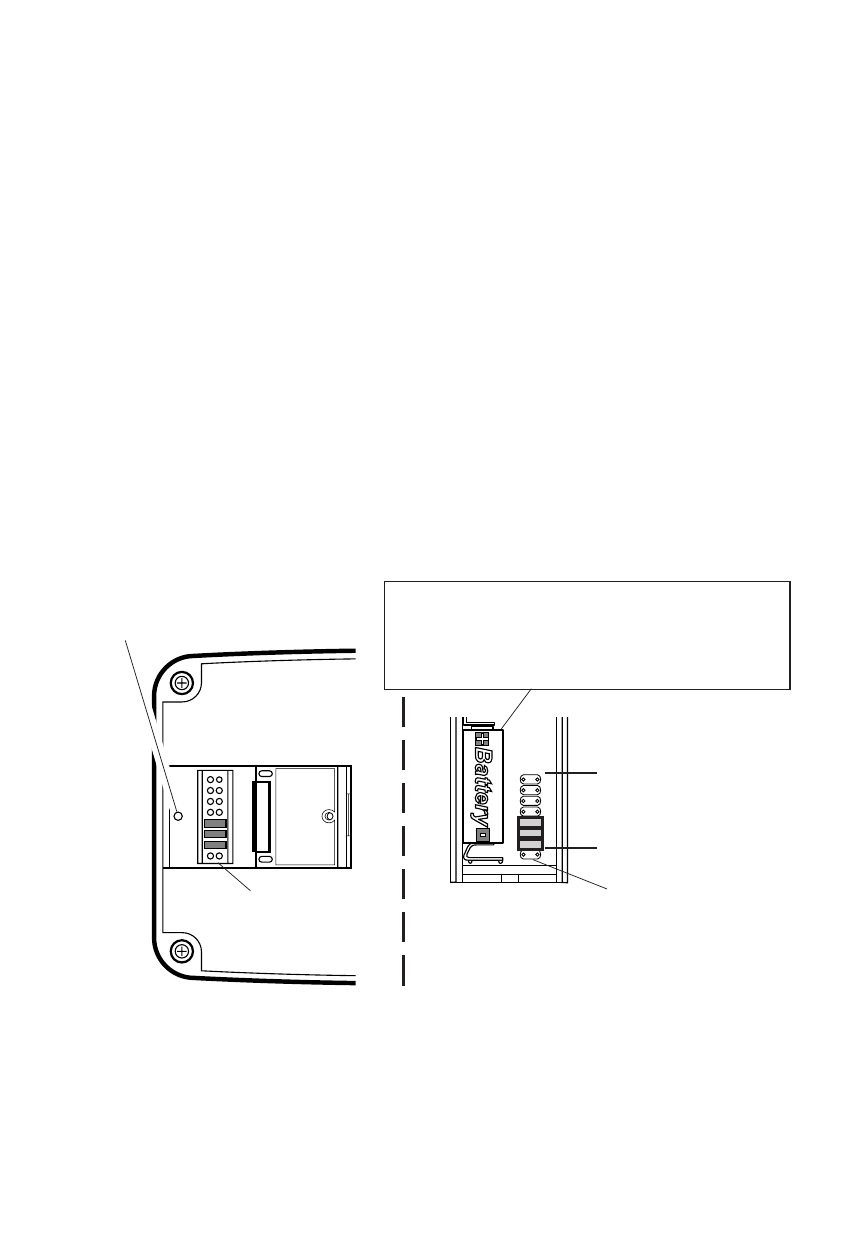

Remove screw to
open access door
Tune Setting
Back of
Chime
Note: Some models might require the use of
tweezers to remove and replace the jumpers.
Tune Setting
(Not used on
all models)
