WHA T IS WHA T?

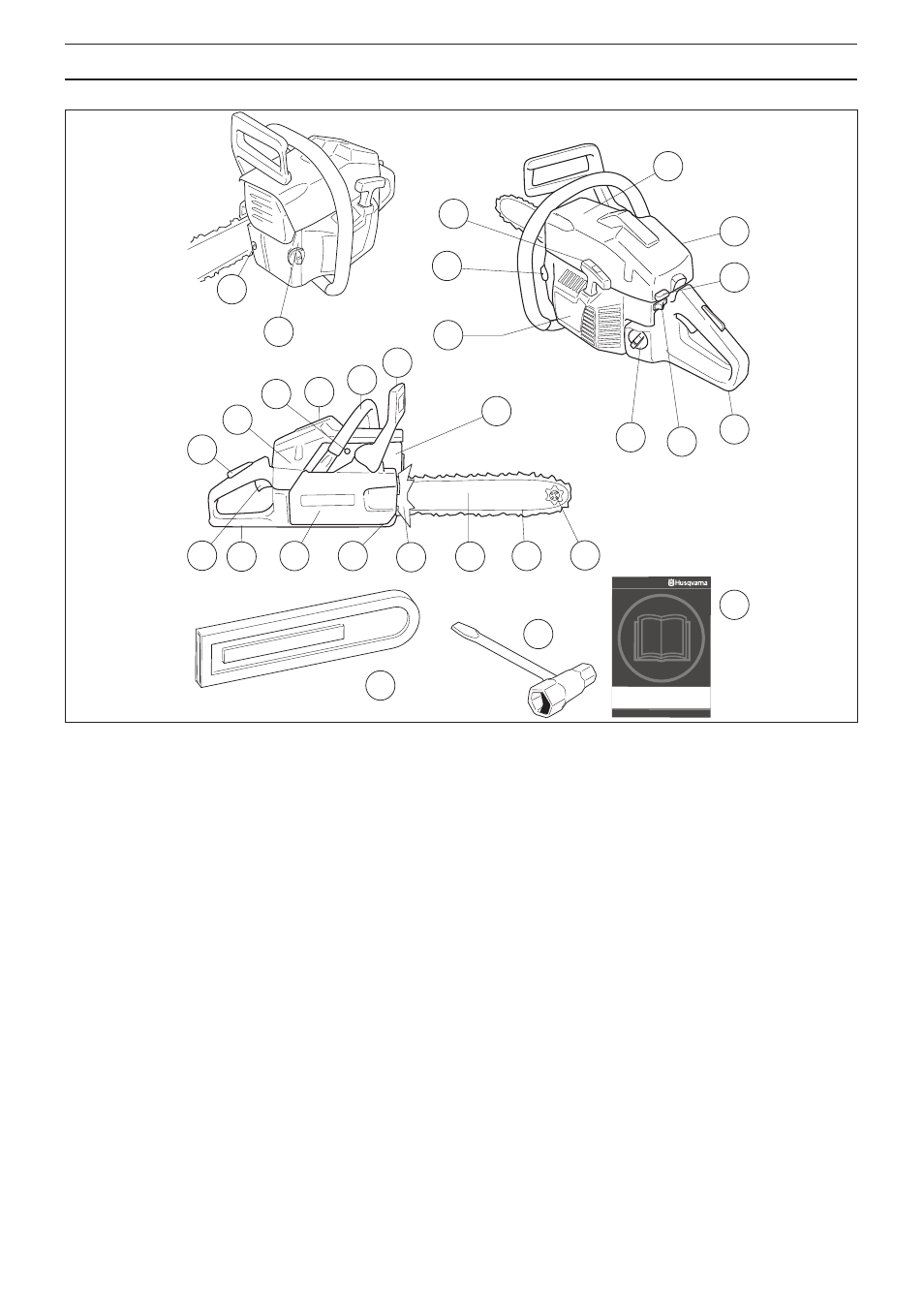

What is what on the c hain saw?
13 14 15 17 18 19 20 16
22
25
24
21
7
23
2
1
3
5
4
6
12
9
10
11
7
8
26
27
28
1 Cylinder cover
2 Front handle
3 Front hand guard
4 Starter
5 Chain oil tank
6 Starter handle
7 Adjuster screws carburettor
8 Choke control/Start throttle lock
9 Rear handle
10 Stop switch (Ignition on/off switch.)
11 Fuel tank
12 Muffler
13 Bar tip sprocket
14 Chain
15 Bar
16 Spike bumper
17 Chain catcher (Catches chain if it jumps or breaks.)
18 Clutch cover
19 Right hand guard (Protects right hand if chain breaks or
jumps.)
20 Throttle control
21 Throttle lock (Prevents accidental operation of throttle
control.)
22 Combination spanner
23 Chain tensioning screw
24 Operator ′ s manual
25 Bar guard
26 Information and warning decal
27 Product and serial number plate
28 Decompression valve
