Heat & Glo • 6000GL-IPI-R, 6000GL-IPI-S • 2102-900 Rev. O • 12/08
69
Service Parts

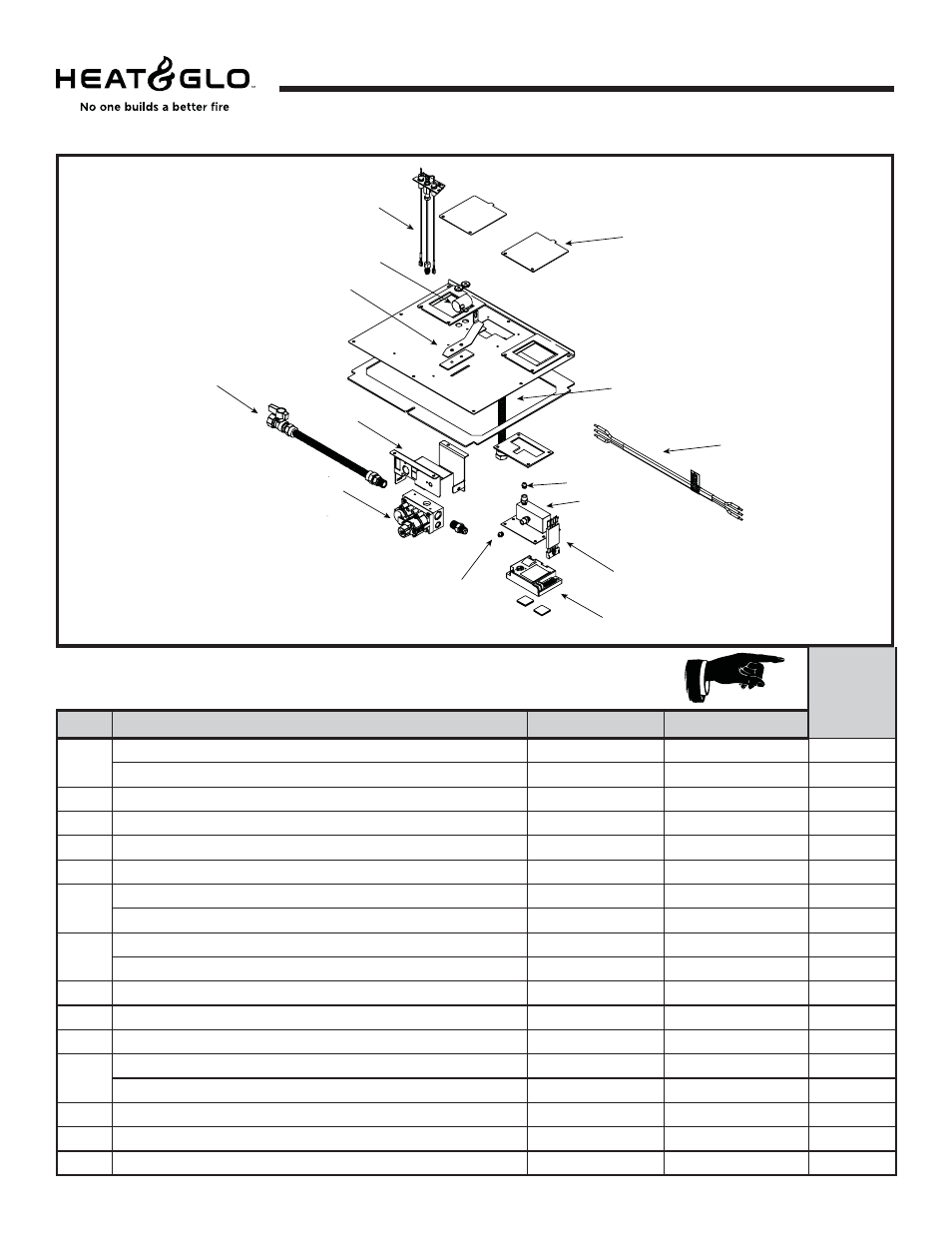

Valve Assembly Diagram/ Parts List
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Beginning Manufacturing Date: May 2006
Ending Manufacturing Date: ______
6000GL-IPI-R,-S
IMPORTANT:THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM
DESCRIPTION
COMMENTS
PART NUMBER
1
Pilot Assembly, NG
2090-012
Y
Pilot Assembly LP
2090-013
Y
2
Shutter Sleeve
2026-130
Y
3
Shutter Bracket Assembly
2026-017
Y
4
Valve Bracket
2118-104
5
Flex Ball Valve assembly
302-320A
Y
6
Valve NG
750-500
Y
Valve LP
750-501
Y
7
Orifi ce NG (#43C)
582-843
Y
Orifi ce LP (#54C)
582-854
Y
8
Control Module
593-592
Y
9
Wire Assembly
593-590A
Y
10
Manifold Assembly, 2 Port
2102-007
Y
11
Orifi ce NG (#53C)
582-853
Y
Orifi ce LP (#68C)
582-868
Y
12
Wall Switch Wire
2095-550
Y
13
Flex 12
2101-293
Y
14
Light Box Cover
2102-107
Intermittent Pilot Ignition
Valve Assembly
