HONDA 08E02-SHJ-100B User Manual
Page 4
4 of 12
AII 38137-38714 (0801)
© 2008 American Honda Motor Co., Inc. - All Rights Reserved.
7517042E
4301210B

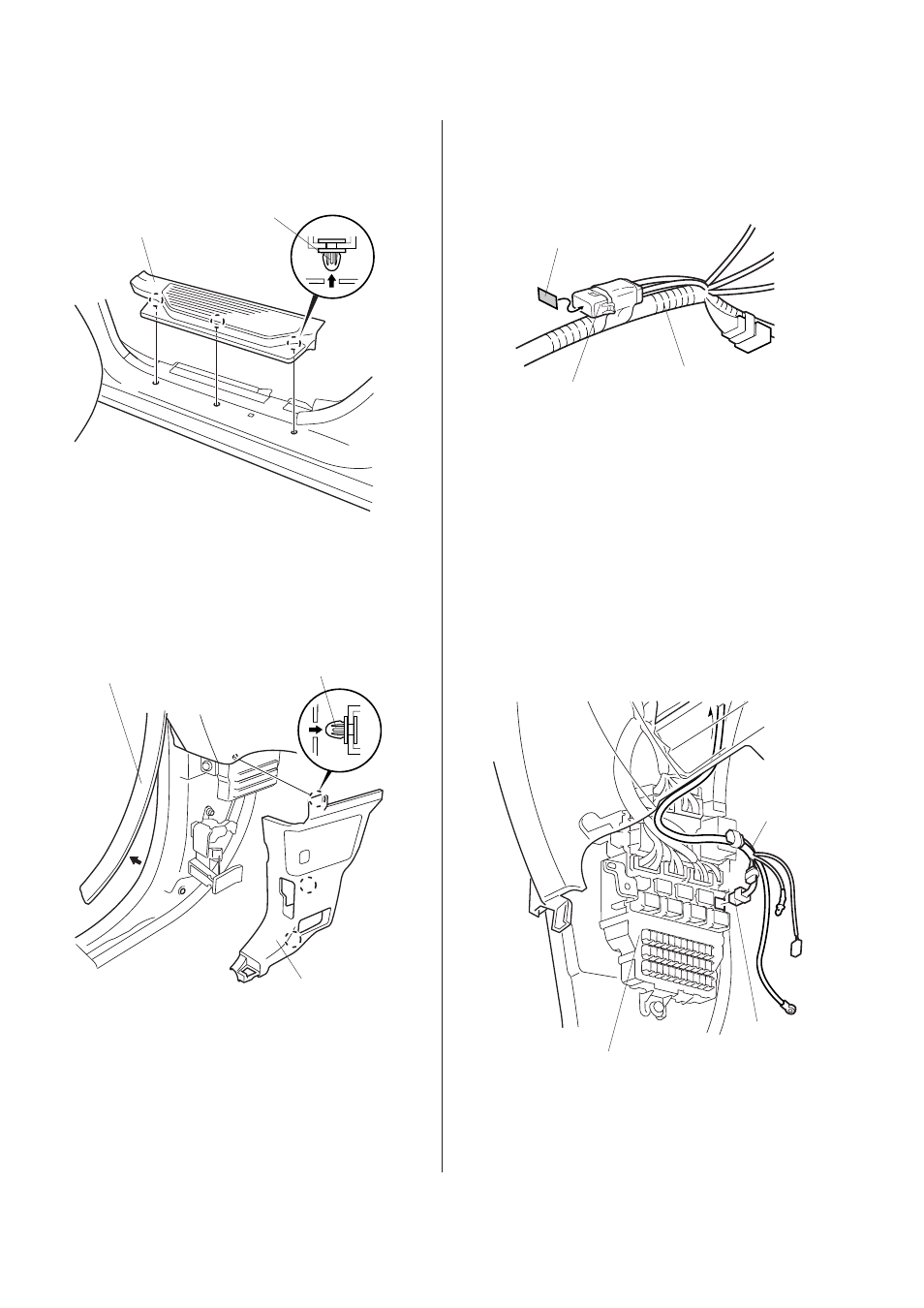

13. Plug the HFL subharness 6-pin connector into the
6-pin opening in the fuse box.
12. Attach the fuse label (2 A) to the fuse case of the
HFL subharness.
4301221B
3 CLIPS
LEFT FRONT
DOOR SILL TRIM
3 CLIPS
LEFT KICK
PANEL
HFL
SUBHARNESS
6-PIN
CONNECTOR
FUSE
BOX
10. Remove the left front door sill trim (three clips).
11. Pull away the weatherstrip from the left kick panel.
Remove the left kick panel (three clips).
7821100B
FUSE LABEL (2 A)
HFL
SUBHARNESS
HFL
SUBHARNESS
FUSE CASE
WEATHERSTRIP
