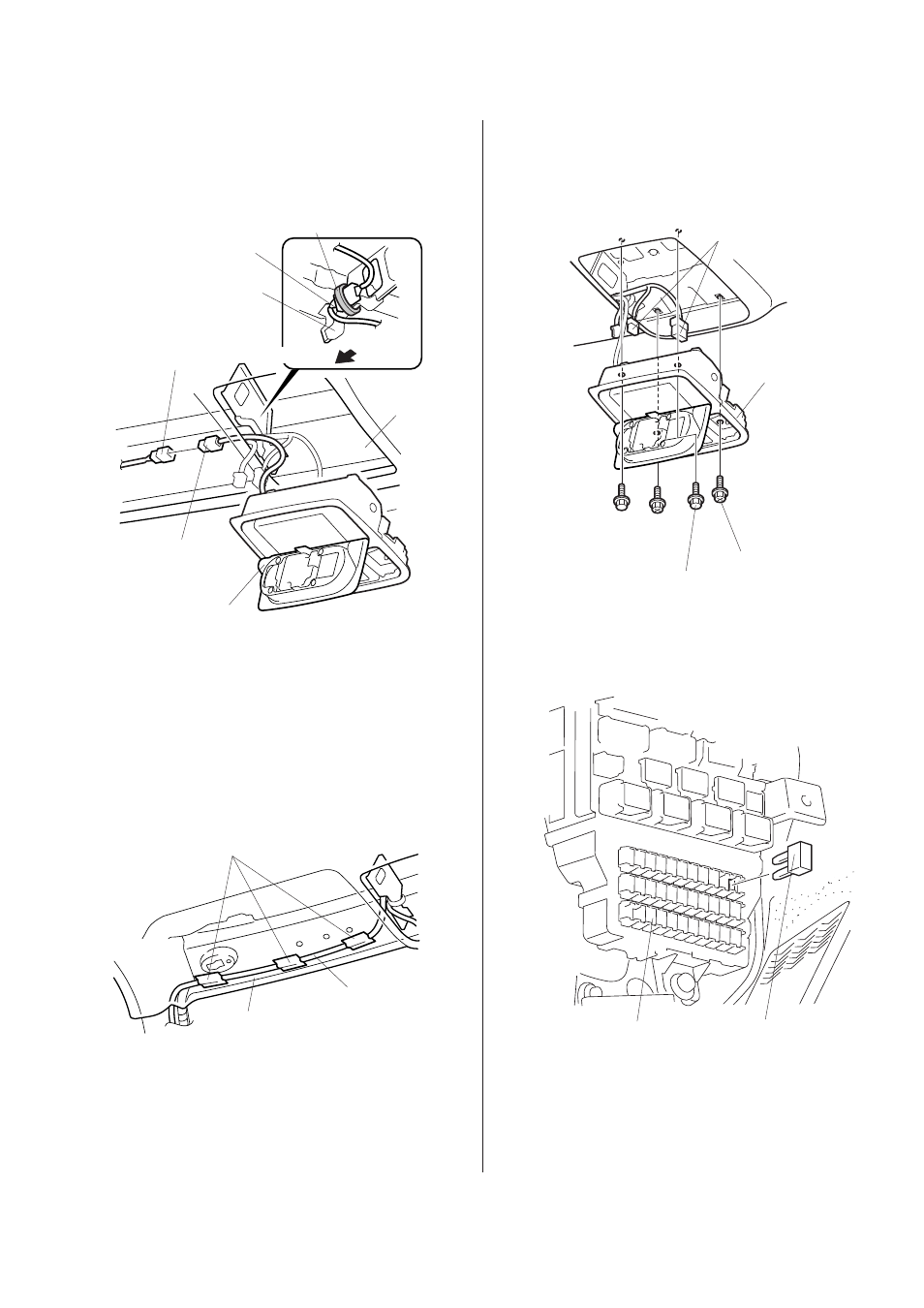

55. Hold the roof console close to the roof console

opening and connect the HFL harness 4-pin
connector to the HFL subharness 4-pin connector.

58. Connect the vehicle connectors to the roof

console. Reinstall the roof console with the four
bolts from step 5.

59. Install the fuse (2 A) into the fuse box at the

indicated position.

7518030E

3 EPT

SEALERS

ROOF

PANEL

HFL

SUBHARNESS

2 BOLTS

ROOF

CONSOLE

VEHICLE

CONNECTORS

FUSE (2 A)

FUSE BOX

ROOF

CONSOLE

ROOF

CONSOLE

OPENING

GREEN

CONNECTOR

WIRE TIE

VEHICLE

BRACKET

Vehicle front

HFL

SUBHARNESS

4-PIN

CONNECTOR

HFL HARNESS

4-PIN

CONNECTOR

56. Secure the connector with a wire tie to the vehicle

bracket.

57. Using isopropyl alcohol on a shop towel, clean the

area where the EPT sealer will attach. Secure the
HFL subharness to the vehicle roof panel inside
the roof lining with three EPT sealers.

2 BOLTS
