WHAT IS WHAT?
13. Lock for handle
14. Fuel tank
15. Fuel cap
16. Air purge
17. Choke
18. Air filter cover
19. Hand guard
20. Tube of grease
21. Allen key
22. Spark plug spanner
23. Blade cover (Transport)

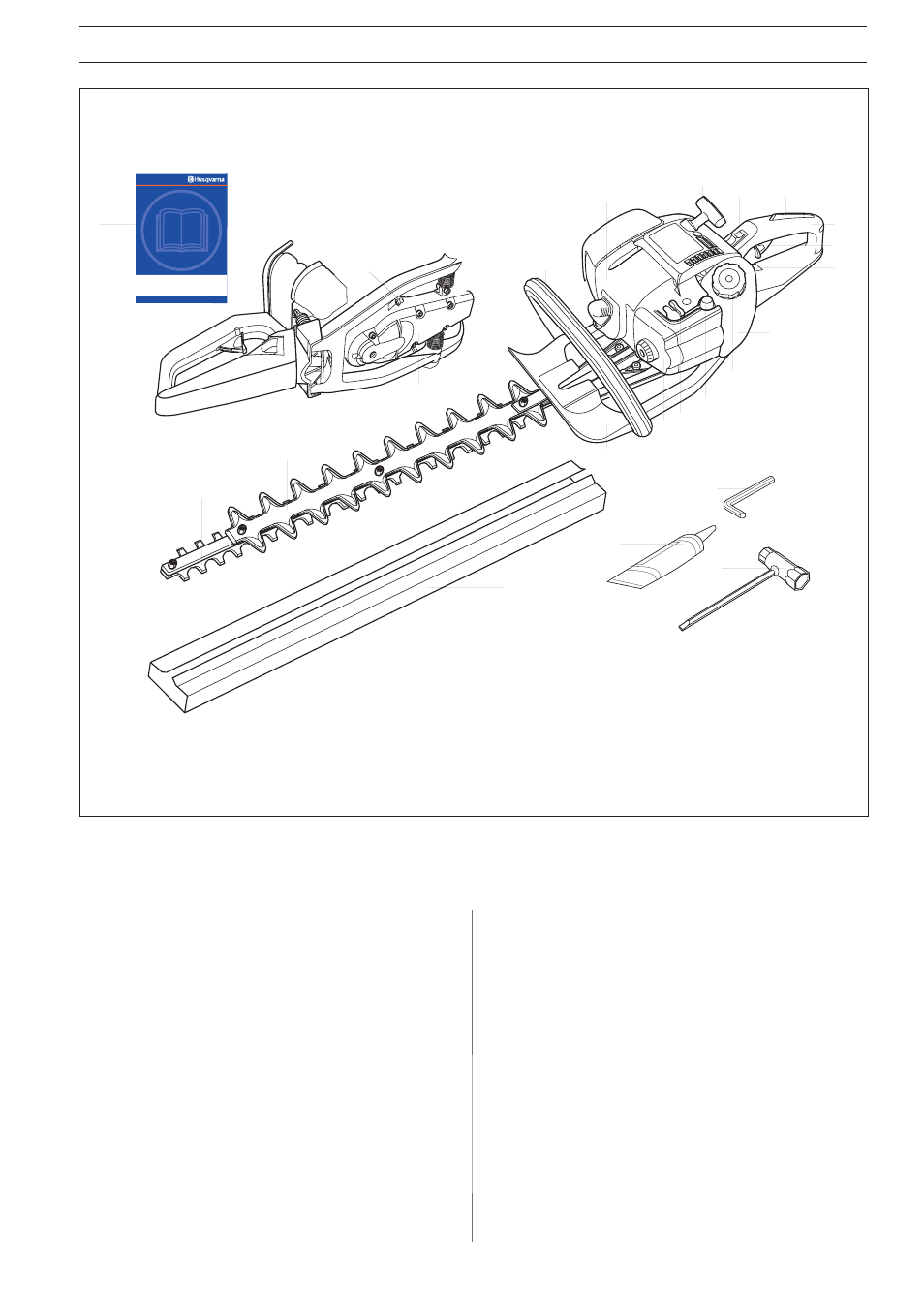

What is what on the hedge trimmer?
1. Operator’s Manual
2. Grease filler cap
3. Gearbox
4. Blades
5. Blade guard
6. Loop handle
7. Cylinder cover
8. Starter handle
9. Stop switch
10. Throttle trigger lock
11. Adjustable handle
12. Throttle trigger
