5
Installation Clearances
If the range must stand beside a refrigerator, it is important for proper air circulation, that there be at least
5" of space between the two appliances.
Do not install range closer than 1/2" from adjacent surfaces.
To eliminate the risk of burns or fire by reaching over heated surface units, installation of cabinet storage
space above the surface units should be avoided. If there is existing cabinet storage space have at least
30" of clearance. (see fig 3)
For best cooking results, your range should be level. This can be checked with a carpenter’s level
on top of the cooking surface and across the oven rack. If levelling is required, adjust the leveller screws
under one or more of the legs (see "Positioning the Range" step 4).
min 18"
457 mm
0
0
1"
25 mm
min
30 1/4"
768 mm
min
36 "
914 mm
min 18"
457 mm
0
0
0
min
30 1/4"
768 mm
max
36 "
914 mm

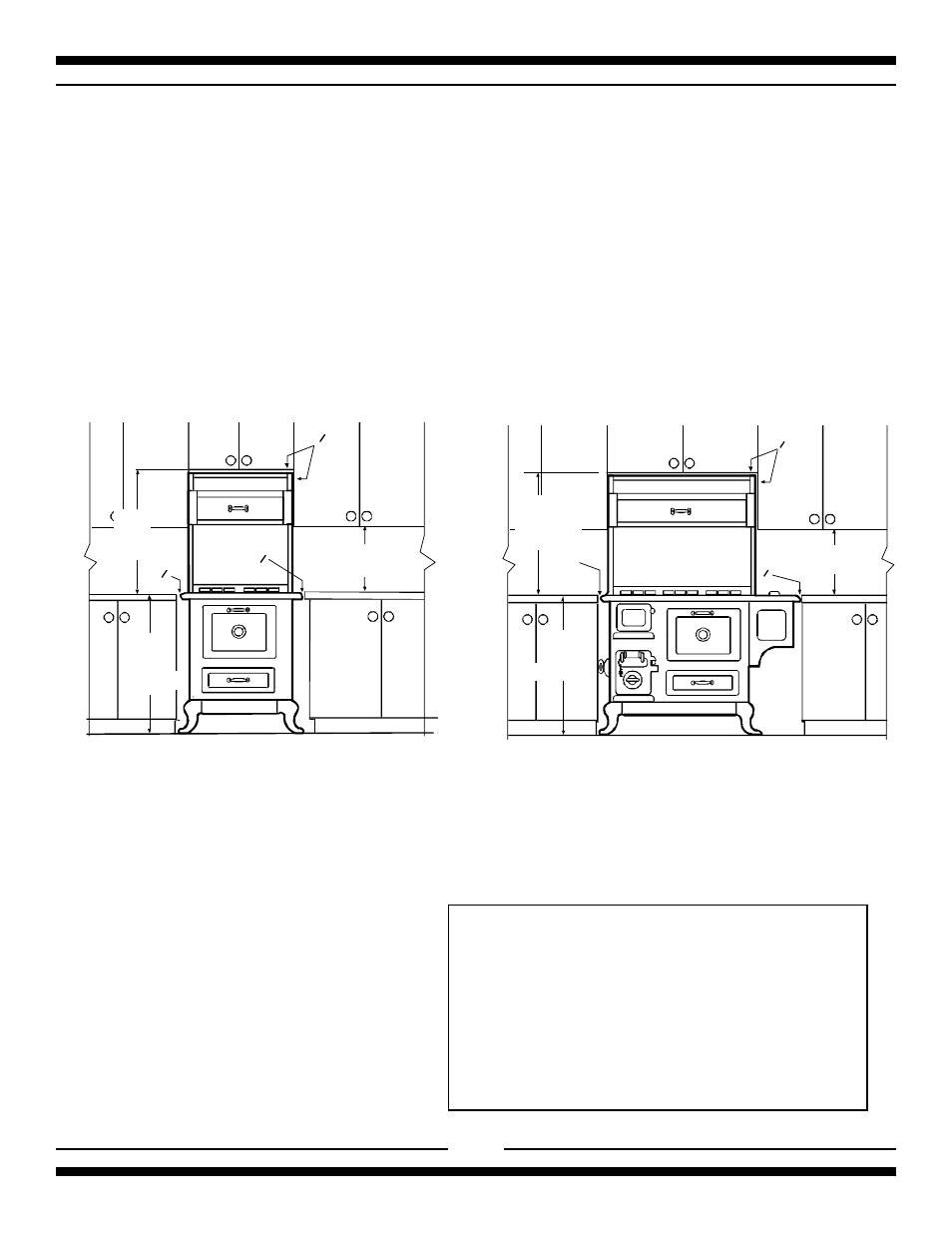

Model 7100 Installation Clearance Model 9100 Installation Clearance
Fig 3 Installation Clearances
The clearances in the table are also stated on the
rating plate and on a reproduction of the plate on the
back page of this manual. (see "installation
clearances" diagram Fig. 3)
Installation Clearances
Surface adjacent to cook top-left (7100) .............. 1” (25mm)
Surface adjacent to cook top-right (7100) ............ 0” (0 mm)
Surface adjacent to cook top (9100) .................... 0” (0 mm)
Surface adjacent to warming oven ........................ 0” (0 mm)
Cook top to underside of adjacent cabinets ... 18” (457 mm)
Cook top to underside of cabinets ............. 30 1/4” (768 mm)
Maximum depth of overhead cabinets ............ 13” (330 mm)
Maximum depth of counters .......................... 24” (610 mm)
Maximum height of counters .......................... 36” (914 mm)
Rear clearance ..................................................... 0” (0 mm)
