6

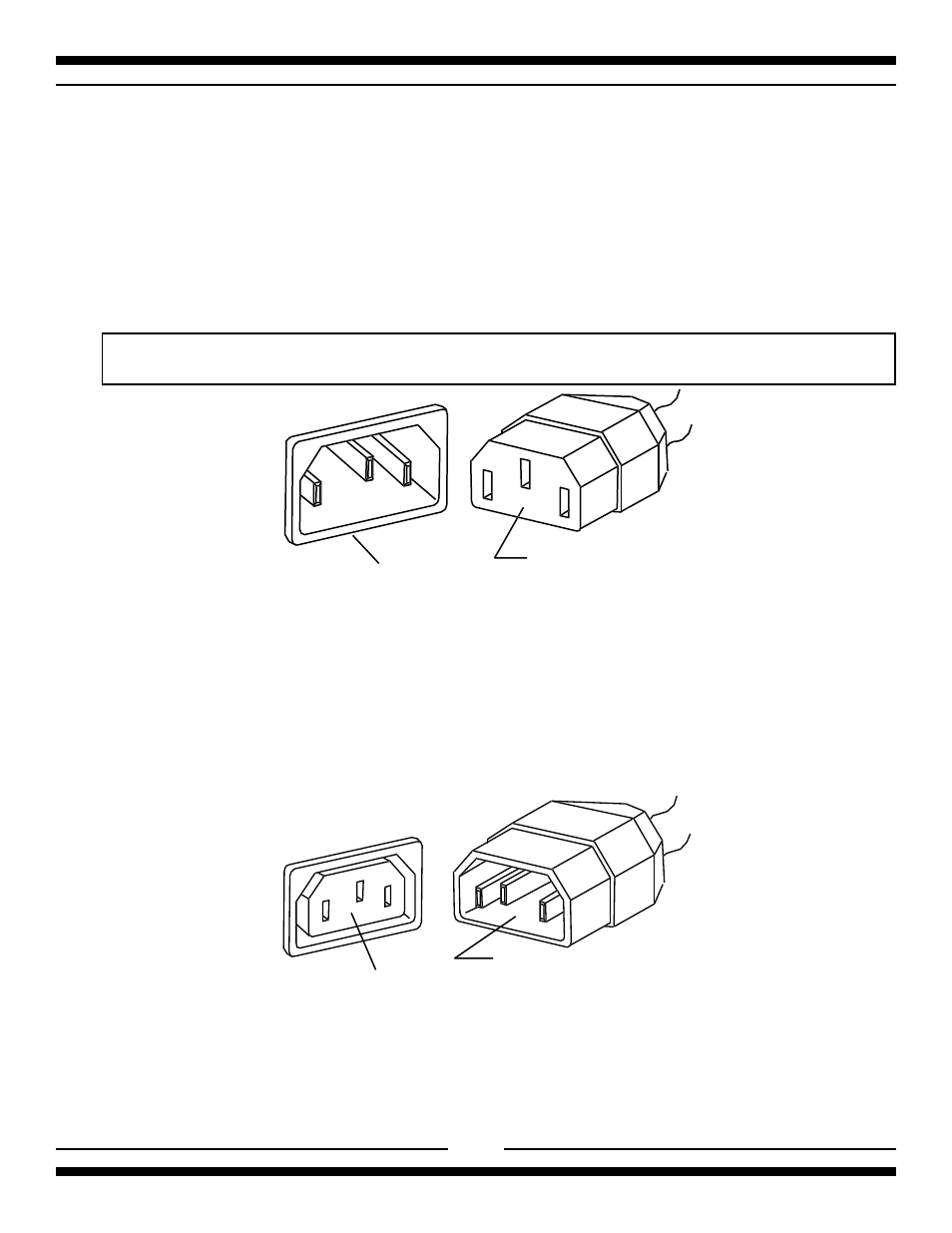

Cabinet power hook-up
Figure 5
male end of the
cabinet power cord
female receptacle
Exhaust Hood Electrical Connection
After your exhaust hood has been installed the very last thing to do is to connect the special plug to the range. The
female receptacle for the exhaust hood is located at the rear of the stove by the main power (male) receptacle (See
page 8 for receptacle locations and figure 5 for receptacle illustration). Simply plug the cabinet power cord into the
receptacle, be sure to test all functions of the cabinet.
Electrical Installation
THE MODEL 7100/9100 GAS RANGE MUST BE ELECTRICALLY GROUNDED IN COMPLIANCE WITH LOCAL
CODES AND IN THE ABSENCE OF LOCAL CODES, WITH THE NATIONAL ELECTRICAL CODE ANSI/NFPA
70 “LATEST EDITION” IN THE U.S. OR THE CANADIAN ELECTRICAL CODE, PART I, CSA STANDARD C22.1
IN CANADA or YOUR NATIONAL ELECTRICAL CODE
Connect the female end of the power cord to the main power (male) receptacle at the rear of the stove. See page 8 for
receptacle locations and figure 4 for receptacle illustration
This range must be plugged into a properly grounded/earth, receptacle. The grounding/earth prong must not be removed,
from the plug. DISCONNECT THE ELECTRICAL SUPPLY BEFORE SERVICING THE APPLIANCE.
The receptacle to be used for this appliance must be wired to STANDARD WIRING PRACTICES.
male receptacle
female end of
the power cord
Main power hook-up
Figure 4
