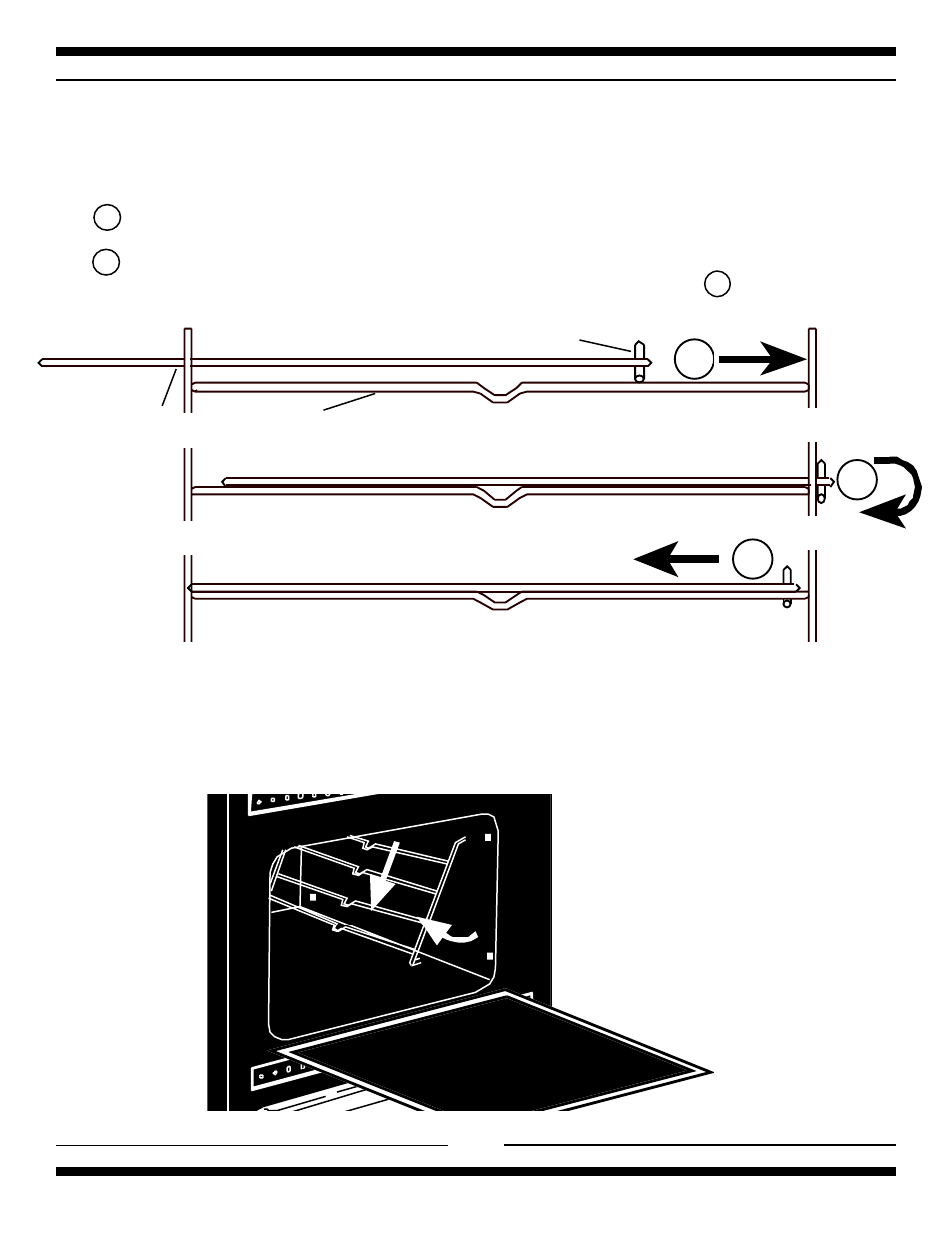

Rack Support Oven rack
Oven rack "feet"
1
3
2
Rack Supports
The oven rack supports are designed to interlock into the oven sides but are easy to remove. First remove
oven racks, then grasping the lower portion of the rack support swing it out to approx. 45 degrees and gently
pull down. Assemble in reverse order.
Interior Oven Rack
The oven rack is designed with stop-locks so that when placed correctly on the supports, it (a) will stop before
coming completely out of the oven, (b) will not tip when placing or removing food.
To install, place the rack "feet" on the rack support and push the oven rack backward along the rack support.
(see 1 )
Push the oven rack all the way to the back until the oven rack slips off the end of the rack support.
(see 2 )
Then pull rack support ahead slightly to engage the "feet" with the rack support. (see 3 ) To remove reverse
assembly procedure.
