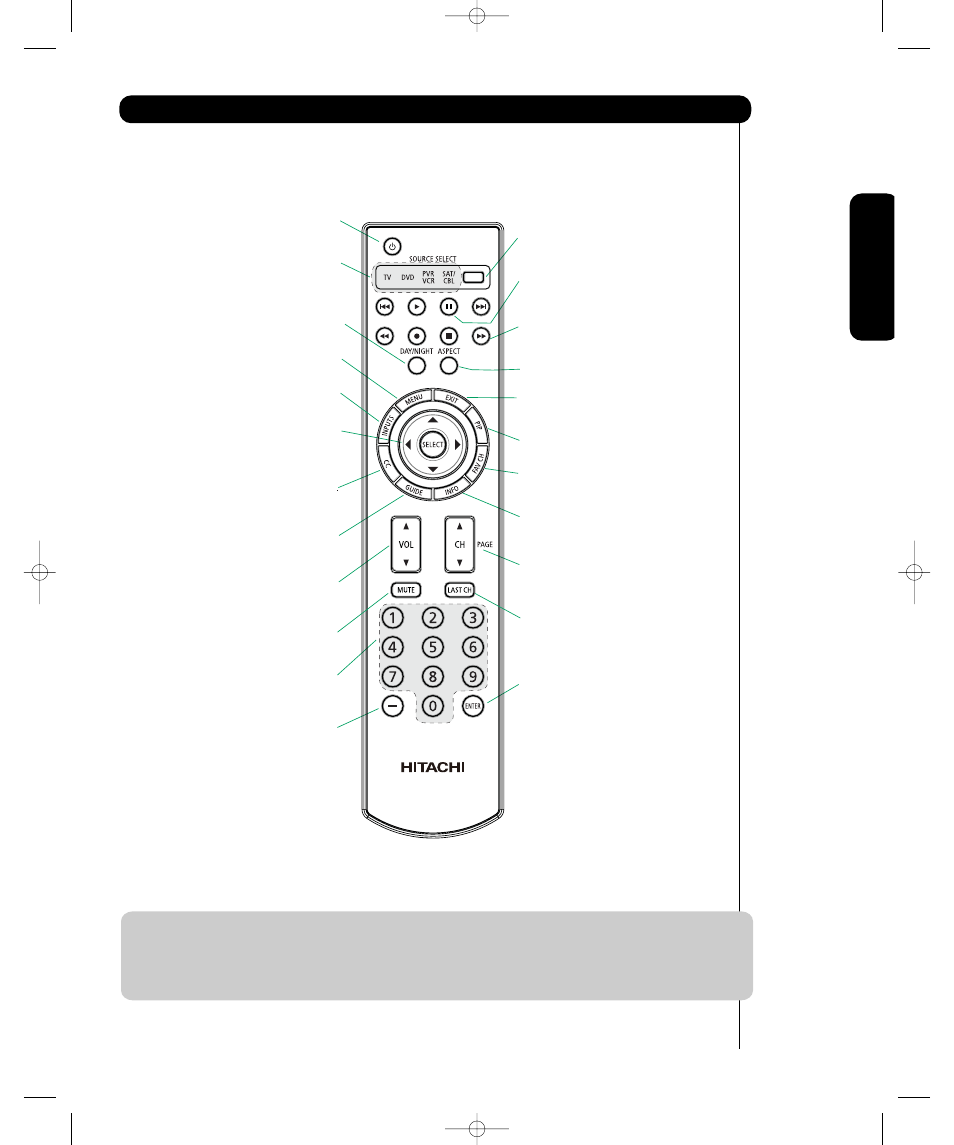

Quick Reference Remote Control Buttons and Functions
In addition to controlling all of the functions on your HITACHI Plasma TV, the new remote control is designed to
operate different types of devices, such as, DVD Players, CBL (Cable Boxes), set-top-boxes, satellite receivers,
and VCRs. The remote control must be programmed to control the chosen device. Please see pages 23-38 for a
complete description of all features and programming of the Remote Control.
NOTES: 1. The TV’s remote control sensor is located on the right bottom portion of the TV screen. To
control TV functions, please point the remote control directly at the remote control sensor for
best results.
2. VCR precode is included in the PVR mode.
LEGEND
TV
– Television PVR – Video Recorder/Player
CBL – Cable Box DVD – Digital Video Disc Player
SAT – Satellite
POWER BUTTON
(TV, DVD, SAT/CBL,PVR/VCR)
Turns the selected device on and off. SOURCE
SELECT BUTTON
(TV, DVD, PVR/VCR, SAT/CBL)
Changes the mode of the Universal Remote
Control to control the device selected.
DVD/VCR CONTROL BUTTONS
(DVD, PVR/VCR)
Controls the functions of your VCR,
DVD and audio devices.
DAY/NIGHT BUTTON
(TV)
Toggles picture mode settings
between DAY and NIGHT mode.
ASPECT BUTTON
(TV)
Changes the aspect ratio of the TV.
PIP CONTROL BUTTON
(TV)
Press to show and change the Picture-in-Picture mode.
MENU BUTTON
(TV,DVD,SAT/CBL,PVR/VCR)
Accesses the OSD menu system.
(-) BUTTON
(TV,STB)
The (-) button is used when the remote is in
Set-Top-Box (STB) mode or when the TV uses a
digital input.
NUMERIC BUTTONS
(TV, DVD, SAT/CBL, PVR/VCR)
Used to manually enter the TV channel, and used
for numeric entry when navigating through the
the OSD, INPUTS.
GUIDE BUTTON
(SAT/CBL, PVR)
Accesses the program guide of other devices.
EXIT BUTTON
(TV, SAT/CBL, PVR/VCR)
Exits out of the OSD, INPUTS menu
systems if their menu is displayed.
LAST CHANNEL BUTTON
(TV, SAT/CBL, PVR)
Switches between the current and last channel viewed.
ENTER BUTTON
Press to use as SELECT feature.
Can only be used on TV mode.
INFO BUTTON
(TV, STB, CBL, PVR)
Displays various information on the
screen, such as channel information.
CHANNEL UP & DOWN BUTTONS
(TV, CBL, STB, PVR/VCR)
Changes up or down the channel.
CURSOR PAD/SELECT BUTTON
(TV, DVD, SAT/CBL,PVR/VCR)
The Cursor Pad is used as a cursor to navigate
through the OSD and INPUT menu systems.
The Select button is used to Select/Activate
highlighted menu items.
VOLUME BUTTONS
(TV)
Increase up and decrease down to adjust
the audio level of your TV.
PAUSE BUTTON
(TV,PVR/VCR, DVD)
Press to show and change the Freeze mode of the TV.
Also used to pause other devices when the remote is in
DVD, PVR/VCR.
INPUTS BUTTON
(TV)
Accesses the INPUTS menu system.
MODE INDICATOR
Turns on or blinks to show remote control
mode when the SOURCE ACCESS buttons
are pressed.
Closed Caption (CC) BUTTON
(TV)
MUTE BUTTON (TV)
Reduces the audio level to 50% if pressed
once, and to complete mute if pressed
twice. Press it a third time to restore audio
level.
FAVORITE CHANNEL
(FAV CH) button (TV)
Press to enter/access Favorite Channel (FAV CH) mode.
(Favorite channel is only available for TV mode.) Press to show and change the
Closed Caption mode.
First time use
VCR – Videocassete Recorder
