Fitting other guards and cutting attachments, Assembly – Husqvarna 326L User Manual
Page 13
English
– 13
ASSEMBLY
Fitting other guards and cutting
attachments
•

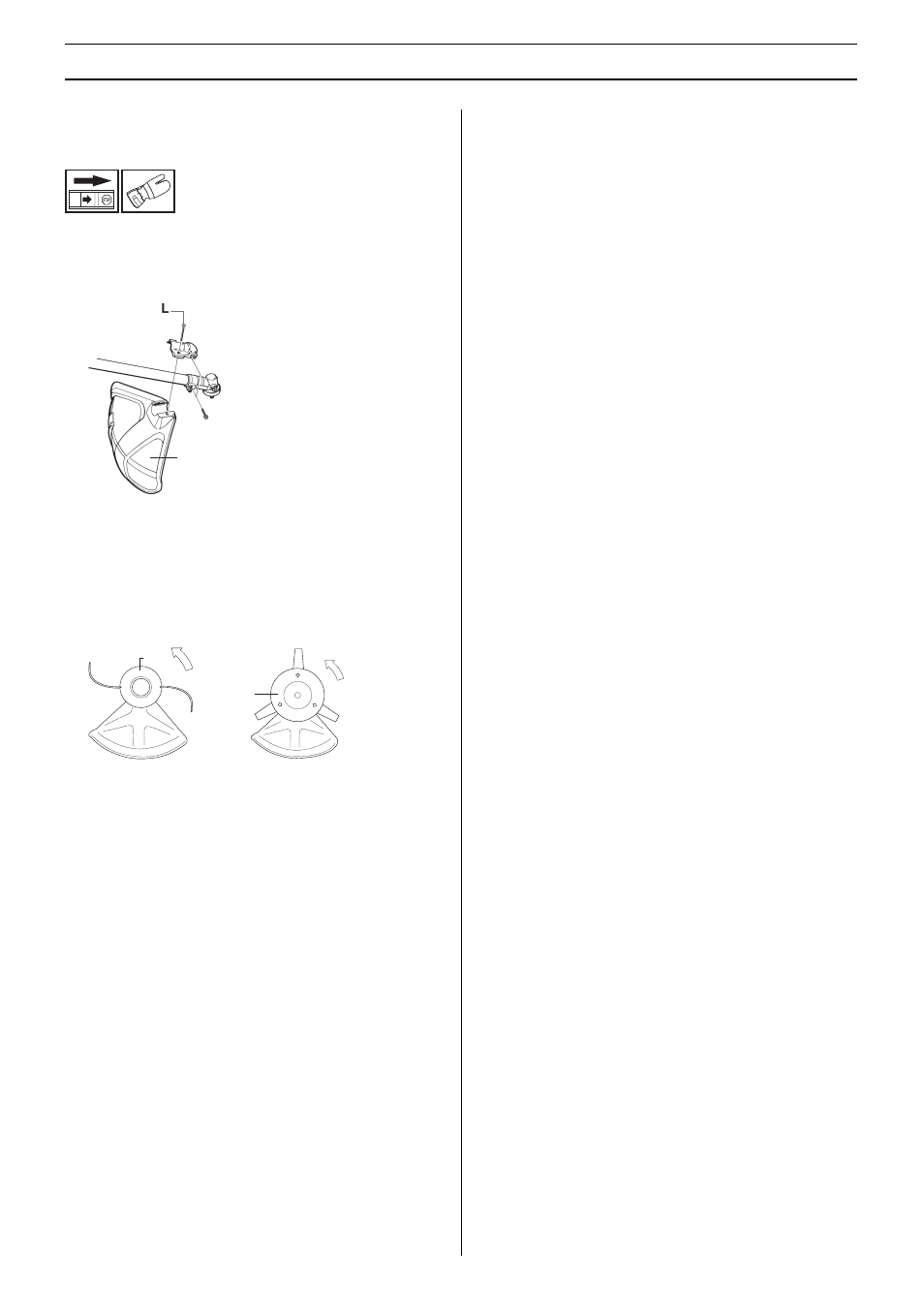

Fit the correct trimmer guard (A) for use with the trimmer
head.
Hook the trimmer guard/combination guard onto the fitting
on the shaft and secure with the bolt (L).
•
Fit the drive disc (B) on the output shaft.
•
Turn the blade shaft until one of the holes in the drive disc
aligns with the corresponding hole in the gear housing.
•
Insert the locking pin (C) in the hole to lock the shaft.
•
Screw on the trimmer head/plastic blades (H) in the
opposite direction to the direction of rotation.
•
To dismantle, follow the instructions in the reverse order.
