10
INTRODUCTION
IMPORT
ANT
PRECAUTIONS
ASSEMBL
Y
BEFORE
YOU
BEGIN
TREADMILL OPERA
TION
LIMITED
W
ARRANTY
TROUBLESHOOTING
&
MAINTENANCE
CONDITIONING
GUIDELINES
11
INTRODUCTION
IMPORT
ANT
PRECAUTIONS
ASSEMBL
Y
BEFORE YOU
BEGIN
TREADMILL OPERA
TION
CONDITIONING GUIDELINES
TROUBLESHOOTING &
MAINTENANCE
LIMITED WARRANTY

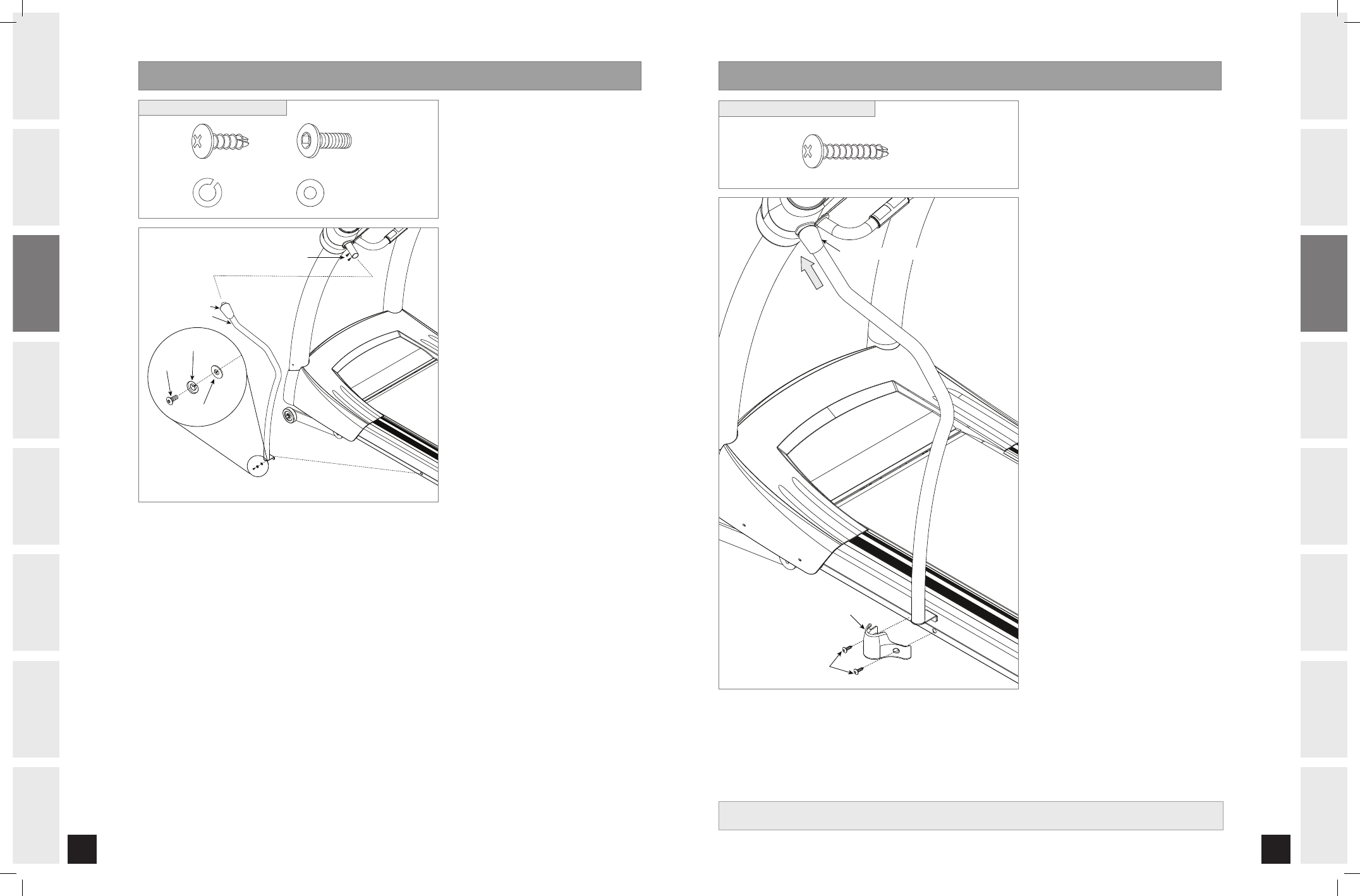

A Open WHITE HARDWARE BAG.
B Slide HAND RAIL SLEEVE over
the top of the hand rail.
C Attach top of HAND RAIL to
the console extension using 2
SCREWS (G).
D Attach bottom of HAND RAIL to
the base frame using 1 BOLT
(H), 1 SPRING WASHER (I) and
1 WASHER (j).
E Slide HAND RAIL SLEEVE firmly
against console.
F Repeat on other side.
ASSEMBLY STEP
SCREW (G)
15 mm
Qty: 4 BOLT (H)
30 mm
Qty: 2
WASHER (J)
8 mm DIAMETER
Qty: 2
SPRING WASHER (I)
8 mm DIAMETER
Qty: 2
WHITE HARDWARE BAG CONTENTS :
HAND RAIL
HAND RAIL SLEEVE
WASHER (J)
BOLT (H)
SPRING WASHER (I)
SCREW (G)
YOU’RE FINISHED!
A Open ORANGE HARDWARE BAG.
B Attach HAND RAIL BASE COVER to
the base frame using
2 SCREWS (K).
C Slide HAND RAIL TRANSITION
PIECE and HANDLEBAR into
CONSOLE.
C Repeat on other side.
D Be sure all bolts and screws are
tightened and secured on the
treadmill.
ASSEMBLY STEP 4
SCREW (K)
30 mm
Qty: 4
ORANGE HARDWARE BAG CONTENTS :
SCREW (K)
HAND RAIL BASE COVER
HAND RAIL TRANSITION PIECE
T4_T6_Rev.1.7.indd 10-11 10/19/06 9:22:00 AM
