CAUTION
BE CERTAIN THAT THE ELECTRICITY IS TURNED OFF AT THE
MAIN PANEL BEFORE STARTING THIS SECTION.
! !
CAUTION
NO BARE WIRES OR WIRE STRANDS SHOULD
BE VISIBLE AFTER MAKING CONNECTIONS.
! !
9

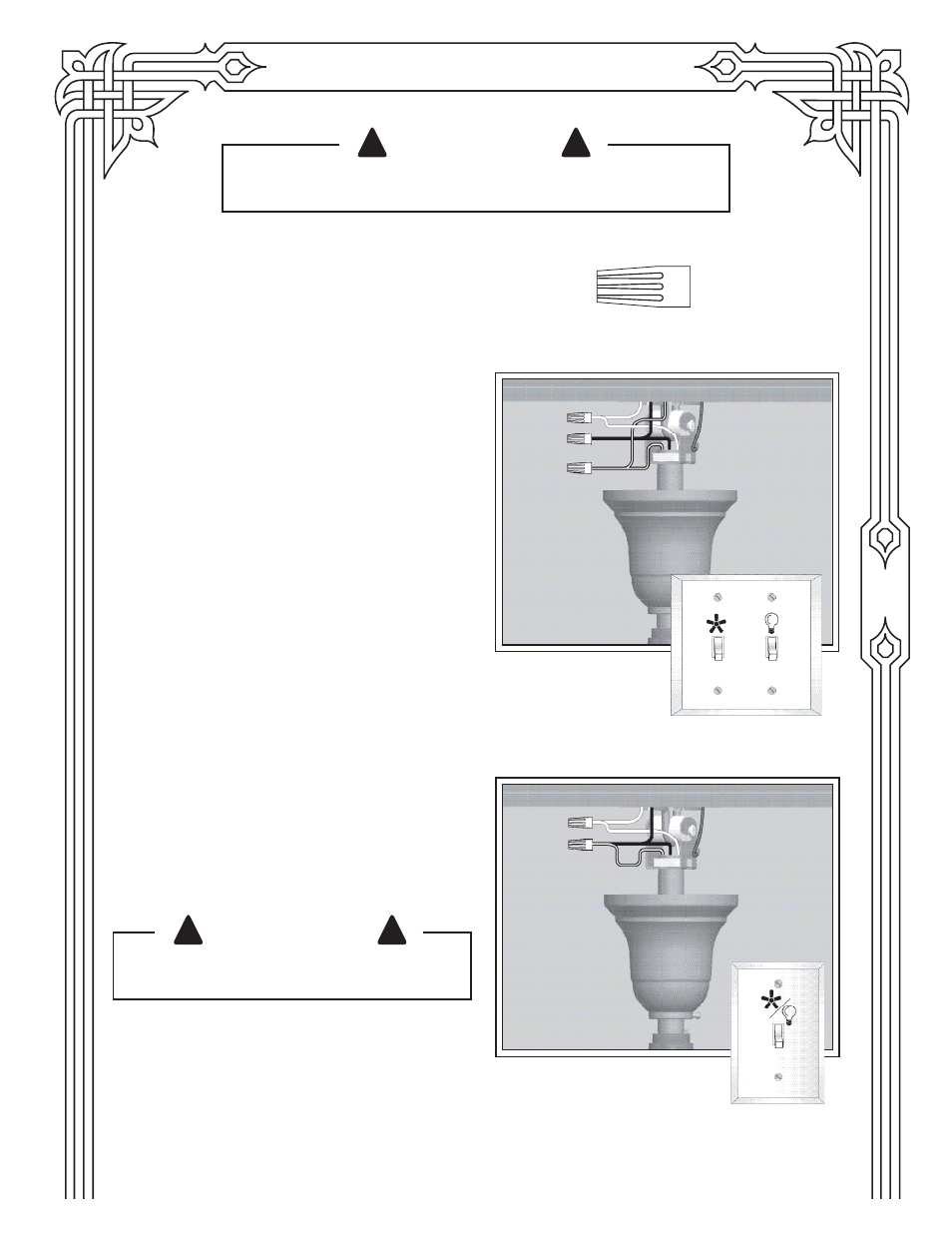

Wiring the Fan
NOTE: All wiring must be in accordance with
national and local electrical codes and ANSI/
NFPA 70-1999. If you are unfamiliar with
wiring, use a qualifi ed electrician.
Wall switches are not included. Select an
acceptable general-use switch in accordance with
national and local electrical codes.
1. Before attempting installation, make sure the
power is still off.
2. To connect the wires, hold the bare metal
leads together and place a wire nut over them,
then twist clockwise until tight. For all these
connections use the wire nuts provided.
3. Connect the bare or green ground wire
(grounded) from the ceiling to the side of the
hanger bracket assembly.
4. Connect the white wire (ungrounded) from the
ceiling to the white wire (ungrounded) from
the fan.
5. Connect the remaining wires as follows:
Dual Switch Wiring (see Fig. 9):
• Th
e black wire (ungrounded) from the ceiling
to the black wire (ungrounded) from the fan.
• Th e black/white wire (ungrounded) from the
fan to the wire (ungrounded) from the wall
switch.
Single Switch Wiring (see Fig. 10):
• The black wire (ungrounded) from the ceiling
to the black (ungrounded) and the black/white
wire (ungrounded) from the fan.
Fig. 9
6. Turn the splices upward and push them
carefully into the outlet box.
7. Spread the wires apart, with the grounded
wires on one side of the outlet box and the
ungrounded wires on the other side of the
outlet box.
Wire Nut
Fig. 10
