Hanging The Fan
5. Back out the set screw on the hanger bracket.
6. Feed the 3 wires through the hanger bracket assembly and screw the hanger bracket onto the
hanger pipe until tight (at least 3 turns) (see Fig, 6).
7. Use pliers to tighten both the hanger bracket assembly and the hanger pipe together.
8. Tighten the set screw in the motor housing and the hanger bracket assembly (see Fig 7).

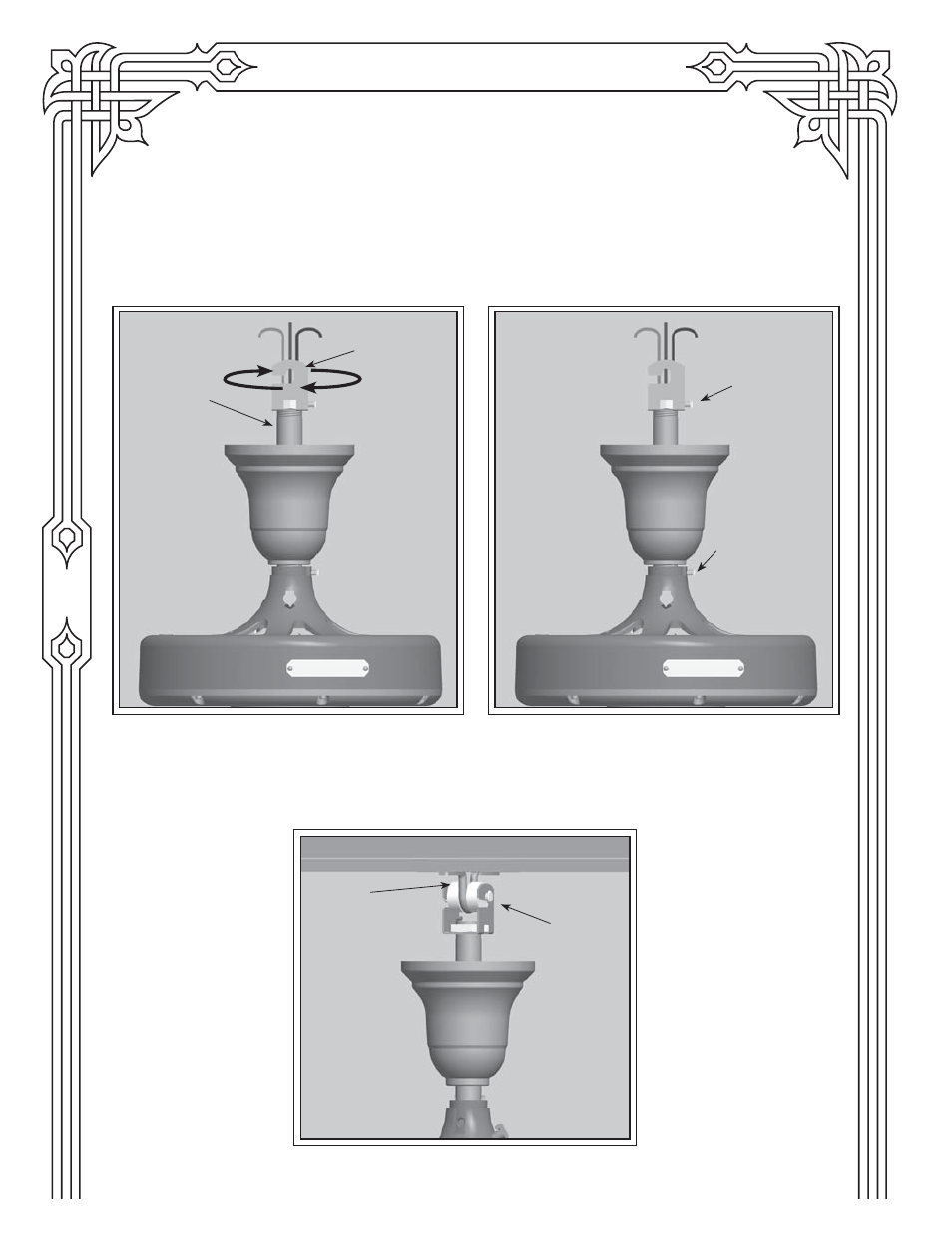

Fig. 6 Fig. 7
9. Be sure that the pin is centered in the rubber bushing.
10. Lift the fan by the motor housing, hook the hanger bracket assembly onto the rubber bushing
and pin. Make sure both ends of the pin are outside the hanger bracket assembly (see Fig 8).
Fig. 8
Hanger
Bracket
Assembly
Hanger
Bracket
Motor Housing
Set Screw
Hanger
Bracket
Set Screw
Rubber
Bushing
and Pin
Hanger
Pipe
